LT-160 Automatic Desktop Conveyor Table and similar items

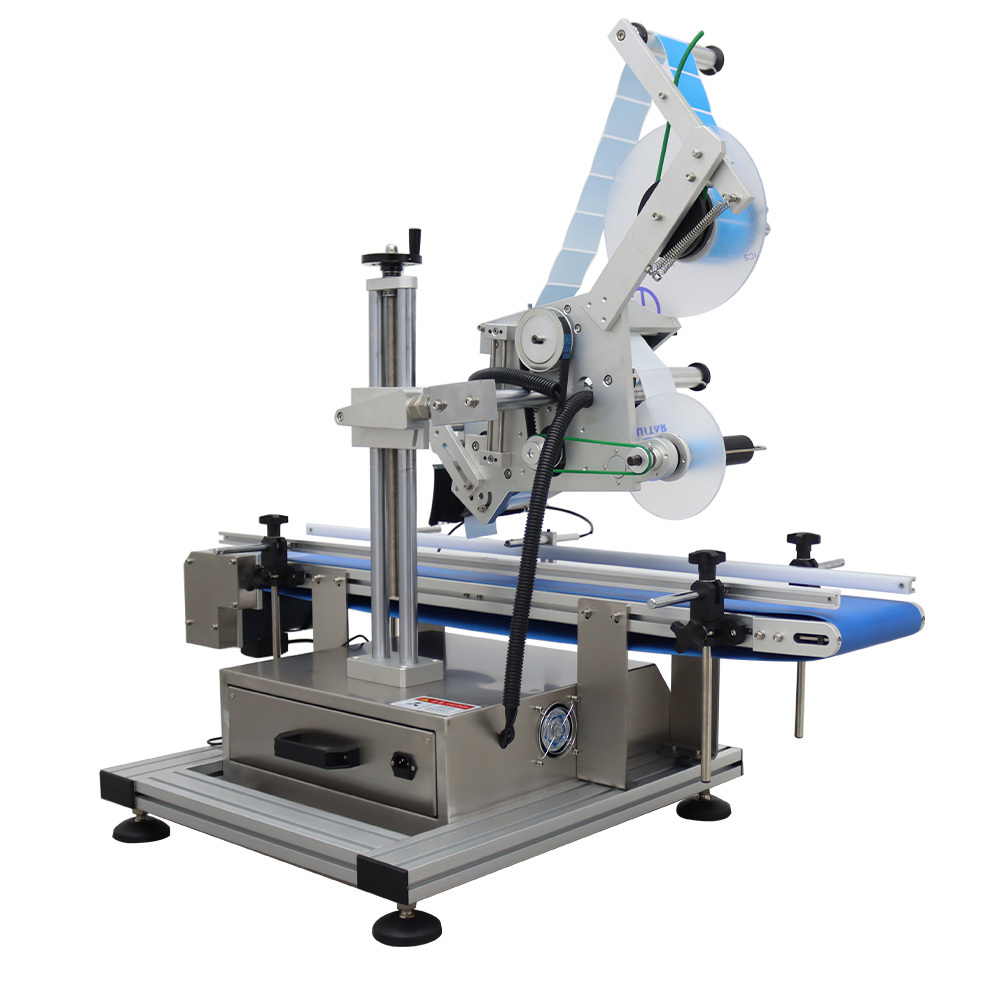

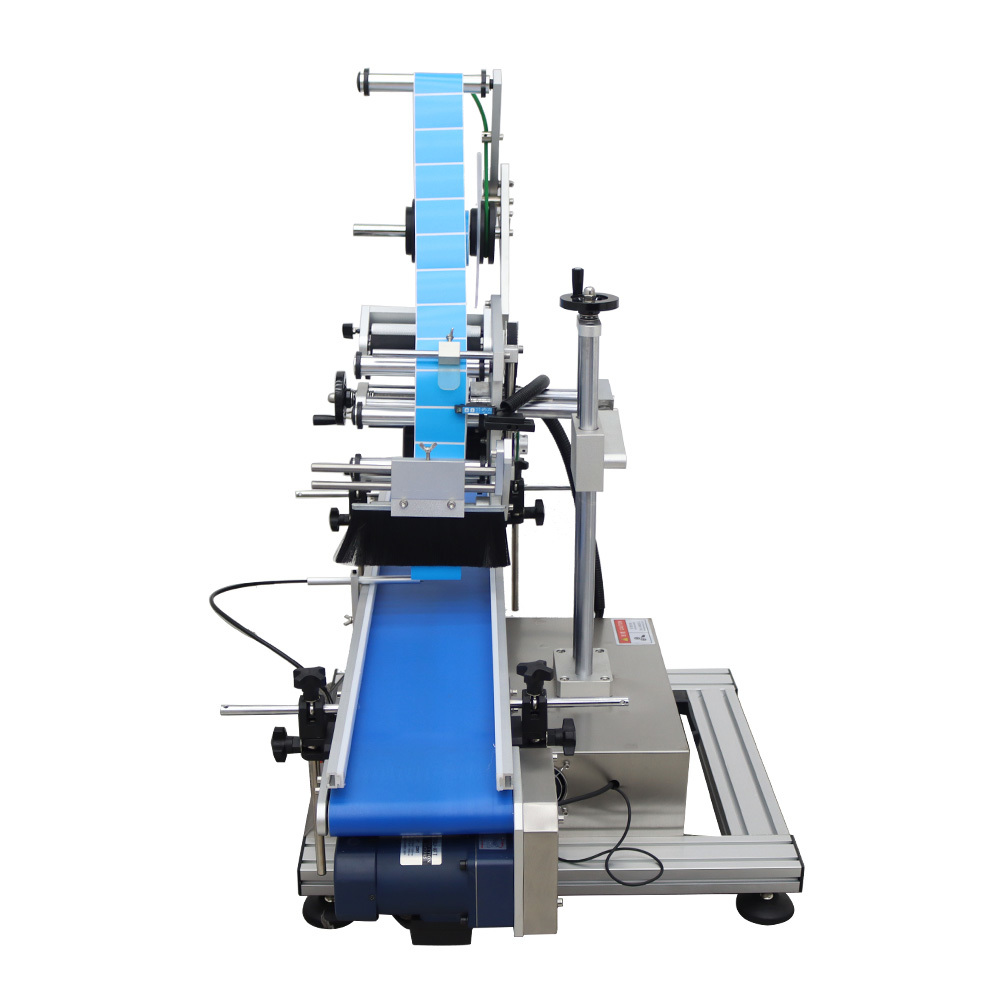

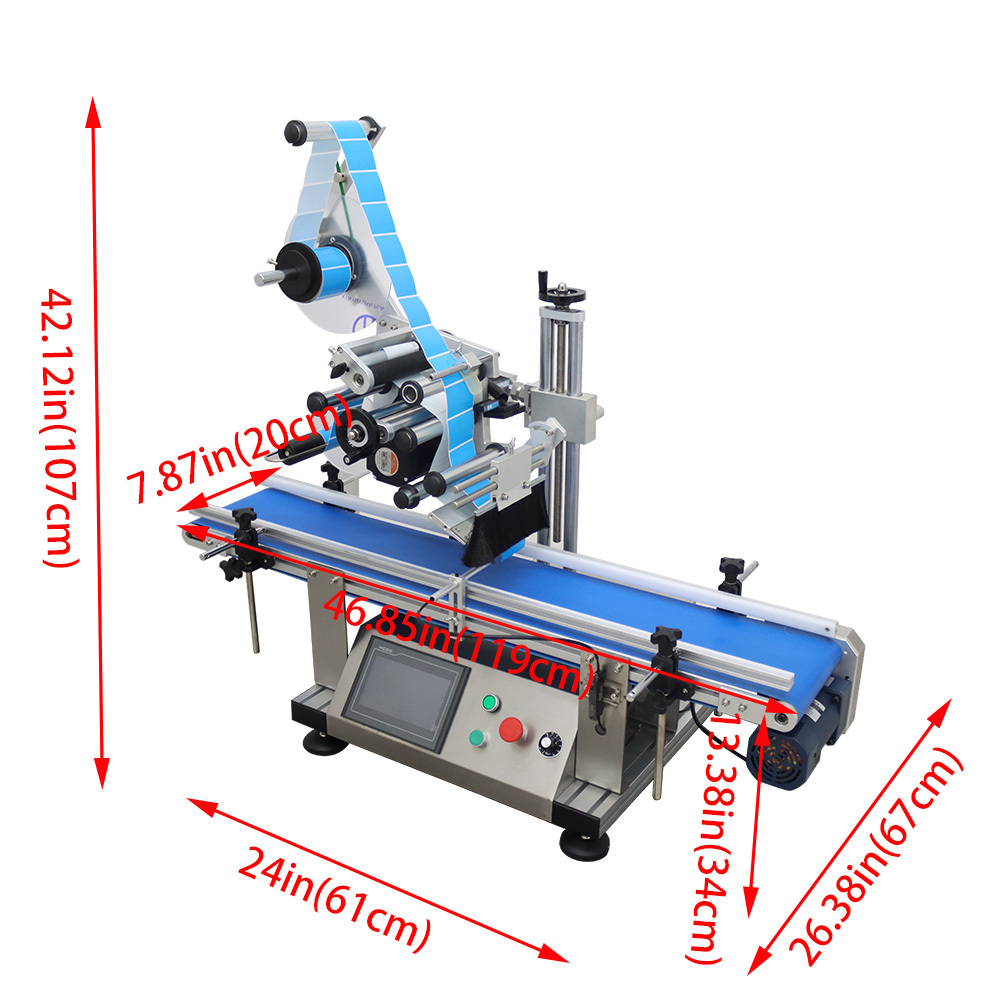

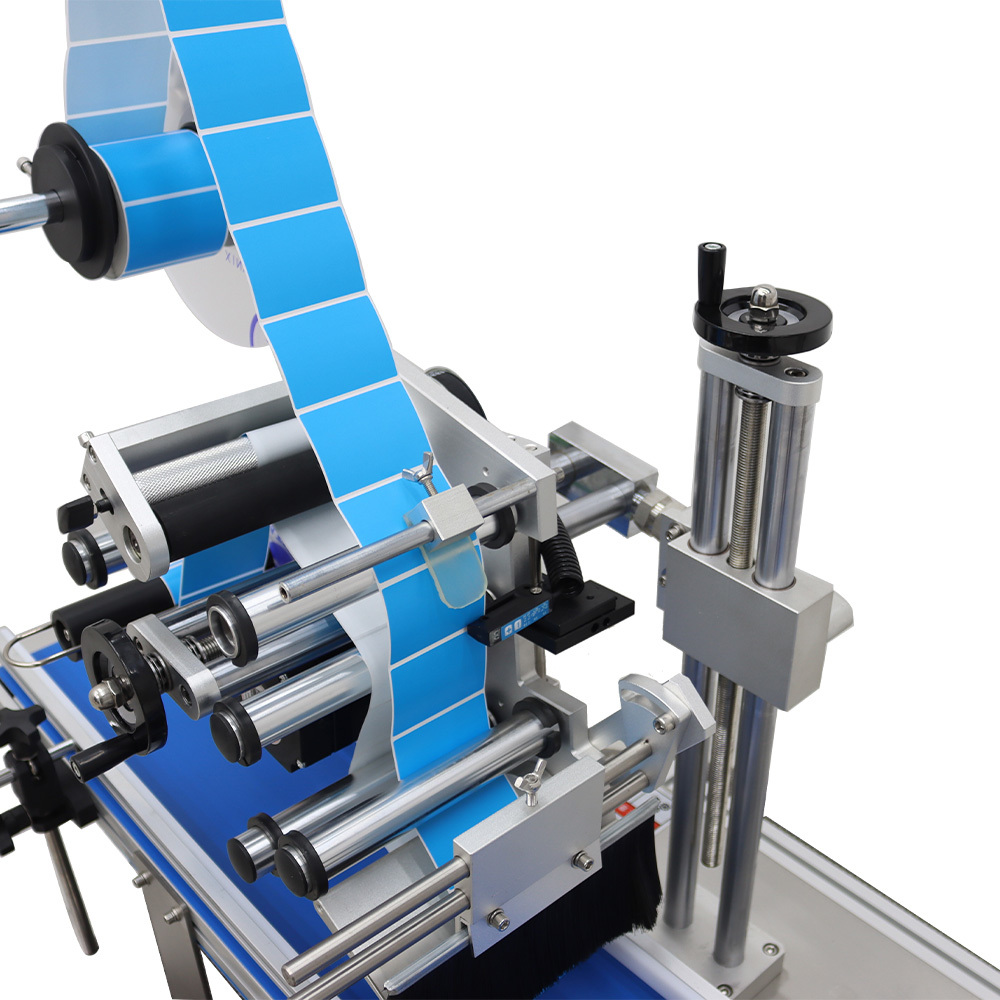

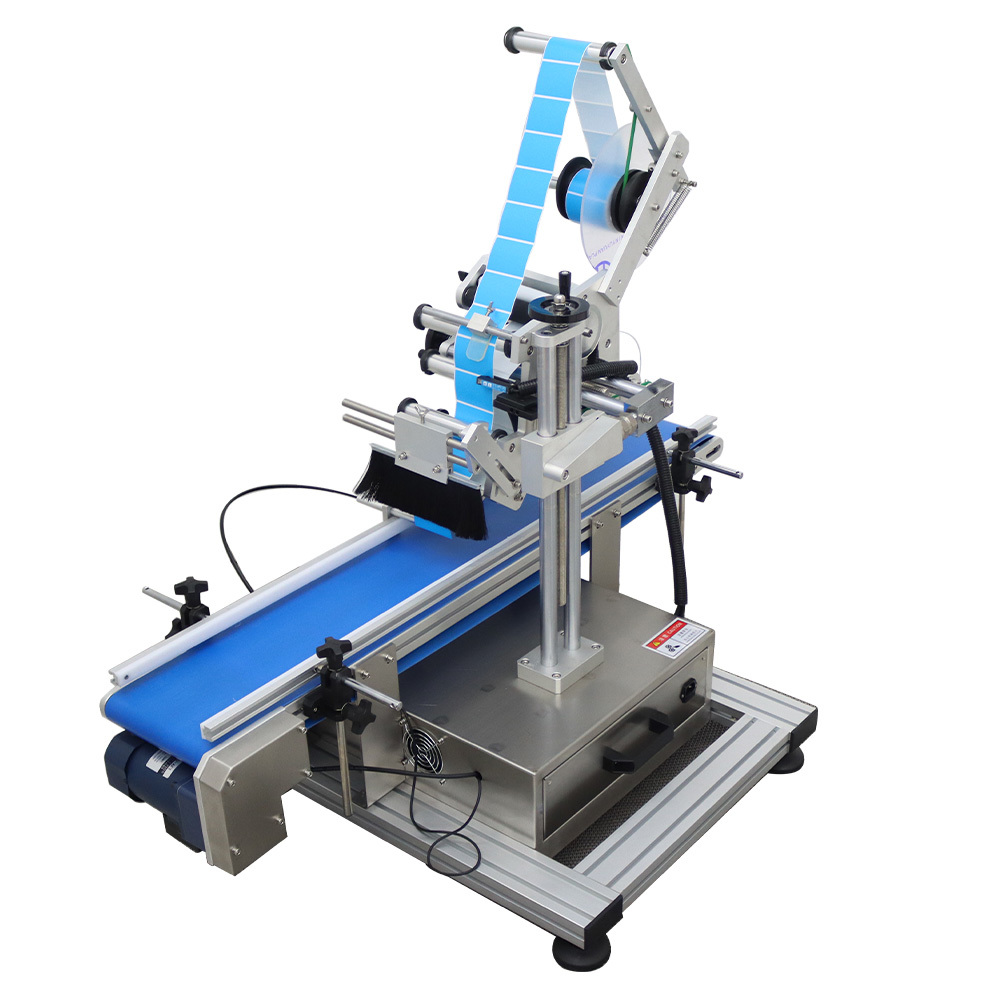

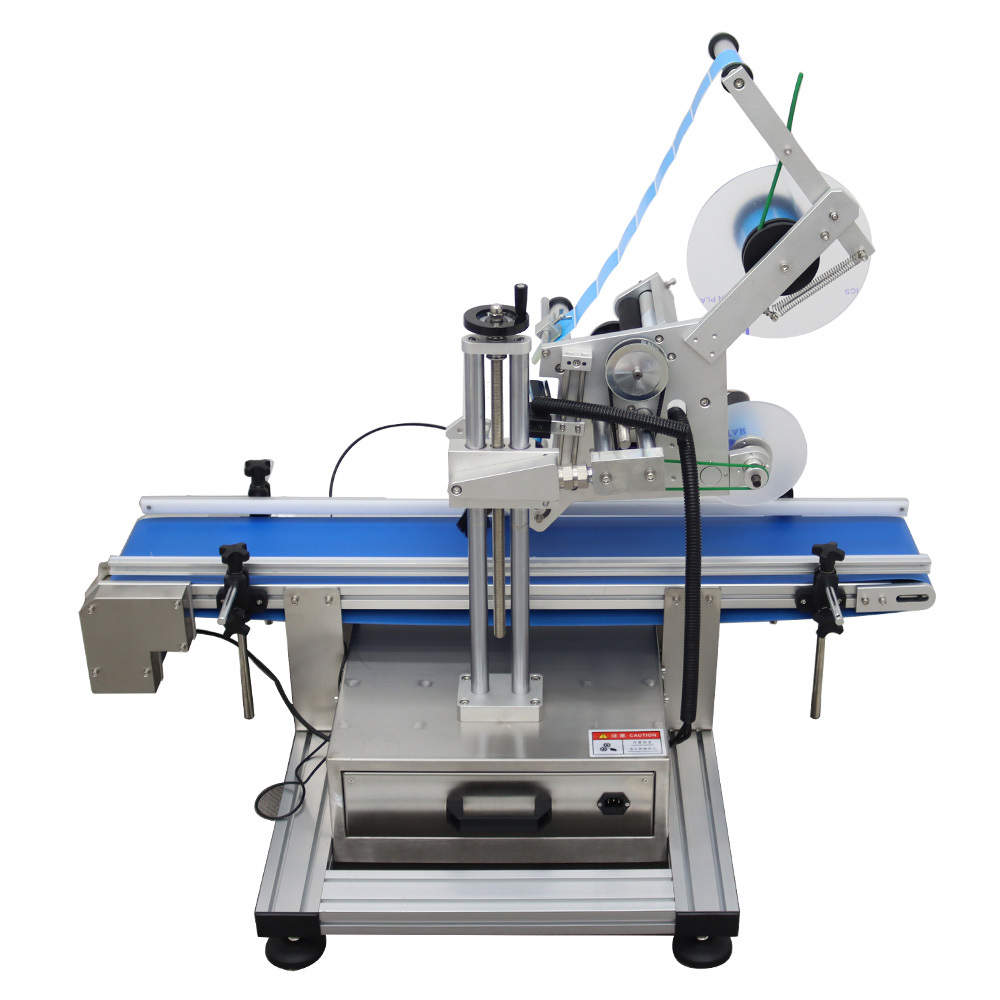

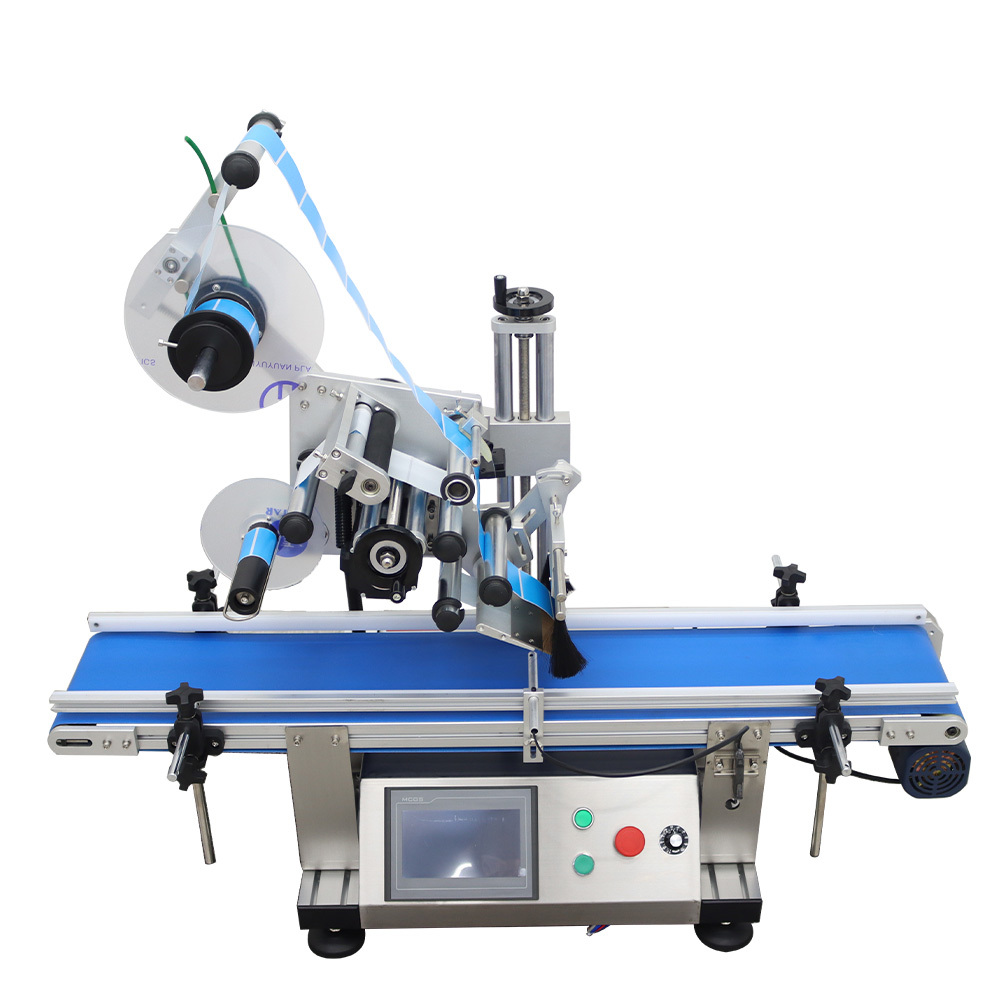

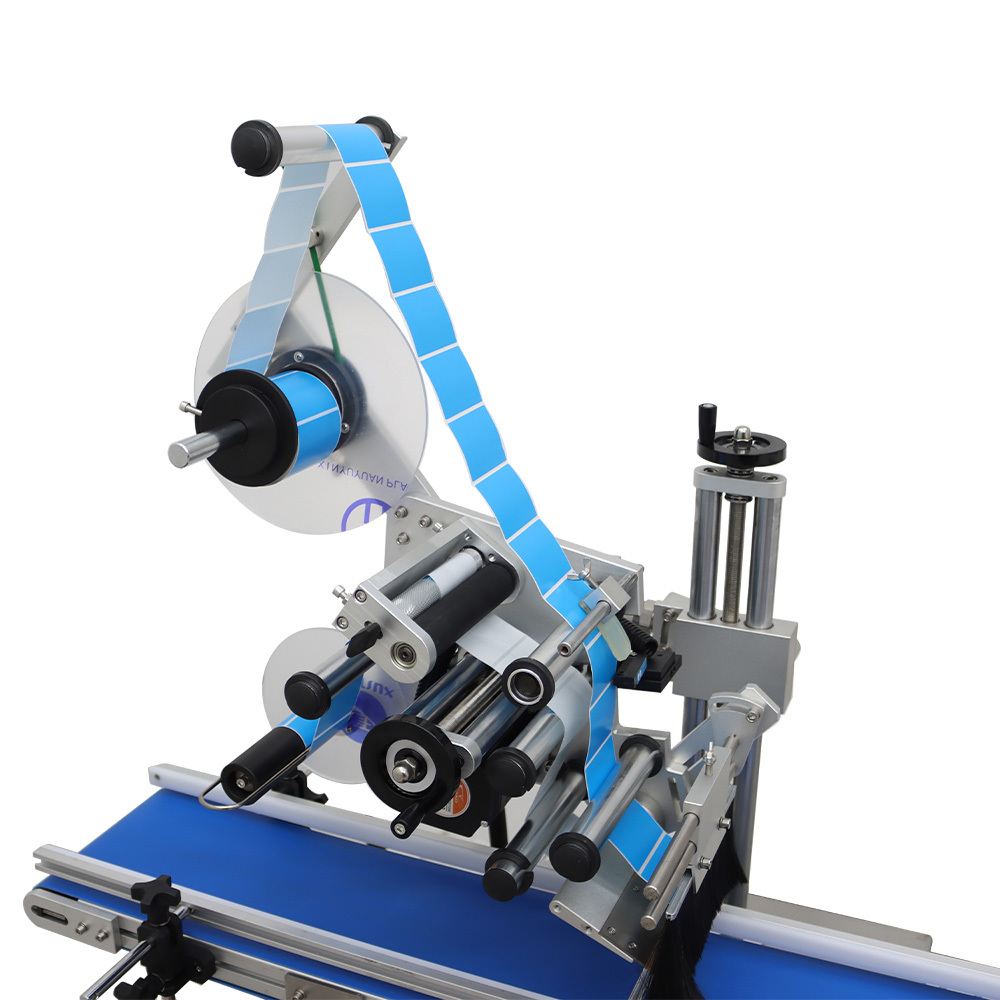

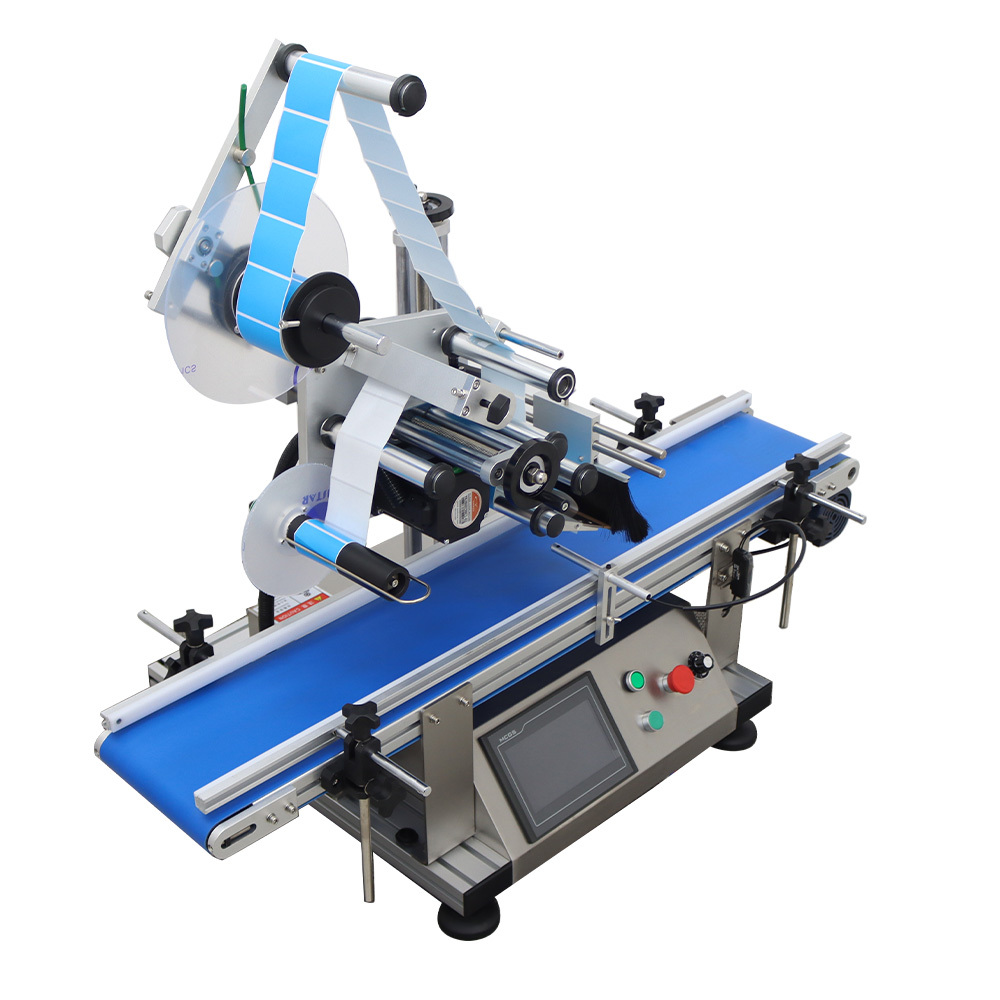

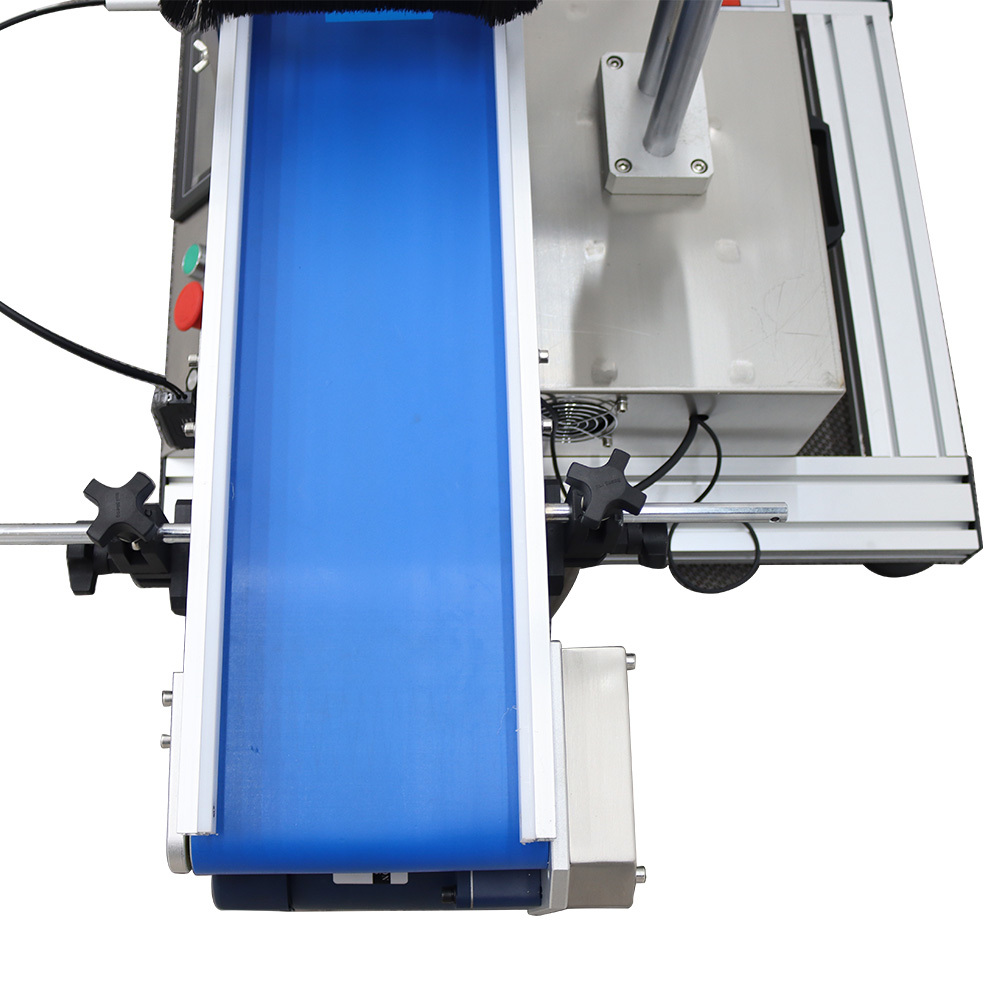

LT-160 Automatic Desktop Conveyor Table Plane Labeling Machine This machine is beautiful, intelligent, high pass rate. It is suitable for labeling of cosmetics, beverage, medicine, food, department stores and other industries. The design of this machine is novel and unique, and the operation and adjustment are very convenient. The operator only needs to place the item on the conveyor belt, and when the item needs to be labeled moves forward, the cursor detects the item and automatically labels and marks it. It can be used for both stand-alone production and online production. Product parameter: Voltage: 110V/60Hz Power 400W Material: The surface is stainless steel Conveyor width: 7.87in(20cm) Conveyor belt length: 46.85IN(119CM) Label inner diameter: 2.9in(7.4cm) Label outer diameter: 9.8in(25cm) Label out: left bid Output speed: 25-50PCS/min (Depending on the bottle size and label length) Diameter of applicable articles: 1.57-6.3in(4-16cm) Applicable product height: ?7.87in(?20cm) Label height: 1.57-5.9in(4-15cm) Label length: 0.78-7.08in(2-18cm) Precision: 0.039in?1mm) Package: Export wooden case Product Analysis: 1. Label volume 2. Marking sensor 3. Label the whole lifting handwheel 4. Smooth the brush 5. Conveyor belt 6. Bottle sensor controller 7. Conveying motor 8. Conveyor belt governor 9. Emergency stop 10. Power display 11. Start 12. Control the screen 13. Bottle sensor 14. Guardrail bracket adjustment knob 15. Receiving roller 16. Head adjustable hand wheel 17. Clamp the label hand wheel (correctly installed after the label finally need to tighten this knob) ? Feature: Multi-rod spiral positioning prevents deviation and makes the sheet more accurate. Add a smoothing brush to help the label fit the item better. Label adjusting handle Adjust the two handles clockwise to make the whole label move forward and upward. The label object is sensitive to inspection, and the labeling efficiency is greatly improved. Photo-electric detection label, and the label will be released immediately when the bottle is detected to pass. This machine is equipped with a fiber optic amplifier, which can be adjusted by adjusting the fiber optic amplifier when the photosensitive eye cannot sense the product well. This machine is equipped with a touch screen display, which allows customers to set relevant data according to their needs, making it more convenient and efficient. This machine is equipped with an emergency stop button, which can stop the operation of the machine with one click in case of any emergency, making it safer and more reliable. This machine is equipped with a high-quality conveyor belt motor, which is more durable. The machine is equipped with a wider conveyor belt to use a wider range of products. The machine is equipped with guardrail adjusting knob, customers can adjust the height of the guardrail according to the size of the labeled items. Product safety precautions: To ensure safe production, please read the following precautions carefully: 1. Use the power supply that meets the requirements of the machine. 2. After turning off the power switch, there is still voltage in some circuits in the electrical control of the machine. When servicing the control circuit, be sure to unplug the power cord. 3. Do not touch the rollers with your hands during machine operation, and pay attention to personal safety. 4. When the machine has problems, press the emergency stop button directly to suspend all work. 5.Do not touch the photoelectric induction eye with your hands during machine operation to prevent the machine from missensing and mislabeling. ? Details: Advantages: 1. The machine is efficient and convenient to use; 2. The machine automatically labels, saving manpower and material resources; 3. This machine has wide applicability and stable performance; 4. This machine is equipped with intelligent touch control screen, which is more convenient to set data parameters; 5. This machine can be used with capping machine and bottle sorting machine. 6.The components of each adjustment position are precisely matched, and the height, width and width of the components can be easily adjusted without the use of professional tools. The machine operation is simple and simple./font ? Product display: Item include: LT-160 Automatic Desktop Conveyor Table Plane Labeling Machine*1 ? Item Number: 160249 You can make order with no worry. Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
