Leeson 132253.00 WattSaver Motor 3HP 575V and 49 similar items

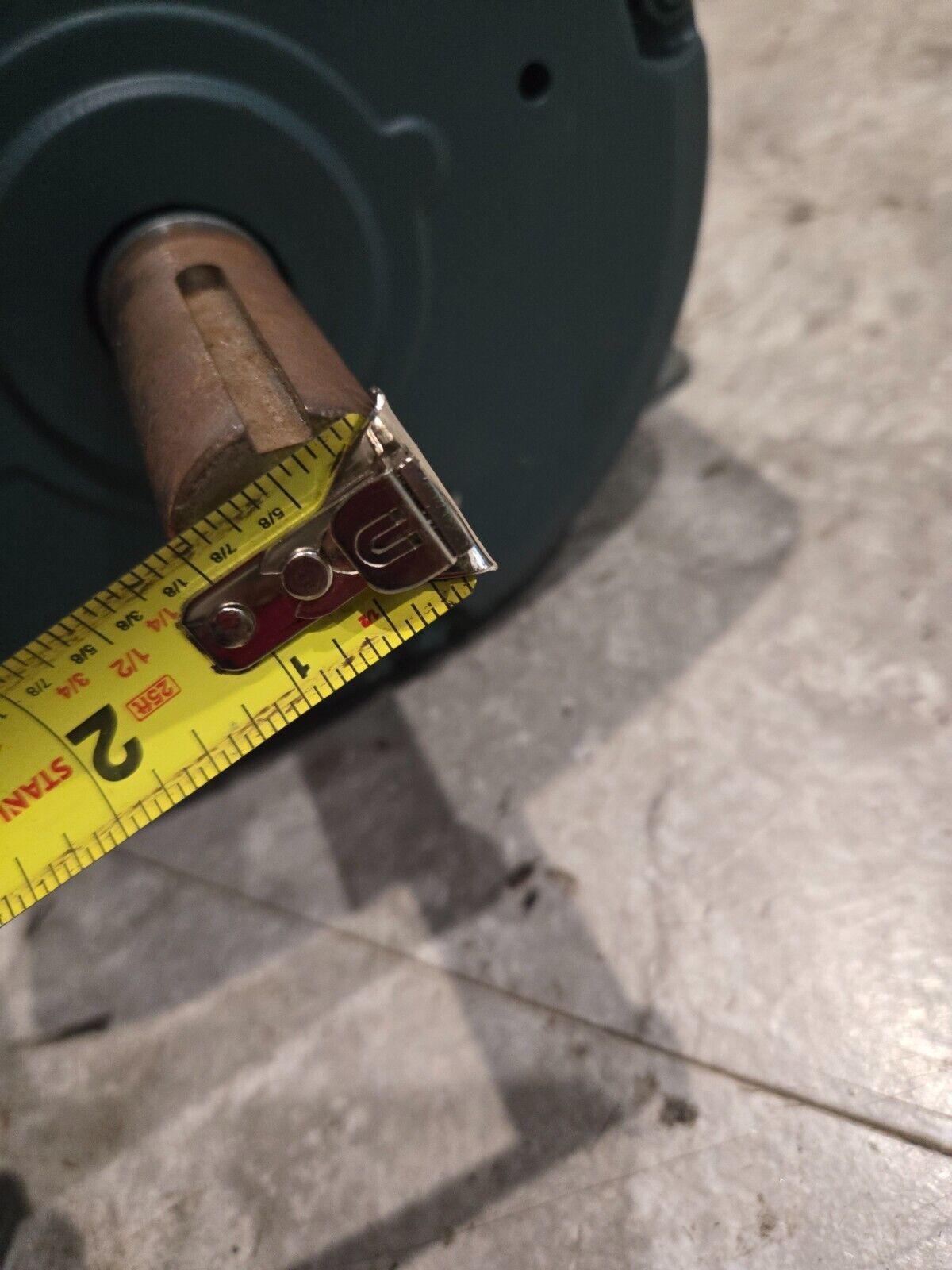

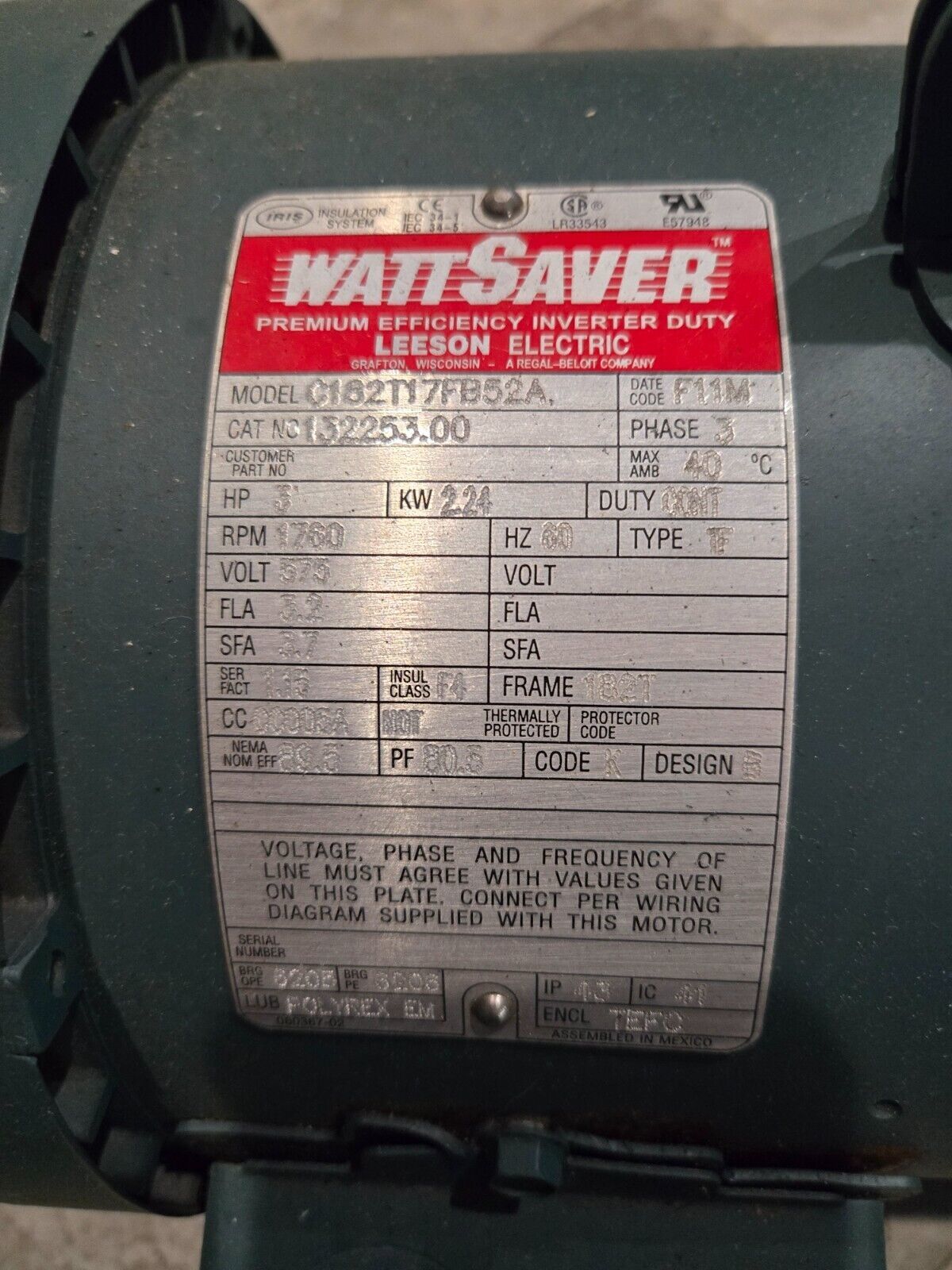

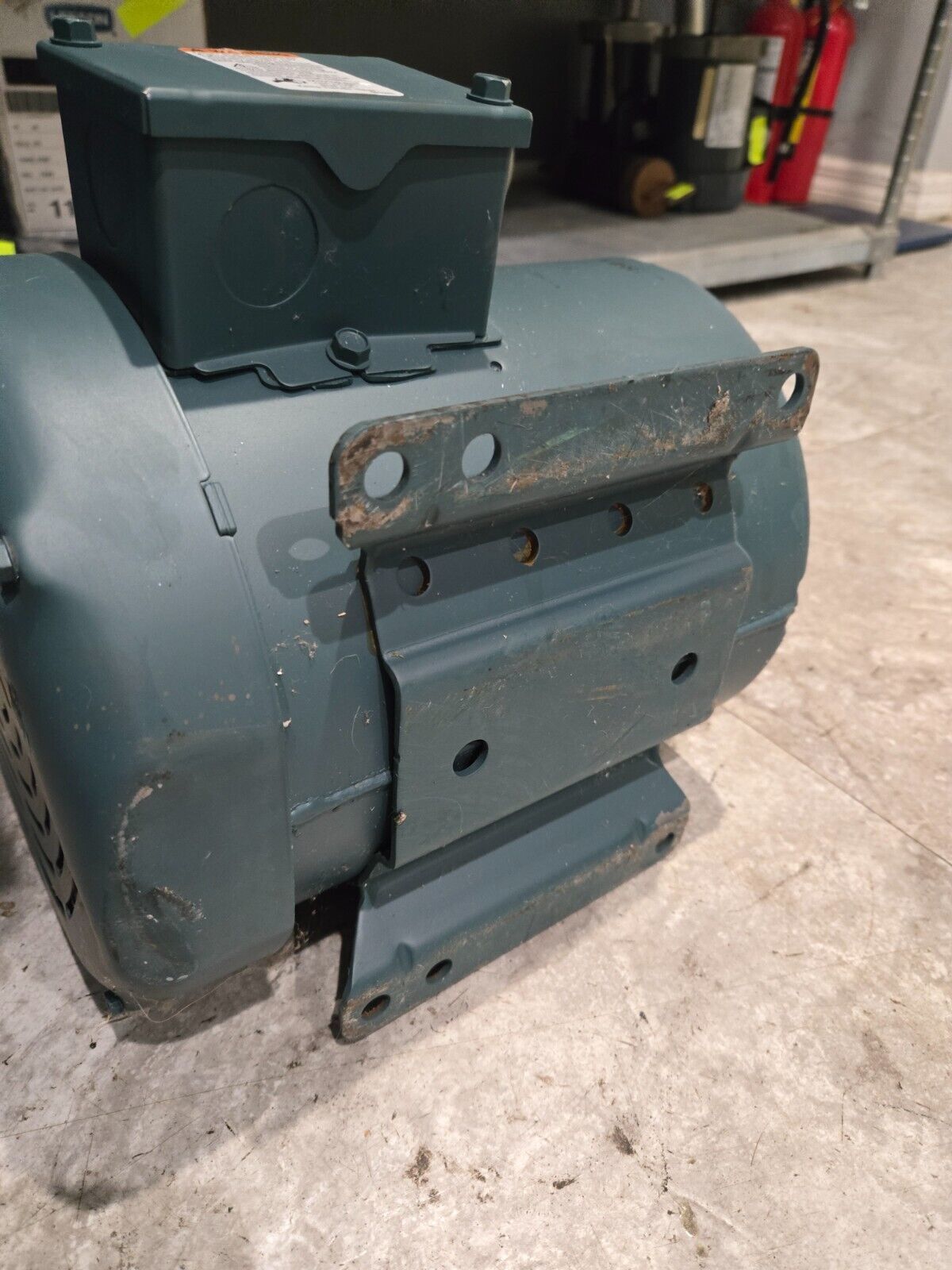

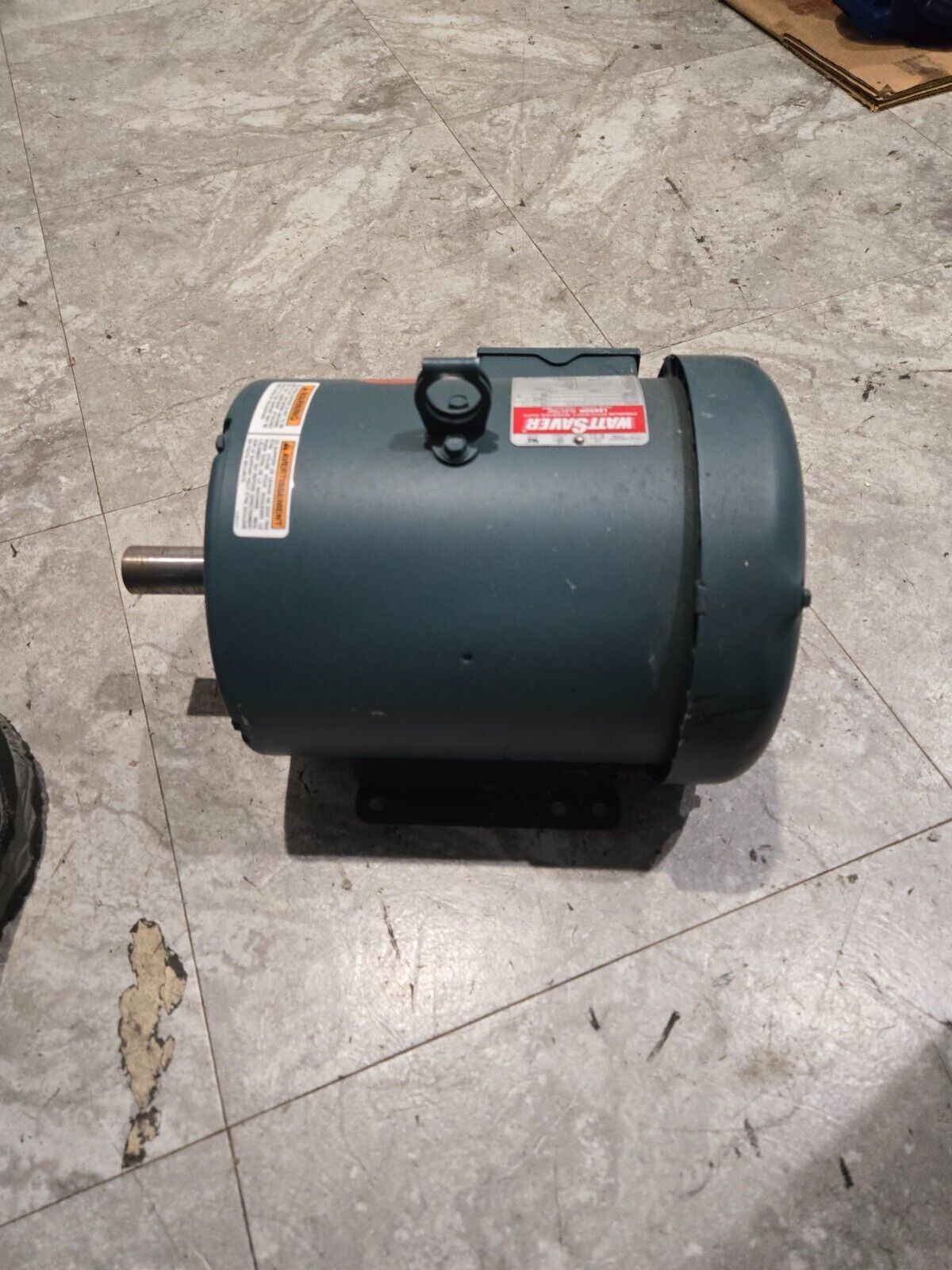

Leeson 132253.00 WattSaver Motor 3HP 224KW 3PH 1760RPM 145TEFC C182T17FB52A Leeson 132253.00 WattSaver Motor 3HP 224KW 3PH 1760RPM MODEL C182T17FB52A NEW $899 LEESON 132253.00 Engineering Data Volts 575 Volts Volts F.L. Amps 3.2 F.L. Amps F.L. Amps S. F Amps 3.7 S. F Amps S. F Amps RPM 1800 Hertz 60 HP 3 Duty CONTINUOUS TYPE TF KW 2.24 Frame 182T Serv. Factor 1.15 Phase 3 Max Amb 40 Design B Code K Insul Class F Protection NOT Therm.Prot. Eff 100% 89.5 Eff 75% PF 80.5 UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205 CC Number CC005A CE Yes Bearing PE 6206 Load Type Inverter Type Speed Range NONE Motor Wt. 80 LB Enclosure TEFC Lubrication POLYREX EM Nameplate 081299 Mounting RIGID Rotation REV Assembly 180-001 Shaft Dia. 1 1/8 IN Ext. Diag. 005102.01 Cust Part No Outline 035465-850 Ext. Diag2 Packaging B Winding T84174 Carton Label Leeson Wattsaver GROUP: 4 Iris Paint GREEN - LEESON WATTSAVER Test Card 01 Form Factor RMS Amps Const Torque Speed Range Torque Peak AB Code Peak@DegC Resistance Connection Rework Status Rework TYPE Hazardous Loc NONE Brake Motors Explosion Proof Temp Op Code FORCE Class GROUP: VDC Class GROUP: ADC Brake Coil OHMs @25 C Performance Torque UOM LB-FT Inertia (WK?) .383 LB-FT^2 Torque 9(Full Load) 35.2(Break Down) 21.5(Pull Up) 22(Locked Rotor) CURRENT (amps) 3.1(Full Load) 0(Break Down) 0(Pull Up) 27(Locked Rotor) Efficiency (%) 0(Full Load) 89.6(75% Load) 87.7(50% Load) 80.8(25% Load) PowerFactor 0(Full Load) 73.6(75% Load) 33.9(50% Load) 41.4(25% Load) Load Curve Data @60 Hz, 575 Volts, 3 Horsepower Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise 0.0 1.52 0.105 1798 0.0 0.0 6.9 0.0 - 0.25 1.68 0.693 1792 2.2 80.8 41.4 0.0 - 0.5 2.05 0.693 1792 4.42 87.7 33.9 0.0 - 0.75 2.55 1.87 1777 6.64 89.6 73.6 0.0 - 1.0 3.12 2.5 1771 8.9 89.6 80.5 39.0 22.0 1.15 3.52 2.86 1766 10.26 90.0 81.6 47.0 24.0 SOURCE: CALCULATED GROUP: 4
