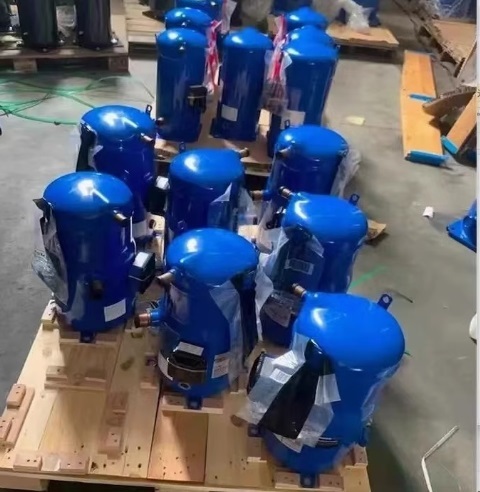

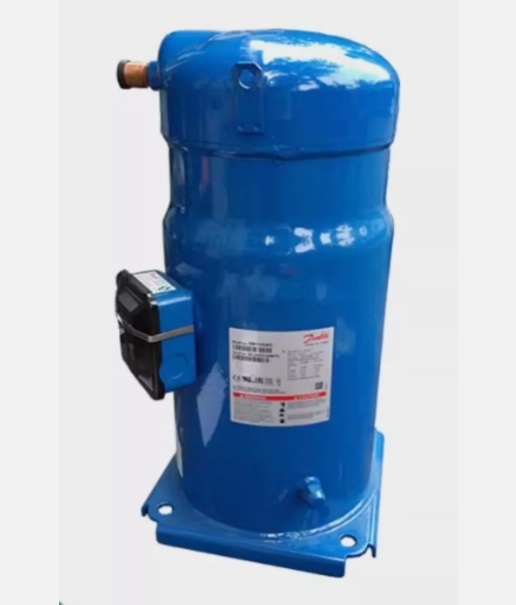

New Danfoss Fixed speed Scroll compressor and 50 similar items

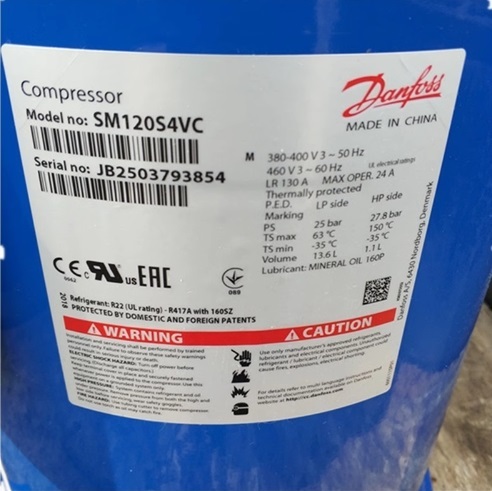

Refrigerants: R22, Segment usage: Air Conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack Gross weight 79.34 Kilogram Net weight 73 Kilogram Volume 0.23 Cubic meter EAN 5702428839402 Approval CE UL UKCA Brand technique Scroll compressor Capacity control Fixed speed CE evaluated Yes China RoHS compliance Yes exceed limitations Colour Blue Compressor power supply [V] 380-415/3/50 460/3/60 Configuration code Single Connection type Brazed Contain batteries No Description SM120-4 Diameter [mm] 254 mm Discharge connection height [mm] 515 mm Discharge connection pipe size [in] 7/8 in Discharge connection size [in] 7/8 in Drawing number 8552037b Economizer No EU RoHS compliance Yes with exemptions EU RoHS exemption clause 7(c)-I 6(a) 6(a)-I 6(c) 7(a) 8(b) Factory HP [bar] 33 bar Factory LP [bar] 25 bar Family SM Fitting standard ODF Frequency [Hz] 50/60 Gauge port HP None Gauge port LP Schrader Glass mounting Threaded Glass torque [Nm] 50 N-m GP LP torque [Nm] 15 N-m High Side TS Max 150 C High Side TS Min -35 C High Side Volume 1.1 L High value of nominal voltage at 50Hz [V] 400 V High value of nominal voltage at 60Hz [V] 460 V High value of voltage range at 50Hz [V] 440 V High value of voltage range at 60Hz [V] 506 V IP protection class IP54 (with cable gland) Low Side TS Max 63 C Low Side TS Min -35 C Low Side Volume 13.6 L Low value of nominal voltage at 50Hz [V] 380 V Low value of nominal voltage at 60Hz [V] 460 V Low value of voltage range at 50Hz [V] 342 V Low value of voltage range at 60Hz [V] 414 V LRA 130 A Max pressure (PS) - high side 30.2 bar Max pressure (PS) - low side 25 bar Maximum Operating Current [MOC] 24 A MCC 29 A Model number SM120S4VC Motor protection Internal overload protector Mounting torque [Nm] 21 N-m Network power supply [V/Ph/Hz] 380-415/3/50 460/3/60 Number of starts per hour [Max] 12 Oil charge [L] 3.25 L Oil equalization 3/8'' flare SAE Oil equalization torque [Nm] 48 N-m Oil reference 160P Oil type Mineral Packaging height [mm] 596 mm Packaging length [mm] 470 mm Packaging weight [Kg] 78 kg Packaging width [mm] 370 mm Packing format Single pack Packing quantity 1 Phase 3 Power connections Screw 4.8 mm Product Group Hermetic compressors Product name SM REACH Candidate List substances 0.1 Lead (CAS no. 7439-92-1) Refrigerant charge [kg] [Max] 10 kg Refrigerants R22 RLA 20.7 A Rotational speed at 50Hz [rpm] 2900 rpm Rotational speed at 60Hz [rpm] 3500 rpm SCIP dossier no. 2e9b0776-281a-4205-bf1f-dbeea526b31d SCIP dossier product name SM084/SM090/SM100/SM110/SM120/SM148/SM161/SZ084/SZ090/SZ100/SZ110/SZ120/SZ148/SZ161 Segment usage Air Conditioning Shipped instructions Installation instructions Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers Shipped oil Initial oil charge Suction connection height [mm] 178 mm Suction connection material - Suction connection pipe size [in] 1 3/8 in Suction connection size [in] 1 3/8 in Swept volume [cm3] 166.6 cm Technology Scroll Test dif [bar] [Max] 24 bar Test HP [bar] [Max] 32 bar Test LP [bar] [Max] 25 bar Torque earth [Nm] 2 N-m Torque power [Nm] 3 N-m Total height [mm] 558 mm Type SM120 U.S. EPA label For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only. UK RoHS compliance Yes with exemptions UK RoHS exemption clause 19 21 24 12 13 18 UL evaluated Yes Viscosity [cP] 32 cP Winding resistance for three-phase compressors with identical windings [Ohm] 1.05 Ohm
