2U 12-Bay SAS/SATA Backplane 08-062URBP17 and similar items

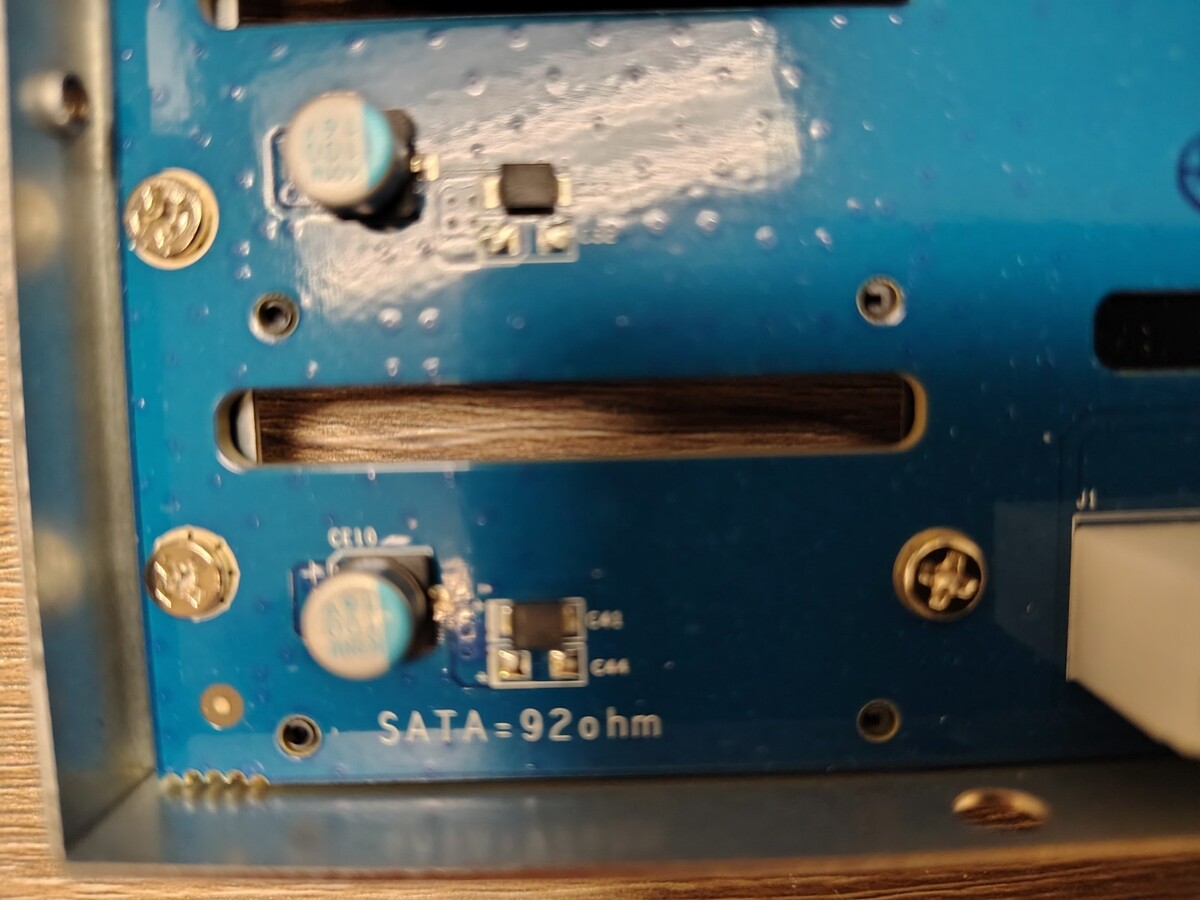

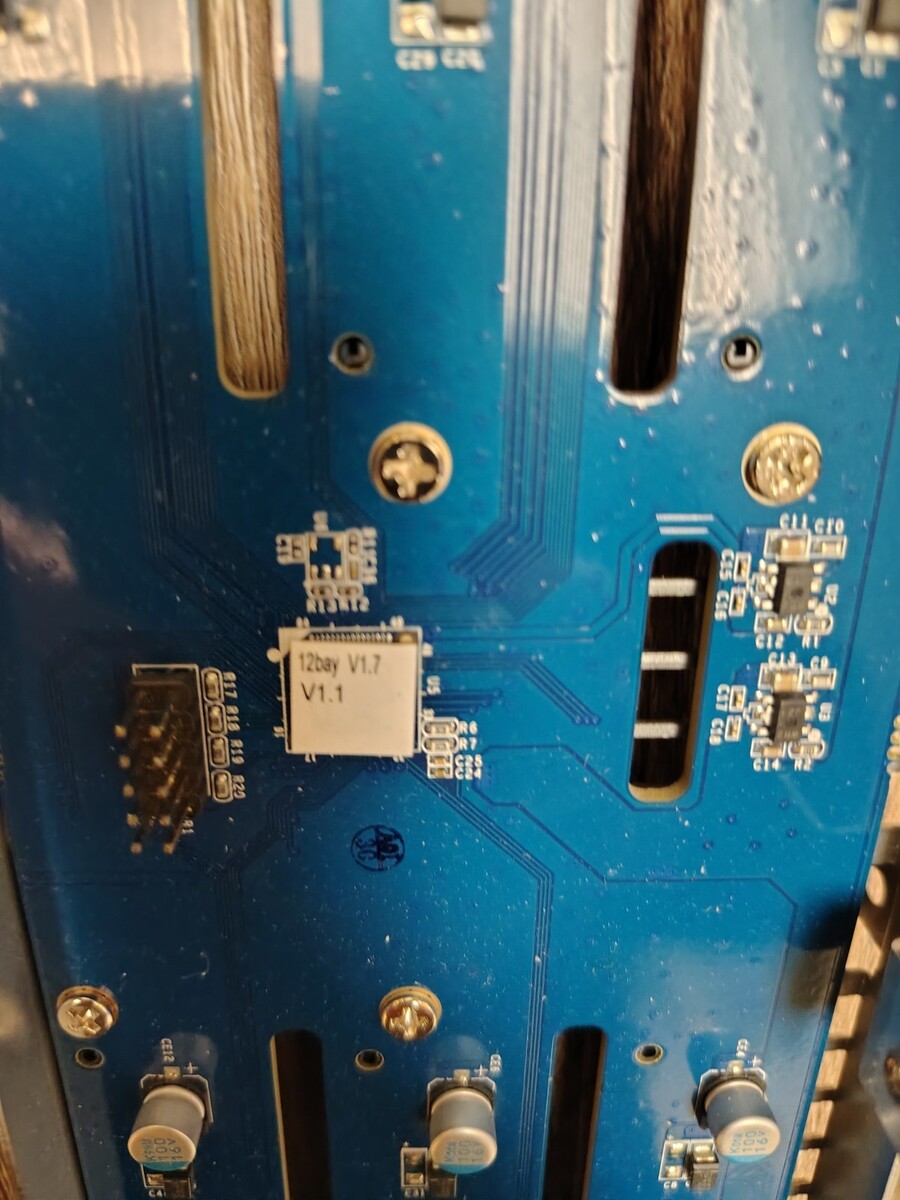

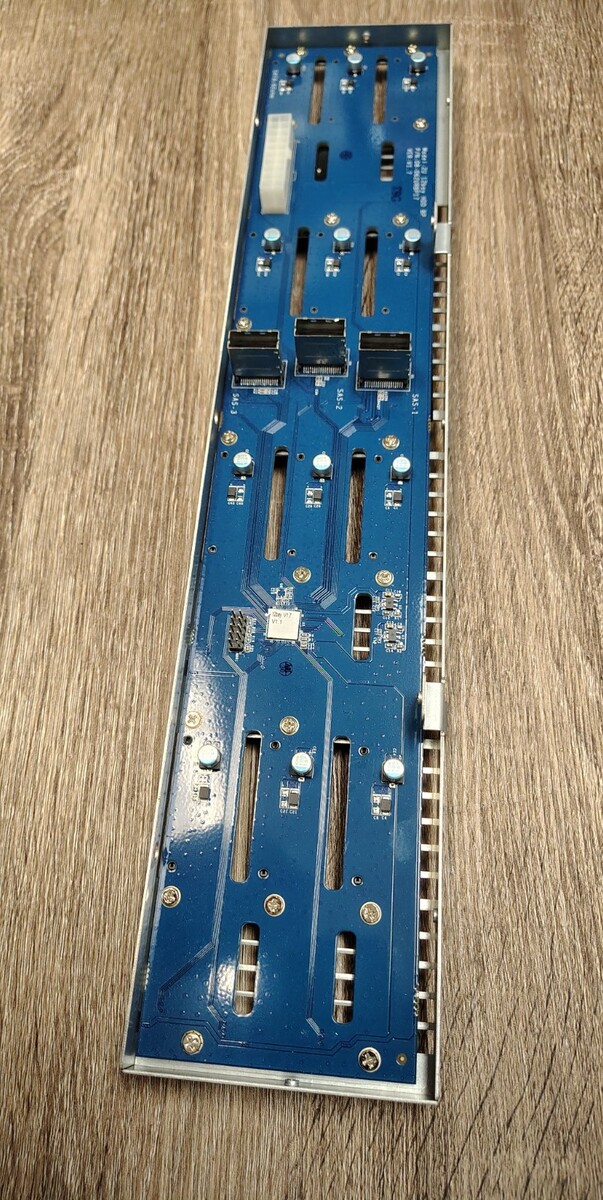

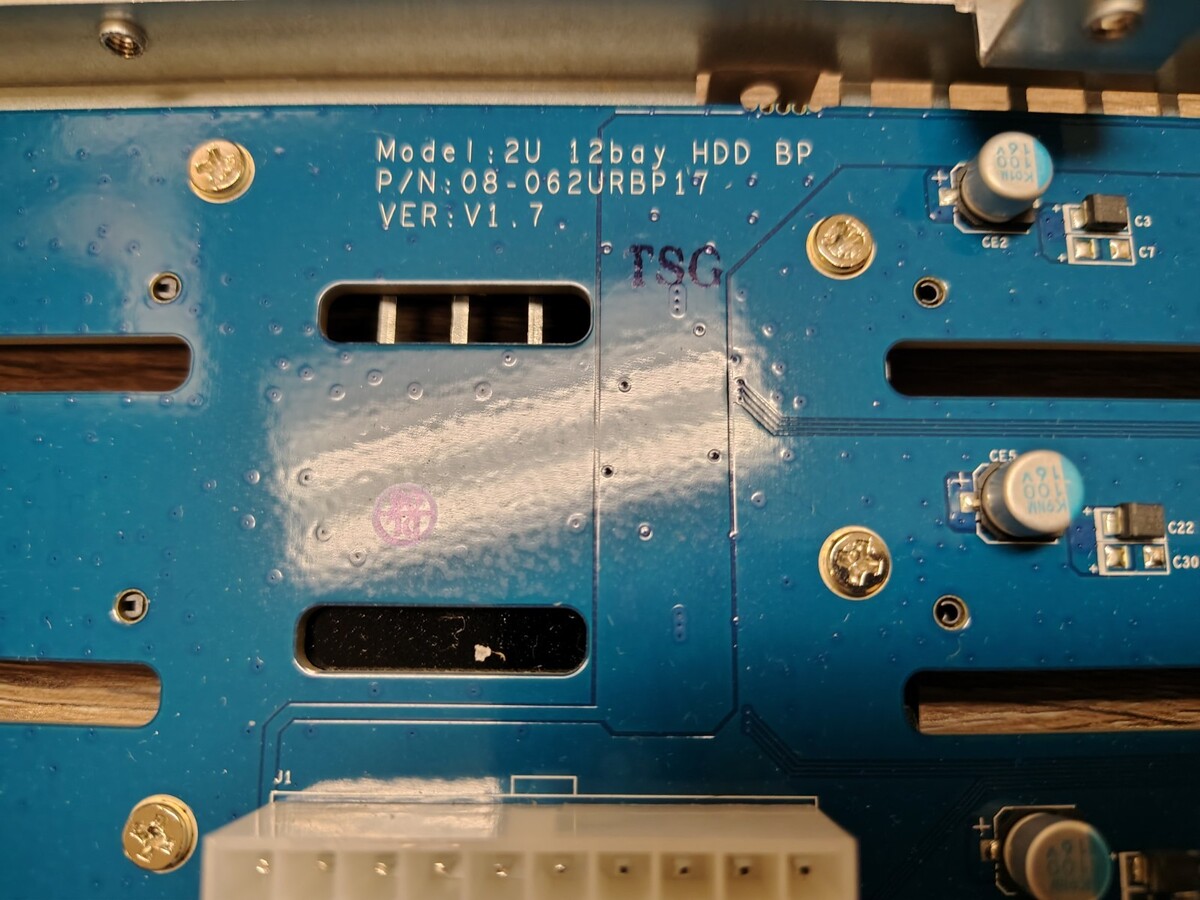

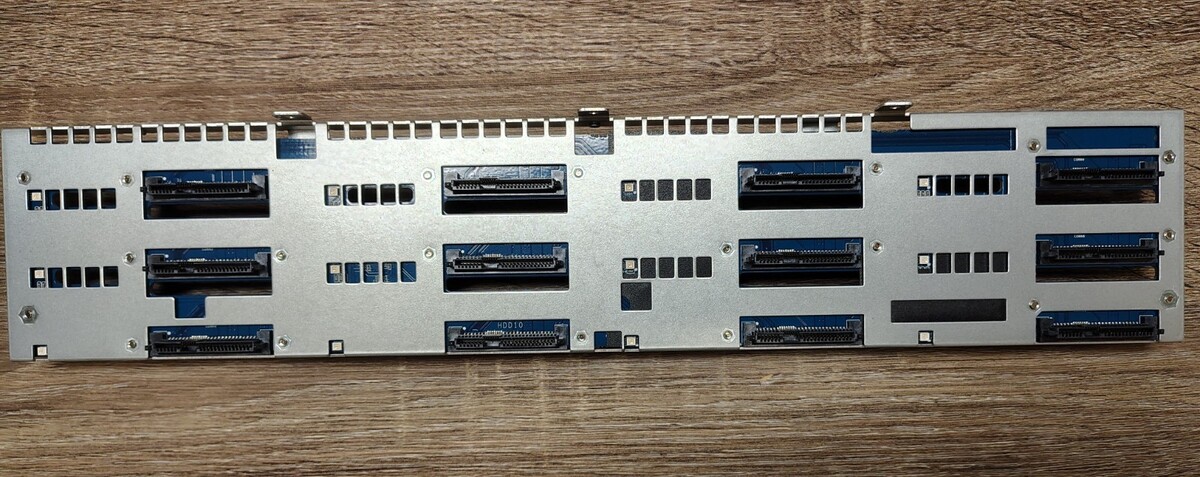

2U 12-Bay SAS/SATA Backplane 08-062URBP17 V1.7 Passive Up for sale is a 2U 12-bay SAS/SATA backplane, part number 08-062URBP17, version V1.7. This was pulled from a working server during decommission and is ideal for replacement, repair, or custom NAS/server builds. Item Details Item Type: 2U 12-Bay SAS/SATA Backplane Part Number: 08-062URBP17 Printed on PCB: 2U 12bay HDD BP Version: V1.7 Type: Passive backplane (no SAS expander) Drive Bays: Supports up to 12 SATA/SAS drives Host Ports: 3 Mini-SAS SFF-8087 (4 drives per port) Power: 1 4-pin Molex Condition: Used, pulled from working system Description This OEM/white-label 2U 12-bay backplane is designed for rackmount storage servers and chassis with twelve front-accessible drive bays. It provides power and signal routing for up to 12 SATA or SAS hard drives / SSDs. The board is a passive backplane (no SAS expander), so each SFF-8087 Mini-SAS connector directly connects to 4 drives. You will need a compatible HBA/RAID card with Mini-SAS internal ports and the appropriate cables to use this backplane. Features Supports up to 12 SATA or SAS 3.5"/2.5" drives (depending on chassis/trays) 3 Mini-SAS SFF-8087 inputs (4 drives per connector) 1 standard 4-pin Molex power input Passive design for simple, reliable operation Ideal for NAS builds, homelab servers, or replacement in 2U 12-bay chassis Compatibility This backplane came from a generic/OEM 2U storage chassis commonly used in enterprise and datacenter environments. It is suitable for: 2U rackmount chassis with 12 front drive bays Custom storage server and NAS builds Replacement backplane for similar 2U OEM enclosures Note: This is not branded as Dell, HP, Supermicro, etc. Please check the photos and connector layout to ensure it matches your chassis and use case. Condition Included Items Backplane was removed from a working system during decommission Visually inspected for obvious damage, bent pins, or cracks Includes backplane board only Cables, screws, trays, or chassis are NOT included *** PLEASE NOTE! Our store buys and sells a variety of new and used electronics, instruments, tools, antiques and many other items. We do our absolute best to thoroughly test all our merchandise and accurately describe and depict any flaw or defect we find. If you come across an issue that we have overlooked, please contact us - we will be happy to work with you to resolve the issue. *** We take our reputation seriously, we buy and sell online, so we understand the value of trust! Thanks for looking at our listing and supporting our small family business! SHELF: 36(bin) 2u backplane, 2u 12 bay backplane, sas sata backplane, hdd backplane, 08-062URBP17, v1.7 backplane, mini sas sff-8087 backplane, server backplane board, oem server parts, nas backplane, storage server, 12 bay sas sata, passive sas backplane, rackmount server parts
