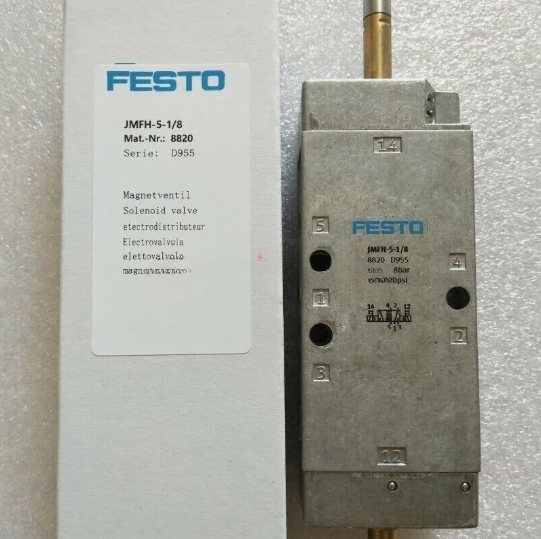

JMFH-5-1/8 Festo Electrical Solenoid Valve and similar items

JMFH-5-1/8 Festo Solenoid Valve Feature Value Valve function 5/2, bistable Actuation type Electrical Width 26 mm Standard nominal flow rate 600 l/min Pneumatic working port G1/8 Operating voltage Via solenoid coil, to be ordered separately Operating pressure 0.15 MPa ... 0.8 MPa Operating pressure 1.5 bar ... 8 bar Structural design Plate seat Certification c UL us - Recognized (OL) Degree of protection IP65 Nominal width 5 mm Width dimension 27 mm Exhaust air function With flow control option Sealing principle Soft Mounting position Any Manual override Detenting Type of control Pilot-controlled Flow direction Non-reversible Symbol 00995754 Lap Underlap Max. switching frequency 25 Hz Changeover time 10 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -20 C ... 60 C Temperature of medium -10 C ... 60 C Ambient temperature -5 C ... 40 C Product weight 260 g Electrical connection Via F coil, to be ordered separately One Year Warranty
