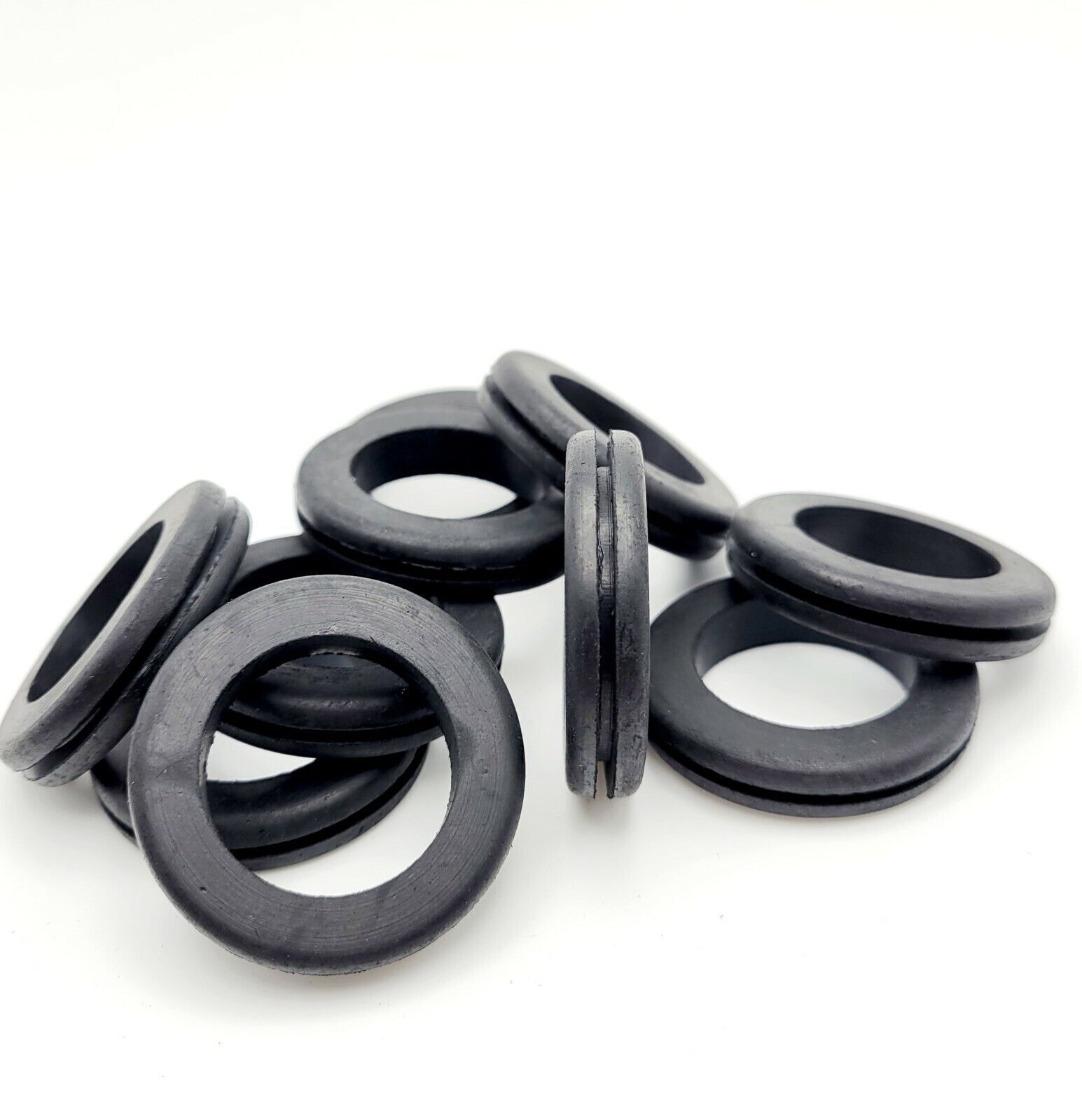

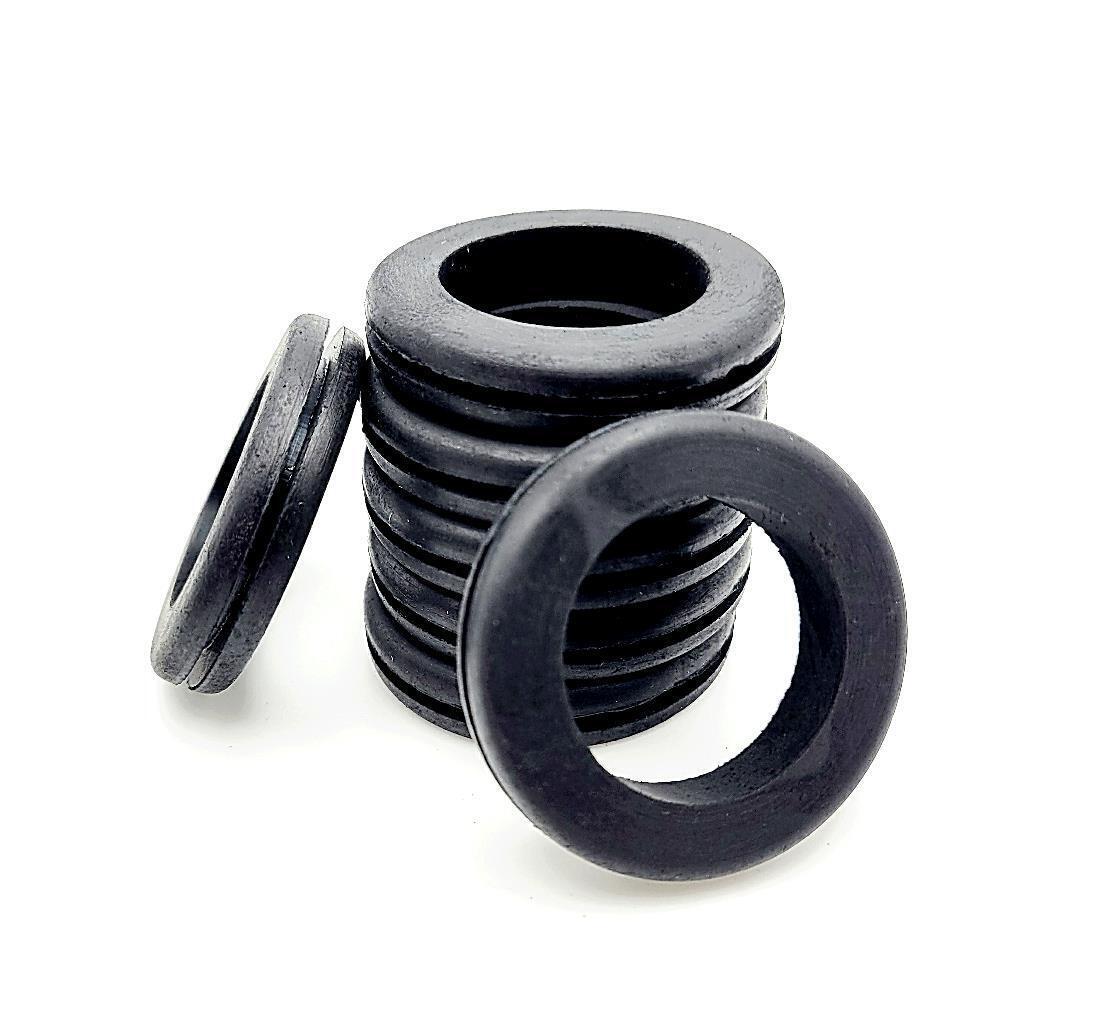

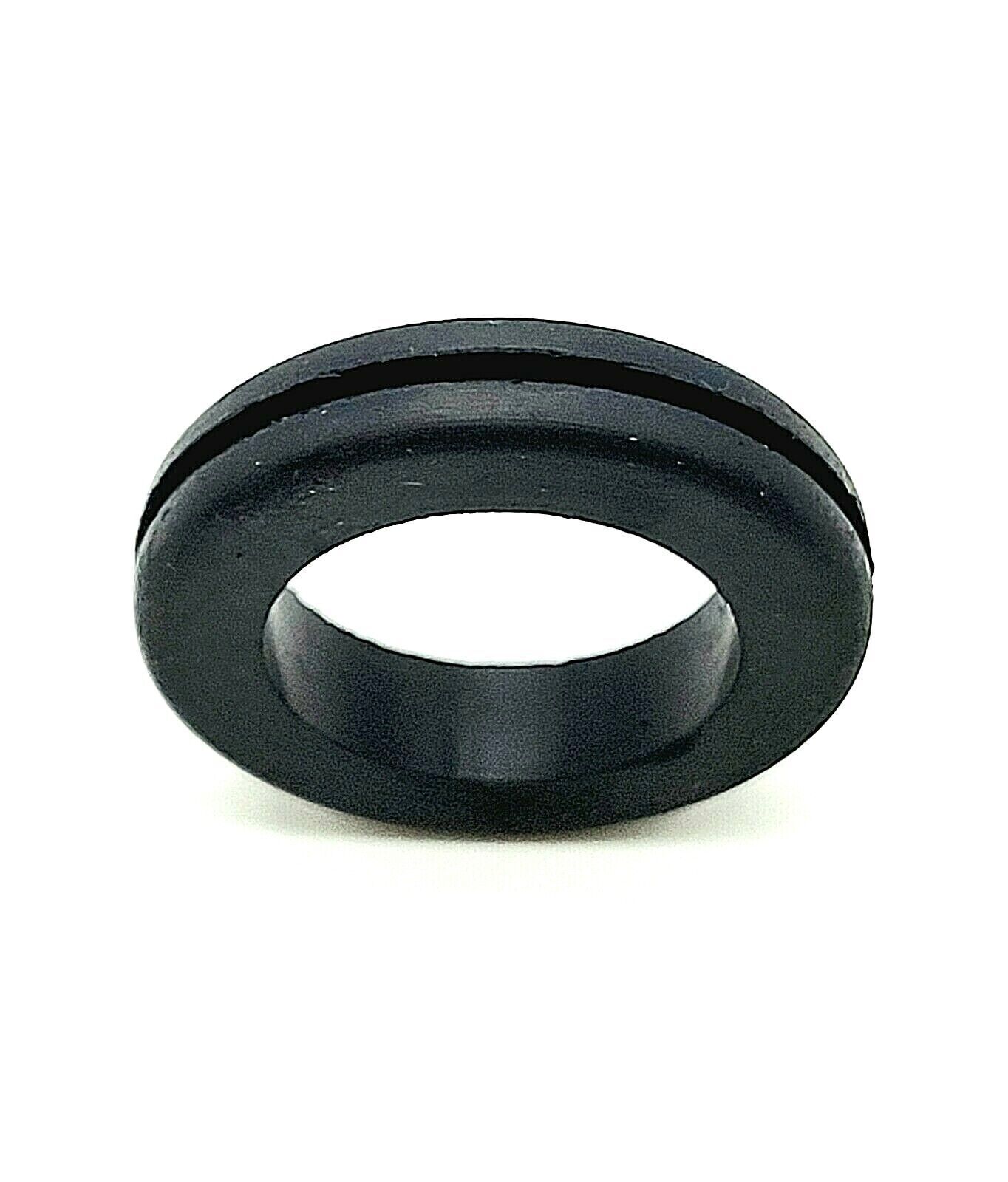

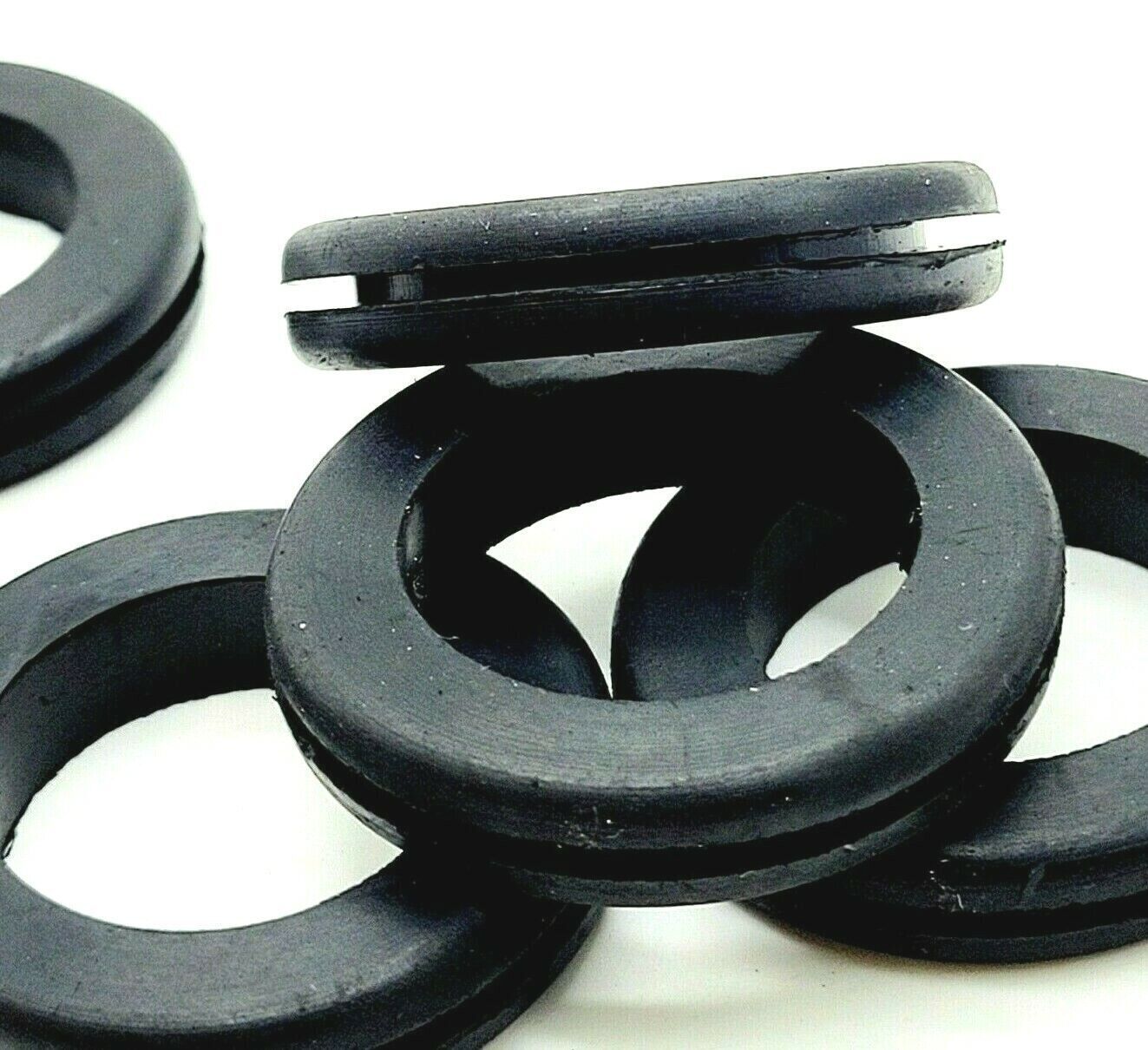

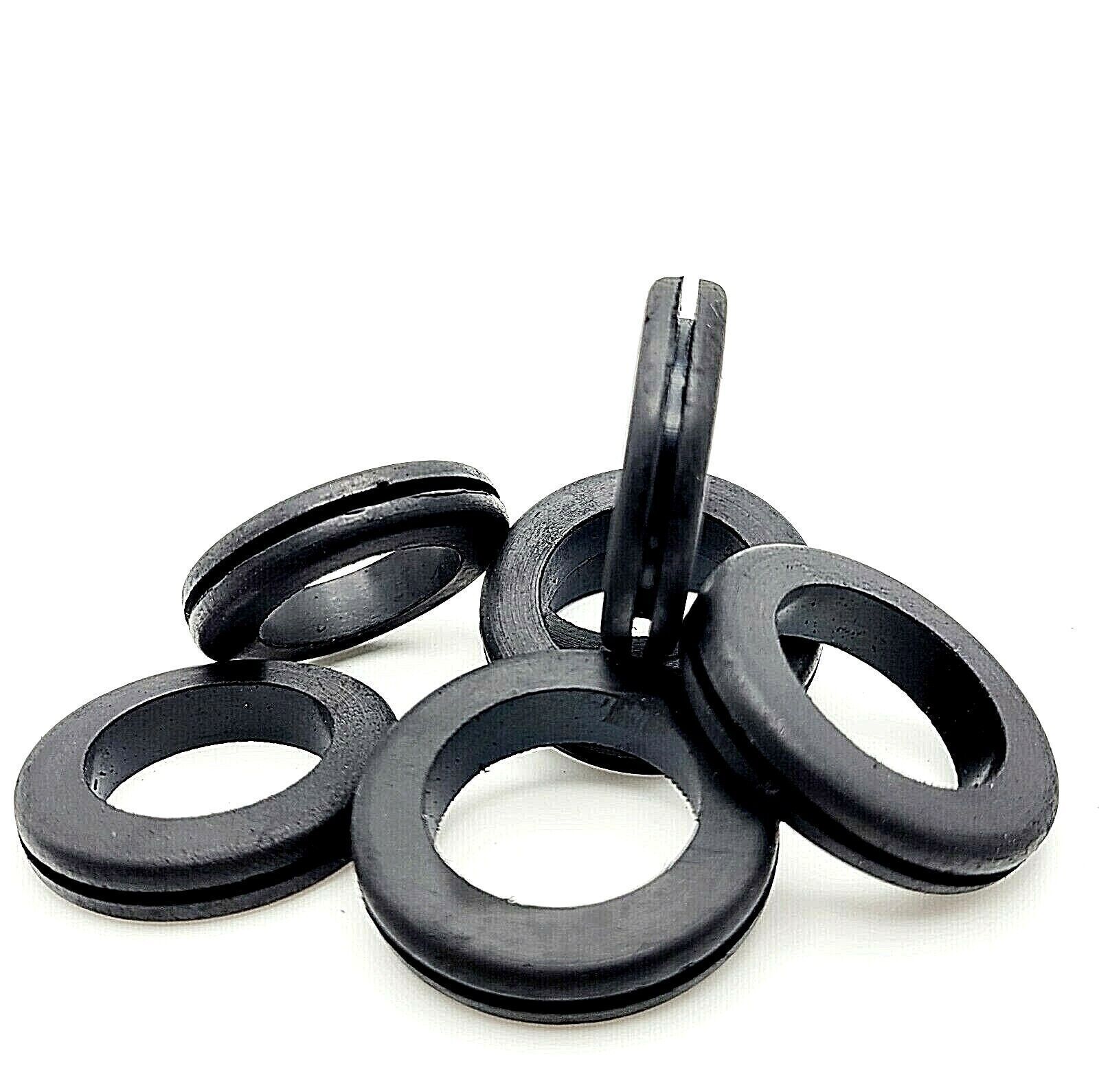

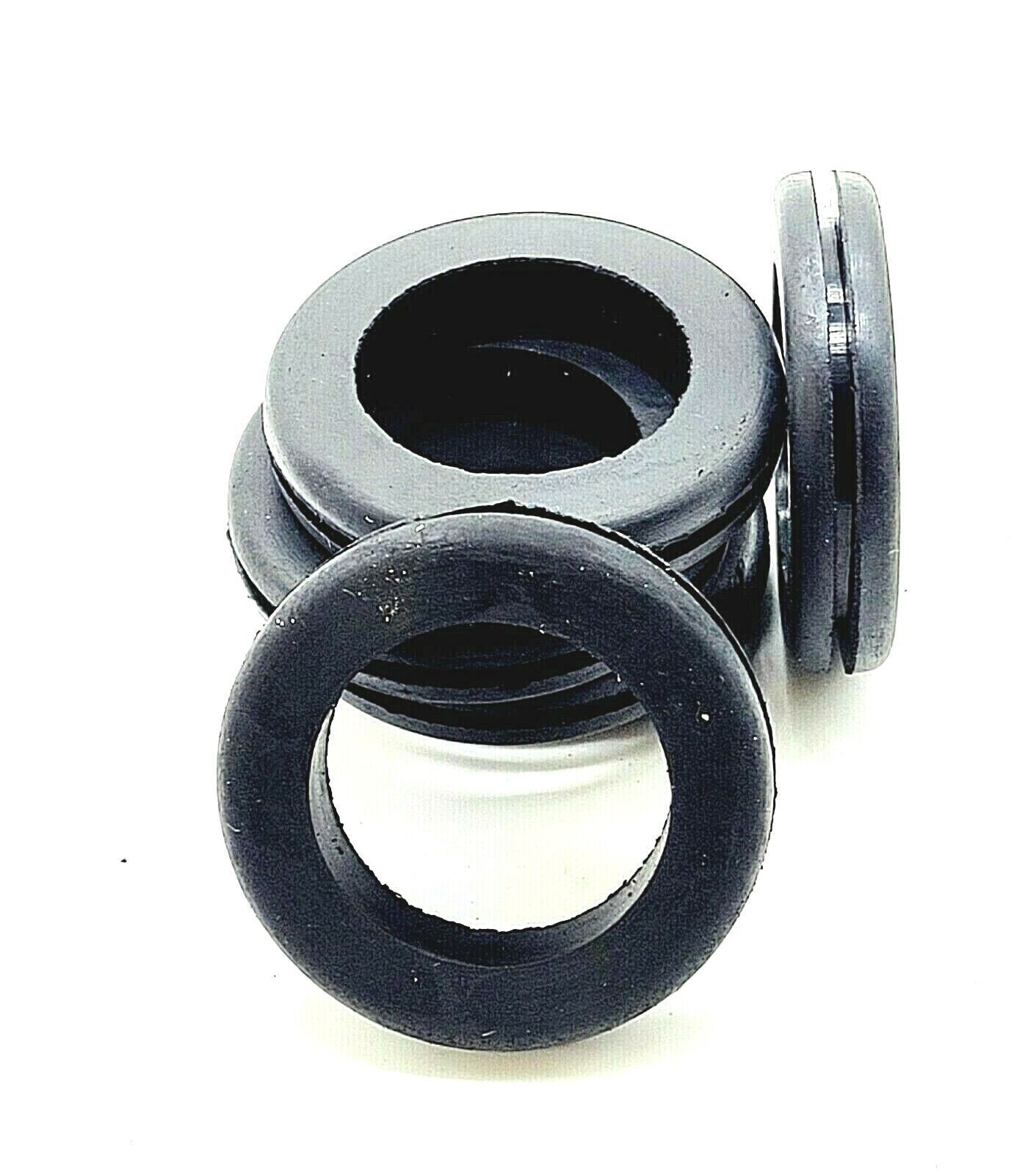

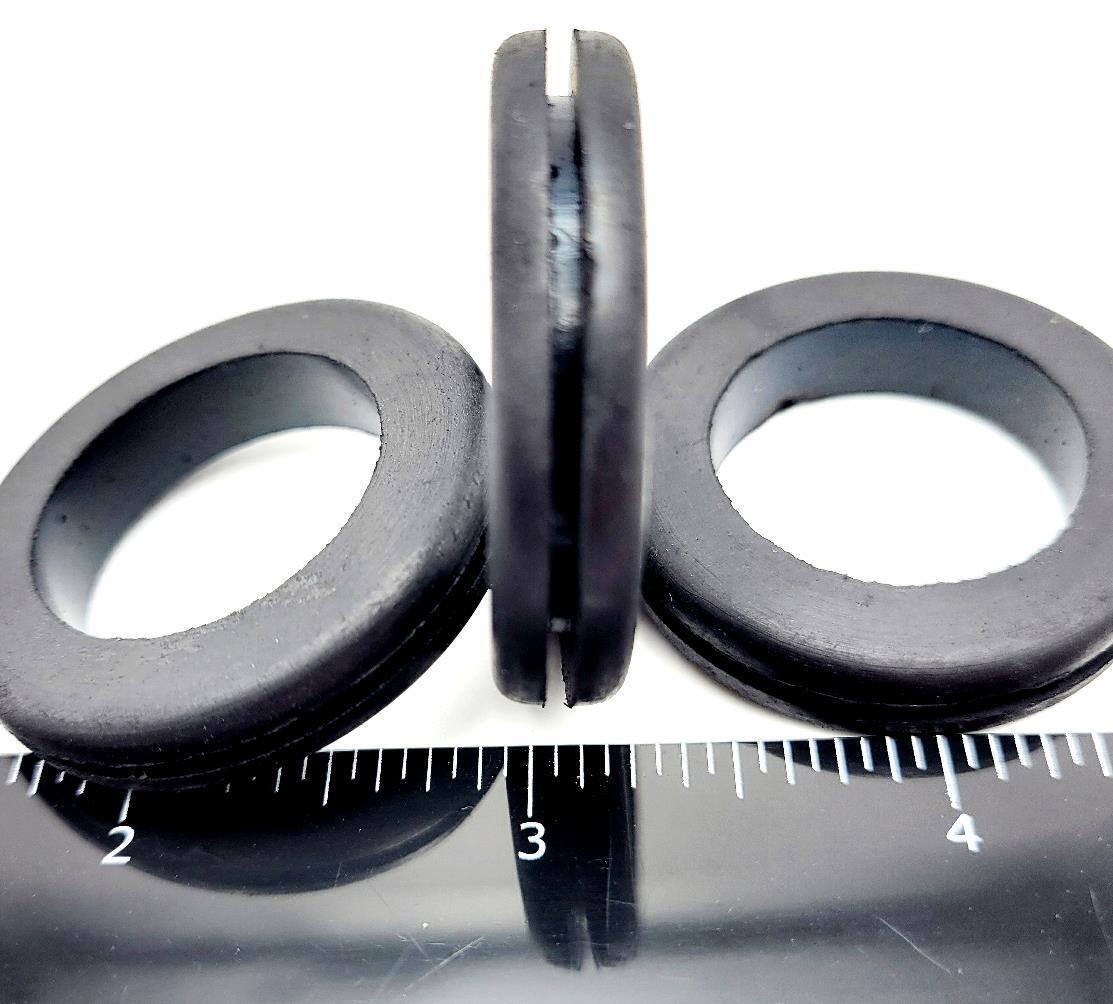

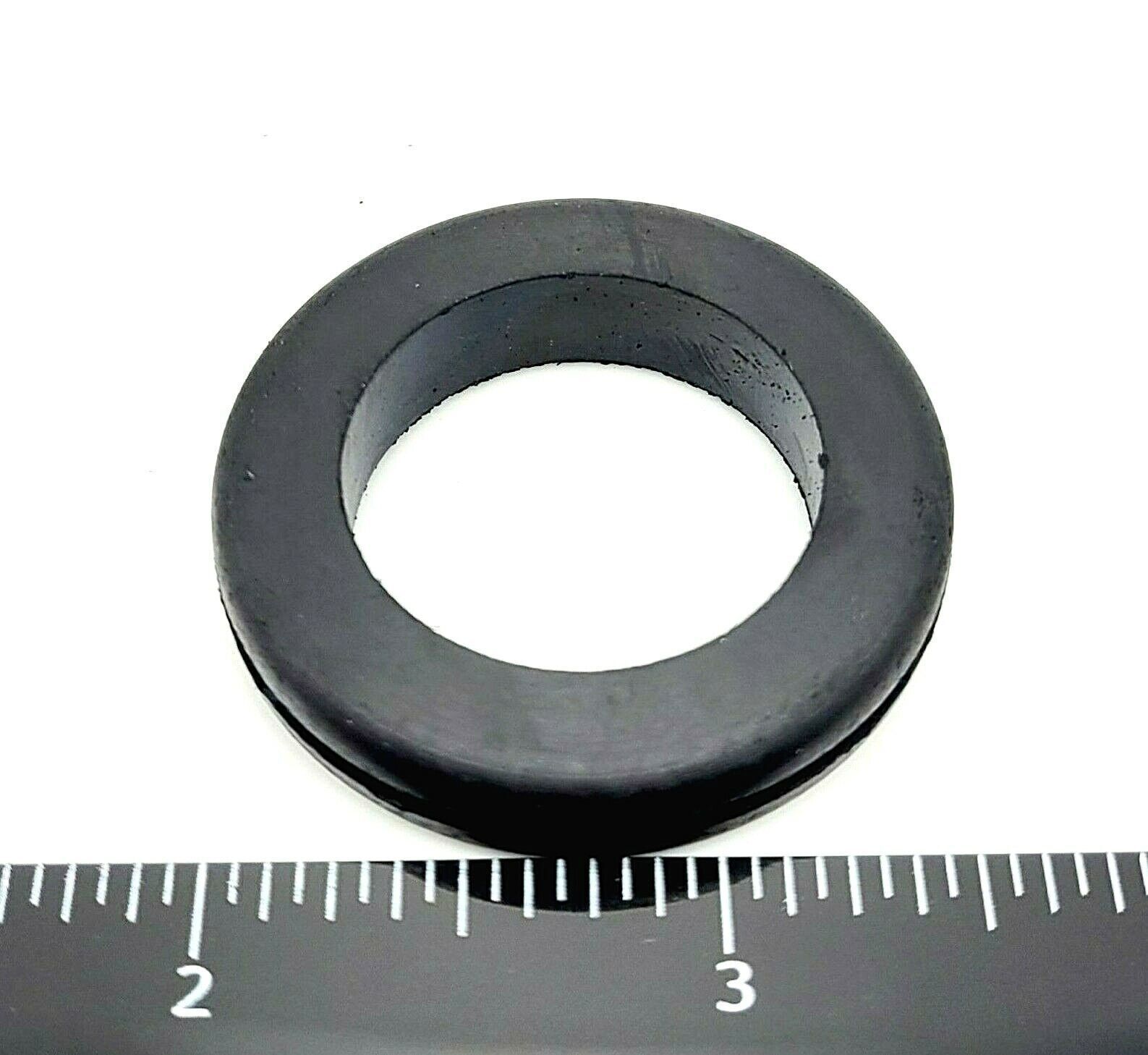

High Quality Rubber Wiring Grommets for a 32mm Panel Hole
ID of grommet 25mm (cable / wire hole) OD - 41mm
Groove is designed for 1.5mm thick wall panels
Generally Resistant To:
Abrasion, Water, Moderate, Chemicals, Organic Acids, Alcohols, Ketones and Aldehydes
Grommets are useful in electronic applications when a wire or tube needs to pass through metal or another material that may cause damage. Most commonly, they protect cables, provide protection and abrasion resistance for wires and wire bundles passing through panel holes. They eliminate sharp edges that can cut in to wiring during vibration.
Rubber grommets are also important parts in automotive applications.
Fits Hole Diameter
1.25"
Inside Dimension
1"
Outside Dimension
1.625"
Groove Width
1/16"
Grommet Thickness
5/16"
Applications Include Rubber Grommets For:
Vintage Auto, Automotive, Motorcycles, Powersports, Trucking, Marine
Fits Hole Diameter 32mm
Outside Diameter 41mm
Inside Diameter 25mm
Overall Thickness 8mm
Fits Panel Thickness 1.5mm
Rubber Type SBR
Minimum Temperature 0* F
Maximum Temperature 225* F
Durometer60A +/- 5
Elongation: 600%
Standards ASTM D2000 AA,BA
Tensile Strength 500 psi
For additional grommet options, visit our grommet page Here
