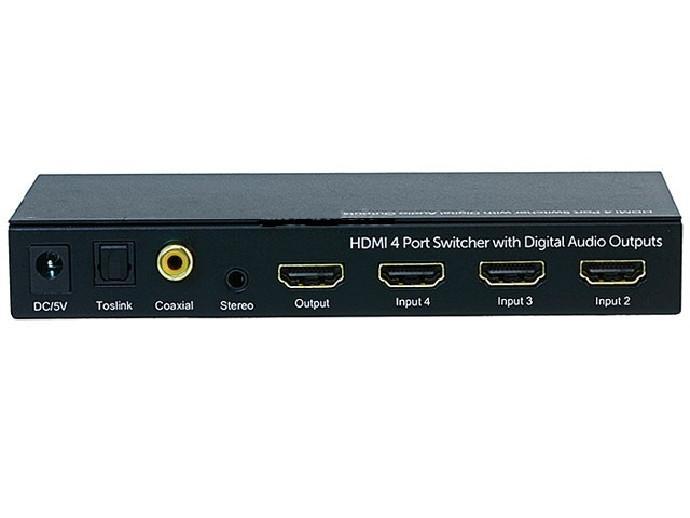

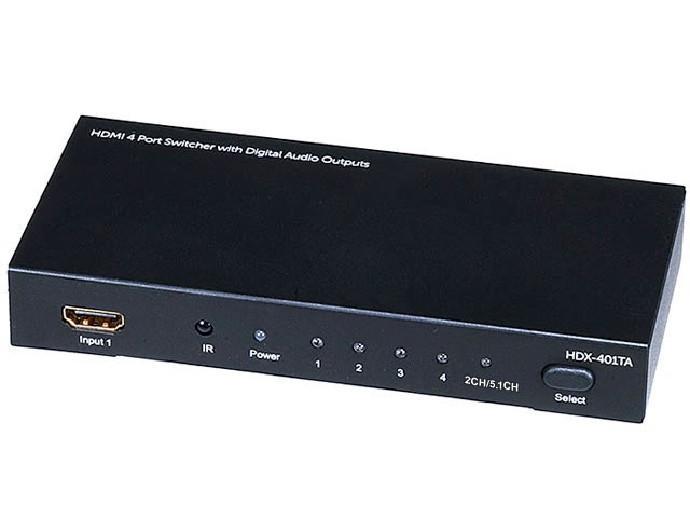

4x1 HDMI Switch with Toslink Digital Coaxial Port - 3D Support Item: HDMI Switch *** NOTE - This is a NEW item! *** Suggested Retail Price New: $109.99 ~ Price**: $94.00 Description If you're looking to expand the input capabilities of an A/V receiver that doesn't support HDMI, then this 4x1 HDMI Switch may be the perfect solution for you! This 4-way HDMI switch features S/PDIF Optical Toslink, Digital Coaxial, and analog 35mm stereo output ports, allowing you to connect to the audio inputs of any AV receiver or amplifier A built-in DAC allows simultaneous audio for HDMI as well as the three audio only outputs The switch supports the full High Speed HDMI resolution (1080p@60Hz), supports all HDMI 3D modes, Deep Color up to 36-bit total, and high definition multichannel audio, including Dolby TrueHD and DTS-HD Master Audio One HDMI input is on the front panel of the switch, making it easy to connect the HDMI output from mobile devices, such as your Android phone *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-* Features: 4x HDMI audio/video inputs with one front-panel input for convenient connection to portable devices 1x HDMI audio/video output 1x S/PDIF Optical (Toslink) audio output 1x Digital Coax audio output 1x Analog 35mm stereo audio output Integrated audio converter for simultaneous digital and analog audio output on all audio output channels Selectable 2-channel (stereo) and 51-channel audio output for digital channels (51-channel output requires 51-channel input and output) Audio sampling rate of 441 to 192 KHz Supports uncompressed LPCM audio Supports compressed DTS Digital, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD audio Support for 1080p and 3D video output Supports 225 MHz/225 Gbps per channel (675 Gbps total) bandwidth Supports 12-bit per channel (36-bit total) Deep Color Full HDCP support FCC, CE, and RoHS compliant Specifications: Audio/Video Inputs: 3x HDMI on rear panel, 1x HDMI on front panel Audio/Video Outputs: 1x HDMI on rear panel Digital Audio Outputs: 1x S/PDIF Optical (Toslink)* and 1x Digital Coax* Analog Audio Outputs: 1x 35mm (1/8") stereo Supports High-Speed 1080p HDMI: Yes Supported Video Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Supports 3D Video: Yes Fully HDCP Compliant: Yes Supports Deep Color (XVColor) at 12-bits per channel (36-bit total): Yes Uncompressed Audio Support: LPCM Compressed Audio Support: DTS Digital, Dolby Digital, DTS-HD Master Audio, Dolby True HD Audio Sample Rate: 441 to 192 KHz Dimensions: 6 x 275 x 1 inches * The S/PDIF Optical (Toslink) and Digital Coax audio output formats are based on the HDMI audio output If any of the sync devices (eg, HDTV, Projector, etc) connected to the output can only support stereo audio, then the S/PDIF Optical (Toslink) and Digital Coaxial outputs will be limited to PCM stereo audio Package Content HDMI Switch AC Adapter Infrared Remote Control User Manual Note: Photos and/or description may differ from actual products Information from suppliers or packaging HDX-401TA-5557 - Made in China ************************************* Don't miss this deal! ************************************* IRN: 844660055570-9400
