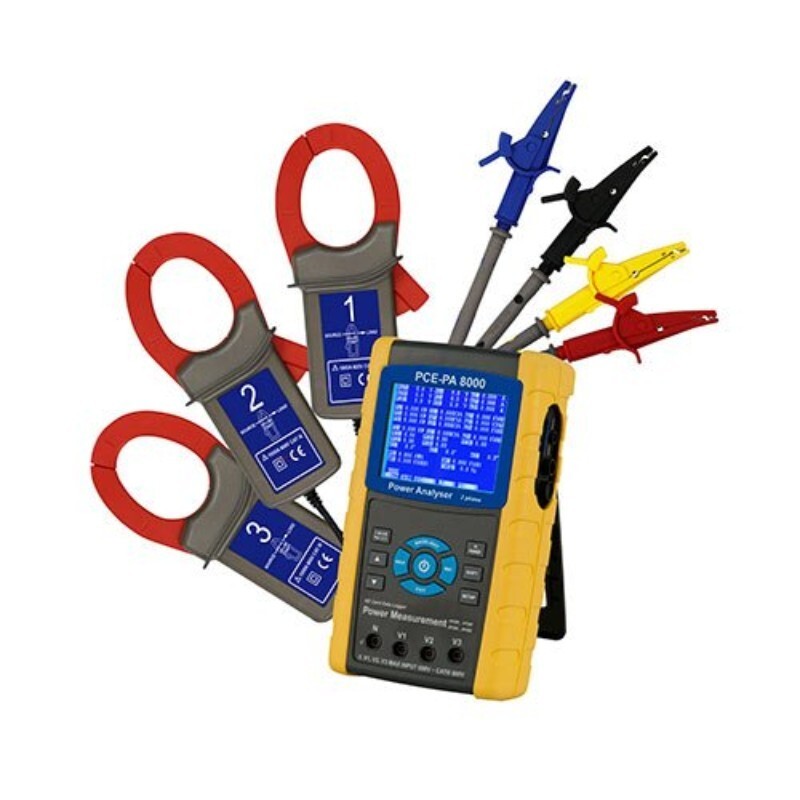

Be confident in your purchase, we're an Authorized PCE Instruments Dealer. Highlights: Real time measurement Data logging with the SD card Integrated timer and calendar to record data Active, apparent, and reactive power The PCE PA 8000 Clamp Meter is able to measure and record the power in both single-phase or three-phase circuits. It will allow you to perform prolonged measurements. Measurement values are saved in xls format on the included SD card of our Clamp Meter to be easily analyzed on the computer. Measurement sample rate can be set from 2 to 7200 seconds. The PCE-PA 8000 Clamp Meter can also measure power and determine both power factor and phase angle. The clamps of the PCE-PA 8000 Clamp Meter can be used for cables with a diameter of 50 mm / 2.0 in. The PCE-PA 8000 is the ideal tool to be used in power supply networks. Its 3.7 in / 94 mm display allows you to read all measured values for a quick analysis as well as providing a view of the current, voltage, and power. Features: Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors Measures effective real value of current and voltage Measures active, apparent, and reactive power Power Factor (PF), phase angle (F) Measures voltage up to 600 V Measures current up to 1200 A It meets the IEC 1010 and CAT III 600 V standards Integrated timer and calendar to record data Measured values are recorded in the included SD card Data is stored in Excel format for further study Data can be transferred to a PC through data cable Large 3.7 in / 94 mm LCD display Specifications: Display: 3.7 in / 94.0 mm LCD (320 x 240 pixels) with LED backlight Electrical properties: AC V, AC A, active power, apparent power, power factor, phase angle, mains frequency Voltage ranges: 10 V ... 600 V AC, automatic range selection Security / Standards: IEC1010CAT III 600V AC V input resistance: 10 MO Operation frequency of current clamps: 40 Hz ... 1 kHz Tested operation frequency of current clamps: 45 Hz ... 65 Hz Overload protection: AC V / 720 V rms AC A: 1300 A with current clips Memory: SD card up to 16 GB Measurement display rate: 1 second Data logger: SD Measurement sample rate: 2 seconds... 7200 seconds Data output: USB or RS-232, depending on the connection cable Operating temperature: 0º C ... 50º C / 32 F ... 122 F Operating humidity: 80 % H.r. Power: 8 x 1.5 V AA batteries / mains component Input current: Meter: 300 mA DC Clamp: 34 mA DC Max. diameter: 50 mm / 1.9 in Weight Meter: 948 g / 33.4 oz (with batteries) Clamp: 467 g / 16.4 oz (with cable) Dimensions: Meter: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in Clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in Jaw: 86 mm / 3.3 in (exterior) What?s Included: 1 x PCE-PA 8000 Clamp Meter 3 x Current clamps 4 x Test cables 4 x Alligator clips 1 x 2 GB SD card 1 x 9 V DC mains component 8 x Batteries 1.5 V AA 1 x Carrying case
