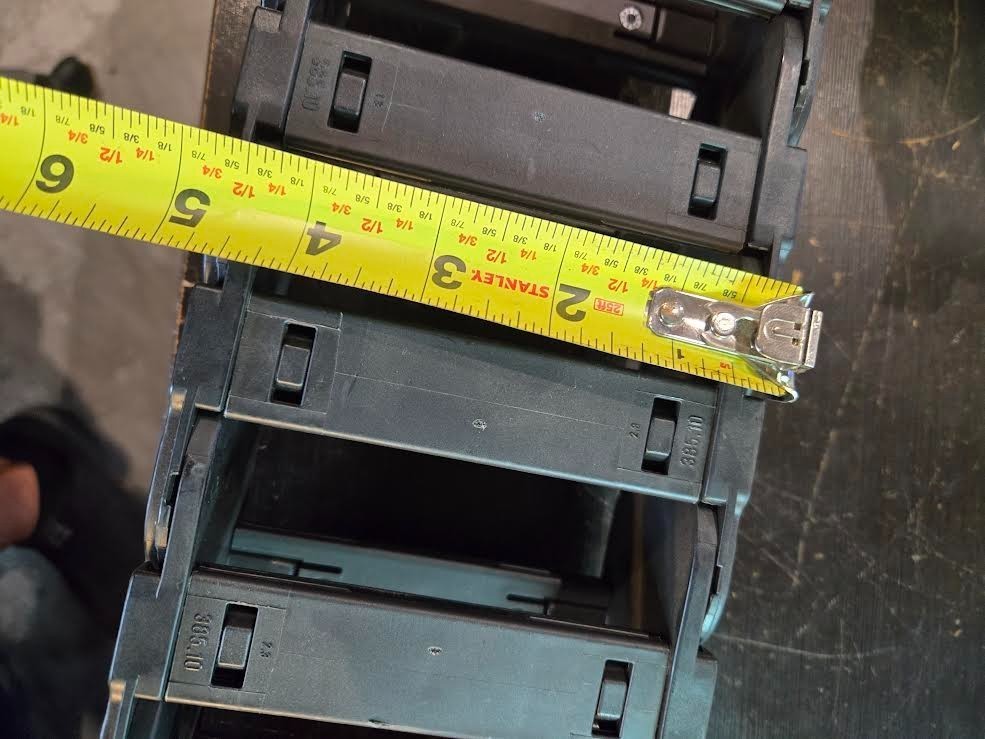

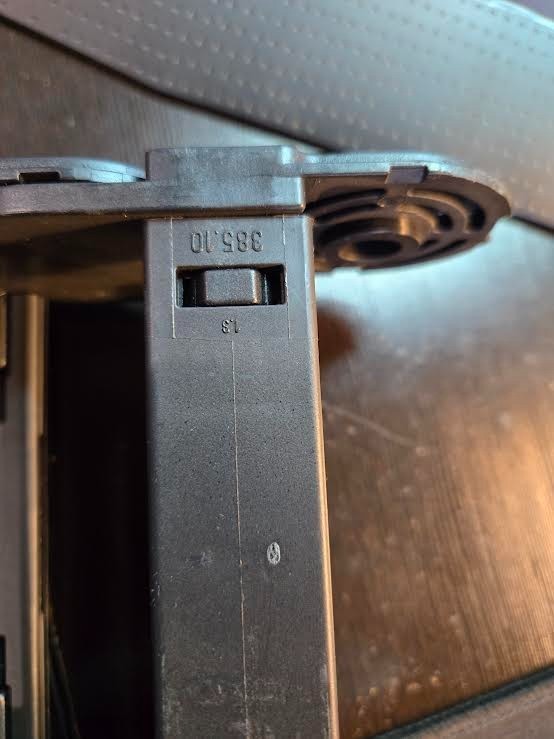

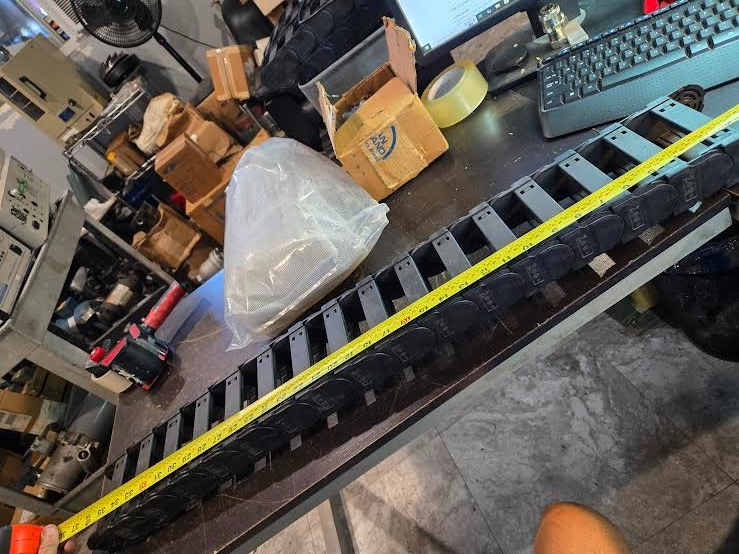

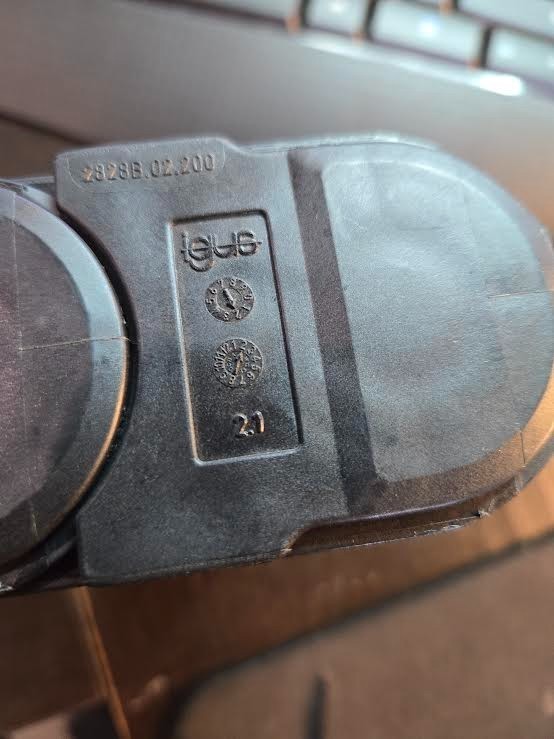

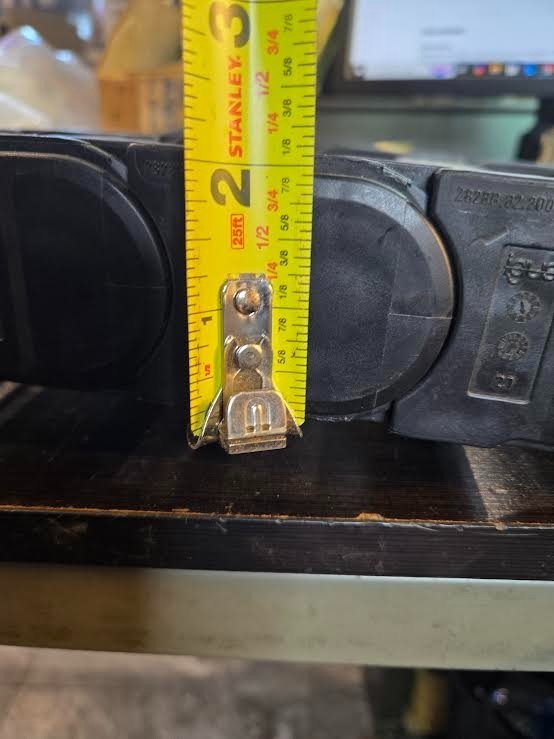

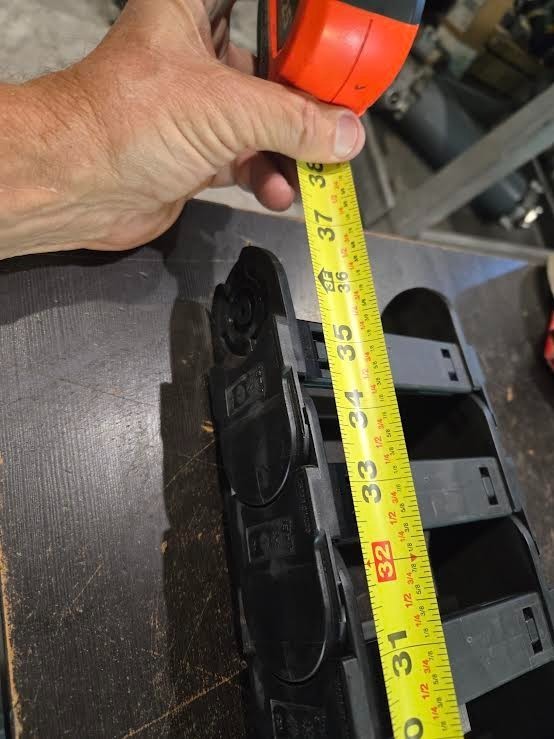

IGUS CABLE CHAIN 2828B.02.200 2828B 37" LONG 37"X4.75" X 2.00" 385.10 NEW $49 WE HAVE 12 SECTIONS IN STOCK. The E4/4 system is used in two areas: for extremely long travels and unsupported, side-mounted applications. This is made possible by the famous "undercut" design between the two chain links. Compressive strength and rigidity are increased, which provides for greater resistance to wet and rough weather conditions. High stability when side-mounted due to undercut design High torsional rigidity Side-mounted with large unsupported length For long-term operation in very humid environments Dimensions Inner height [Hi] 1.26 in (32 mm) Inner width [Bi] 1.97 in (50 mm) Outer height Ha 2.13 in (54 mm) Outer width [Ba] 2.87 in (73 mm) Bend radius [R] 2.48 in (63 mm) Pitch 2.2 in (56 mm) Chain links per meter 18 Max. cable diameter 1.1 in (28 mm) H 7.09 in (180 mm) D 6.85 in (174 mm) K 12.2 in (310 mm) H2 4.96 in (126 mm) D2 5.12 in (130 mm) K2 13.39 in (340 mm) Velocity FLG unsupported max. 66 ft/s (20 m/s) Acceleration FLG max. 656 ft/s (200 m/s) Maximum unsupported length 9.8 ft (3 m) Maximum long travel 656.2 ft (200 m) Opening principle Can be opened along the inner and outer radius maximum filling weight 10 kg/m Color black Material igumid G LW Energy chain system E4/4 Shipping weight (kg or kg/m) 1.6407
