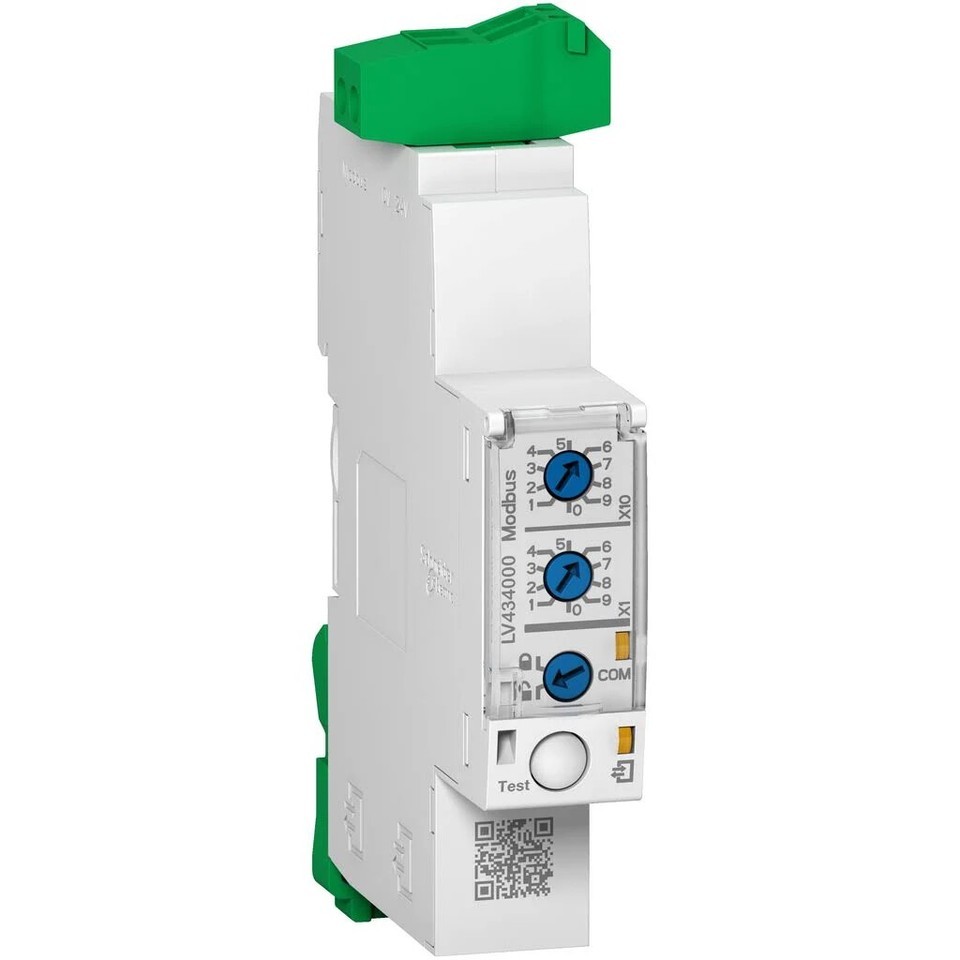

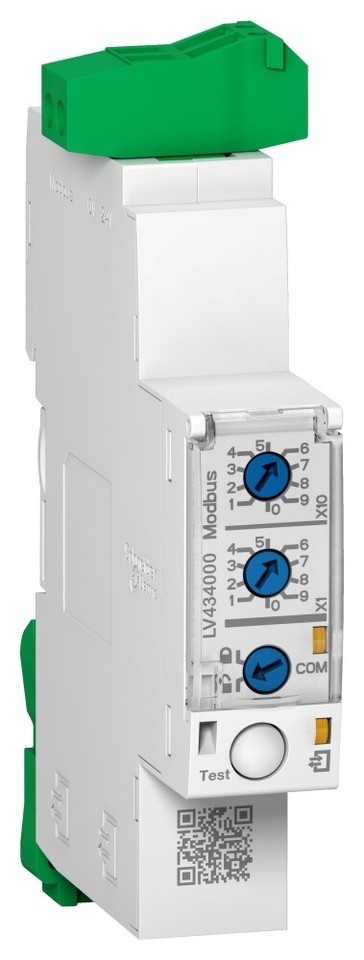

Schneider Electric LV434000 IFM Modbus-SL interface module, Enerlin'X Main device short name IFM product or component type Interface module range compatibility Masterpact MTZ MasterPact NT Masterpact NW ComPact NSX ComPact NS630b...1600 ComPact NS1600b...3200 PowerPact J PowerPact L PowerPact H PowerPact P PowerPact R Complementary communication network type Universal Logic Plug on 2-port RJ45 Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45 mounting mode By clips mounting support 35 mm DIN rail accuracy class Class 2 power supply input voltage 24 V DC - 20...10 % output voltage 24 V DC output current 3 A current consumption 30 mA 24 V DC room temperature power consumption in W 1.635 W memory type EEPROM data storage connections - terminals RJ45 connector Screw type terminals product certifications EAC cULus CE FCC standards CISPR 22 UL 61010 UL 60950 CISPR 24 CISPR 11 IEC 60950 IACS E10 height 109 mm width 18 mm depth 73 mm net weight 120 g
