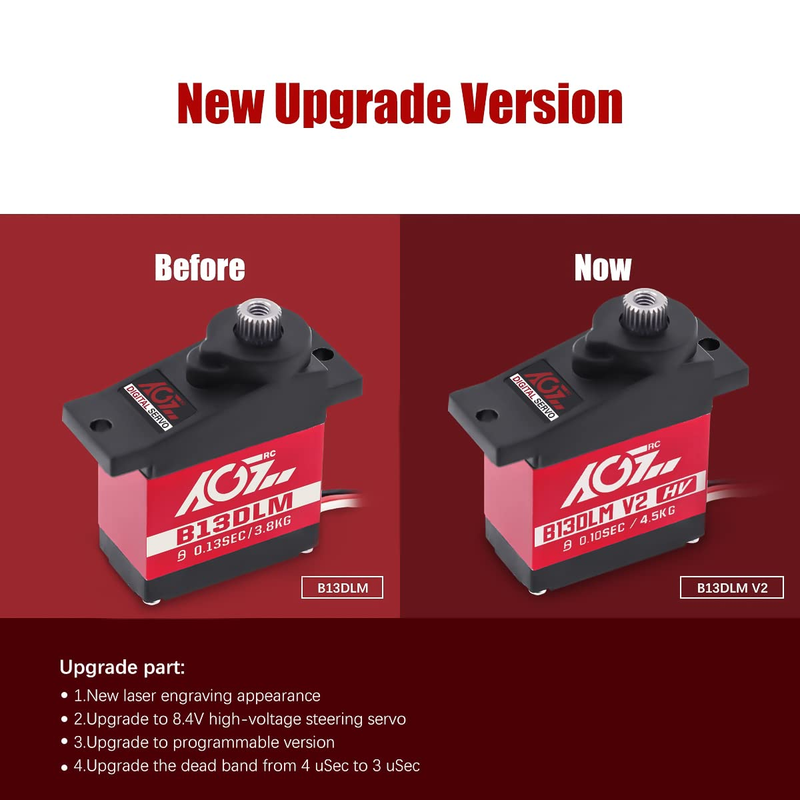

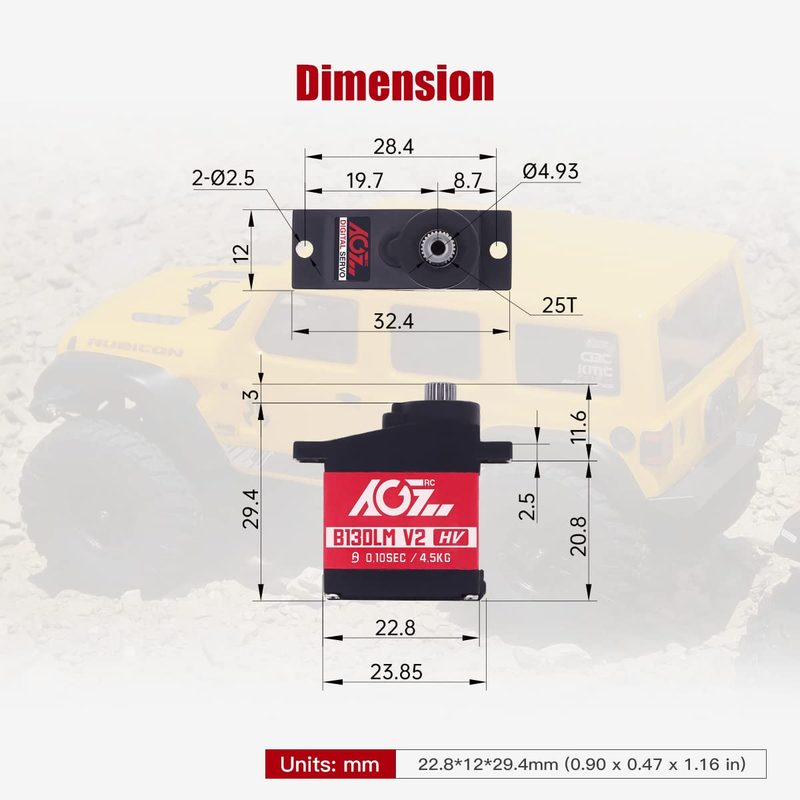

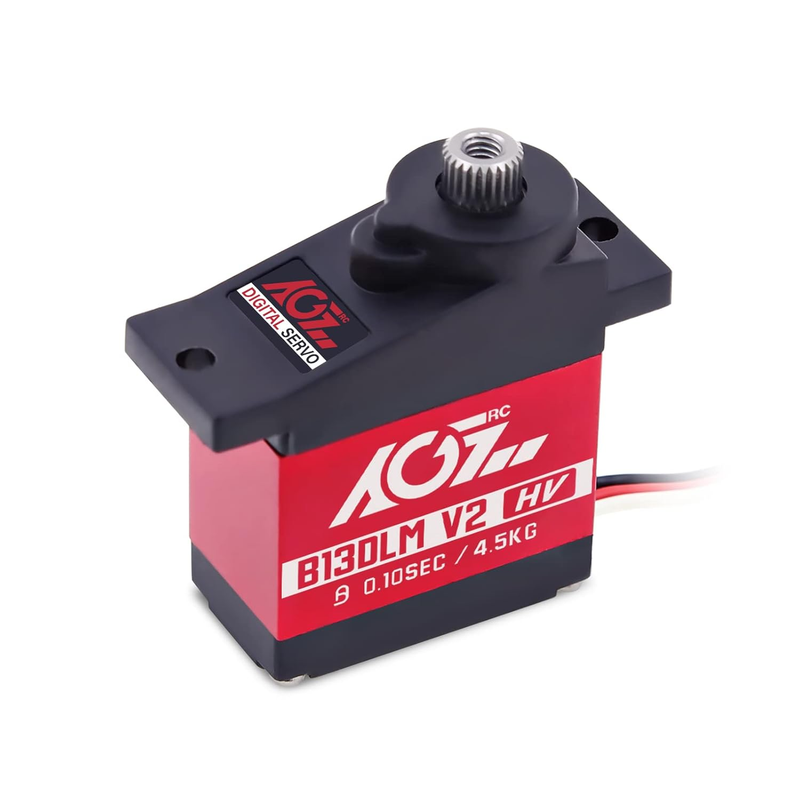

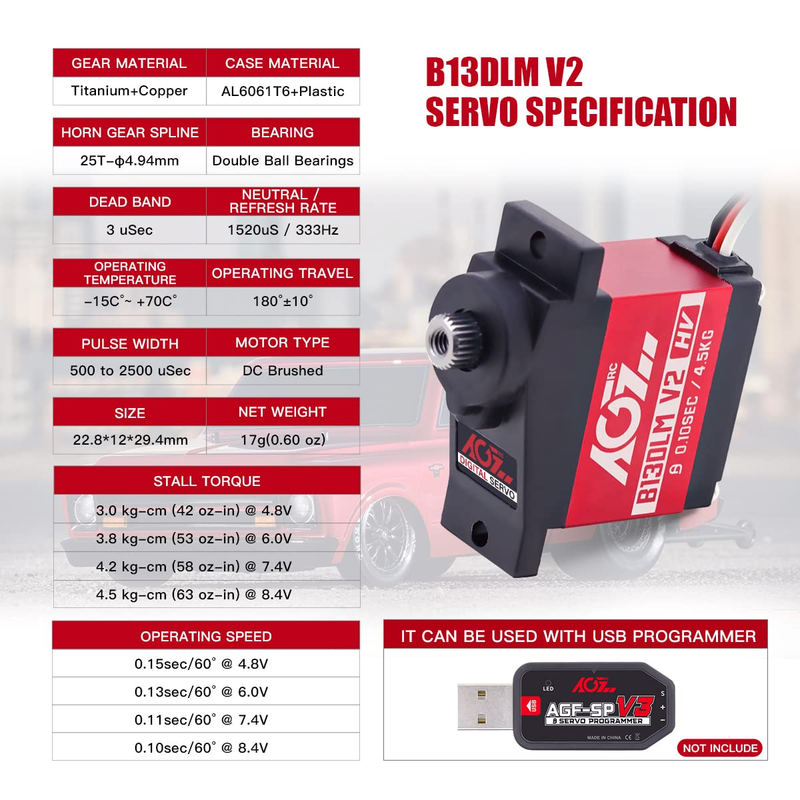

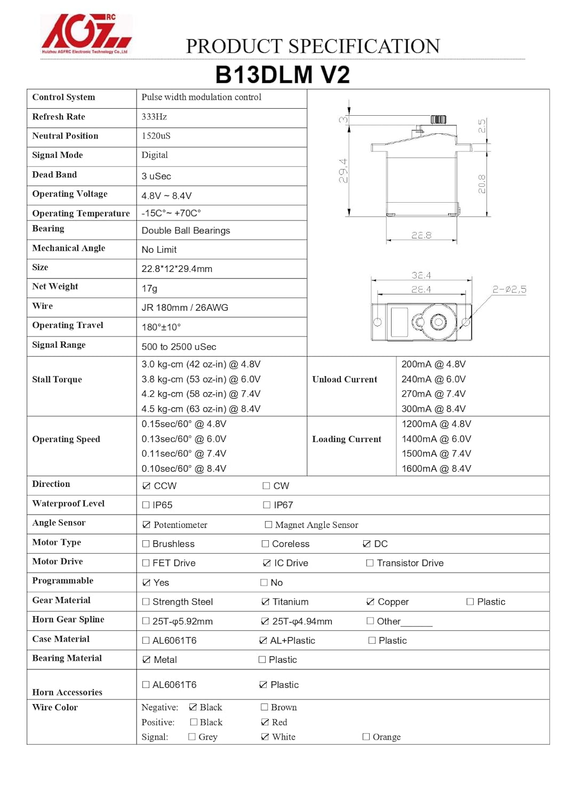

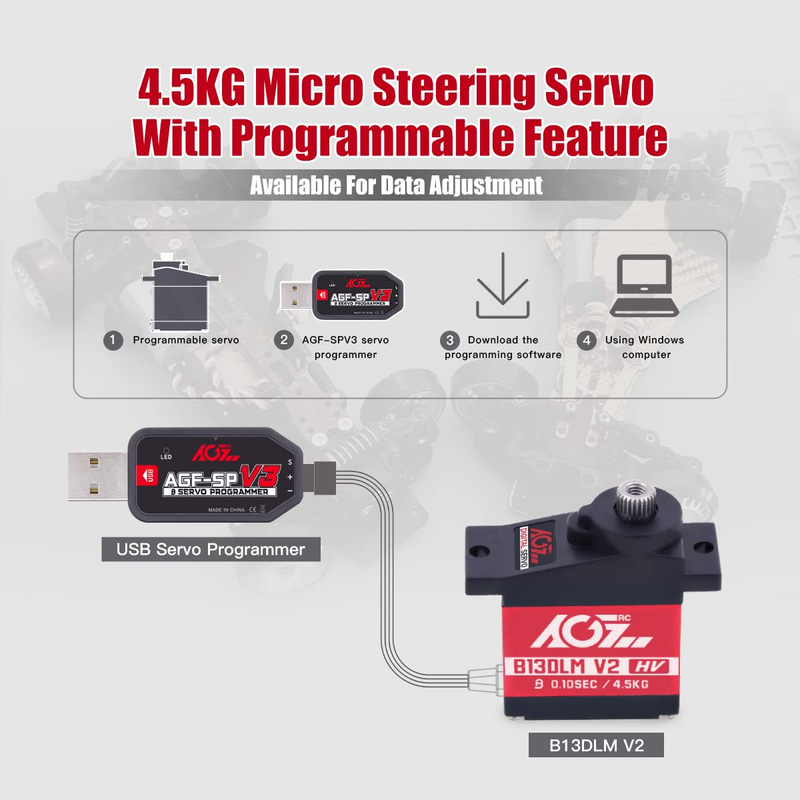

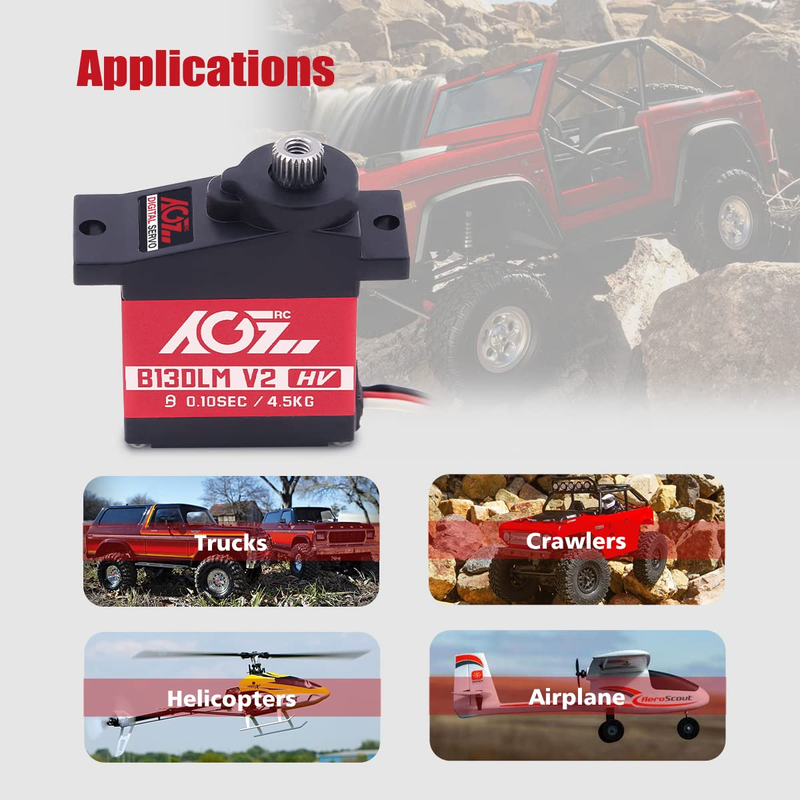

Store New Arrivals Add to Favorite View Feedback Contact Sub-Micro Servo Motor - Upgrade Metal Case Titanium Gear 4.5Kg HV Mini Se Description Item model number B13DLM V2 Product Dimensions 0.9 x 0.47 x 1.16 inches; 0.6 ounces Material Aluminum, Plastic Item Weight 17 Grams Edition B13DLM V2 Manufacturer recommended age 14 years and up Is Discontinued By Manufacturer No Upgrade version: programmable, 8.4V high voltage application Stall Torque: 3.8 kg-cm (52.77 oz-in) @ 6.0V; 4.5 kg-cm (63 oz-in) @ 8.4V Operating Speed: 0.13sec/60 @ 6.0V; 0.10sec/60 @ 8.4V Operating Voltage: 4.8-8.4V; Size: 22.8*12*29.4mm (0.90 x 0.47 x 1.16 in); Weight: 17g Application: Ideal for 1/14, 1/16 Revo, 1/18, 1/24 Scale Crawler, Airplane, 450 Size Helicopter, Robot etc. Product description 1 Stall Torque 2 Operating Speed 3 Loading Current 4 Servo Feature 5 Wide Application Upgraded High Voltage Version B13DLM V2 is a upgraded 8.4V high voltage version, which can provide 4.5KG torque and 0.10Sec speed. Parameter Programmable Version Programmable by the AGF-SPV3 servo programmer to change the torque, speed, angle, inversion, etc. Strengthen Full Metal Gear and Steel Shaft Design B13DLM V2 uses titanium copper gears for more durable, shockproof, and higher precision. Cost-Effective Brushed Motor Using a cost-effective brushed motor can provide more powerful torque and speed for the servo. Micro Servo Size Ideal for 1/14, 1/16 Revo, 1/18, 1/24 Scale Crawler, Airplane, 450 Size Helicopter, Robot etc. 1 Upgraded Version 2 Programmable Circuit 3 Full Metal Gears 4 Brushed Motor 5 Product Size Tech Specs Brand AGFRC Item Name B13DLM V2 Control System PWM Refresh Rate 333Hz Neutral Position 1520uS Signal Range 500 to 2500 uSec Dead Band 3 uSec Operating Travel 18010 ?when 500 to 2500 uSec) Operating Voltage 4.8V ~ 8.4V Operating Temperature -15C~ +70C Horn Gear Spline 25T-?4.94mm Bearing Double Ball Bearings Case Material AL+Plastic Net Weight 17g (0.60oz) Wire JR 180mm / 26AWG Dimension 22.8*12*29.4mm (0.90 x 0.47 x 1.16 in) What does programmable mean? Do I have to buy a programming card? 1. It means that this servo uses the programmable digital circuit, and you can use AGF-SPV3 servo programmer to change the torque, speed, angle, inversion, etc. 2. Not purchasing a programming card will not affect the use of the servo. What size screw and thread pitch is used in the aluminum horn/arm? The screw used in the aluminum horn is M2.5 screw, and the thread pitch is 0.45mm. Is this steering servo waterproof? No, this B13DLM V2 micro servo isn't a waterproof version. B13DLM V2 4.5KG / 0.10Sec AGFRC Servo Comparison 4.8V ~ 8.4V Operating Voltage 4.8V ~ 8.4V Brushed Motor Motor Type Coreless Motor IP67 Waterproof Potentiometer Angle Sensor Potentiometer No Limit Mechanical Angle No Limit 22.8*12*29.4mm Dimension 29.5*14*29mm 4.8V ~ 8.4V Operating Voltage 4.8V ~ 6.0V Brushed Motor Motor Type Brushed Motor IP67 Waterproof Potentiometer Angle Sensor Potentiometer No Limit Mechanical Angle 200 22.8*12*29.4mm Dimension 23*12.1*23.8mm 4.8V ~ 8.4V Operating Voltage 3.6V ~ 6.5V Brushed Motor Motor Type Coreless Motor IP67 Waterproof Potentiometer Angle Sensor Potentiometer No Limit Mechanical Angle 200 22.8*12*29.4mm Dimension 21.3*11.5*17.6mm 4.8V ~ 8.4V Operating Voltage 4.8V ~ 6.0V Brushed Motor Motor Type Coreless Motor IP67 Waterproof Potentiometer Angle Sensor Potentiometer No Limit Mechanical Angle No Limit 22.8*12*29.4mm Dimension 20*21*11.3mm B24CLM 6KG / 0.085Sec B11DLS 2.8KG / 0.10 Sec B05CLS 1.0KG / 0.075Sec A11CLS V3 1.4KG / 0.05Sec ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help.
