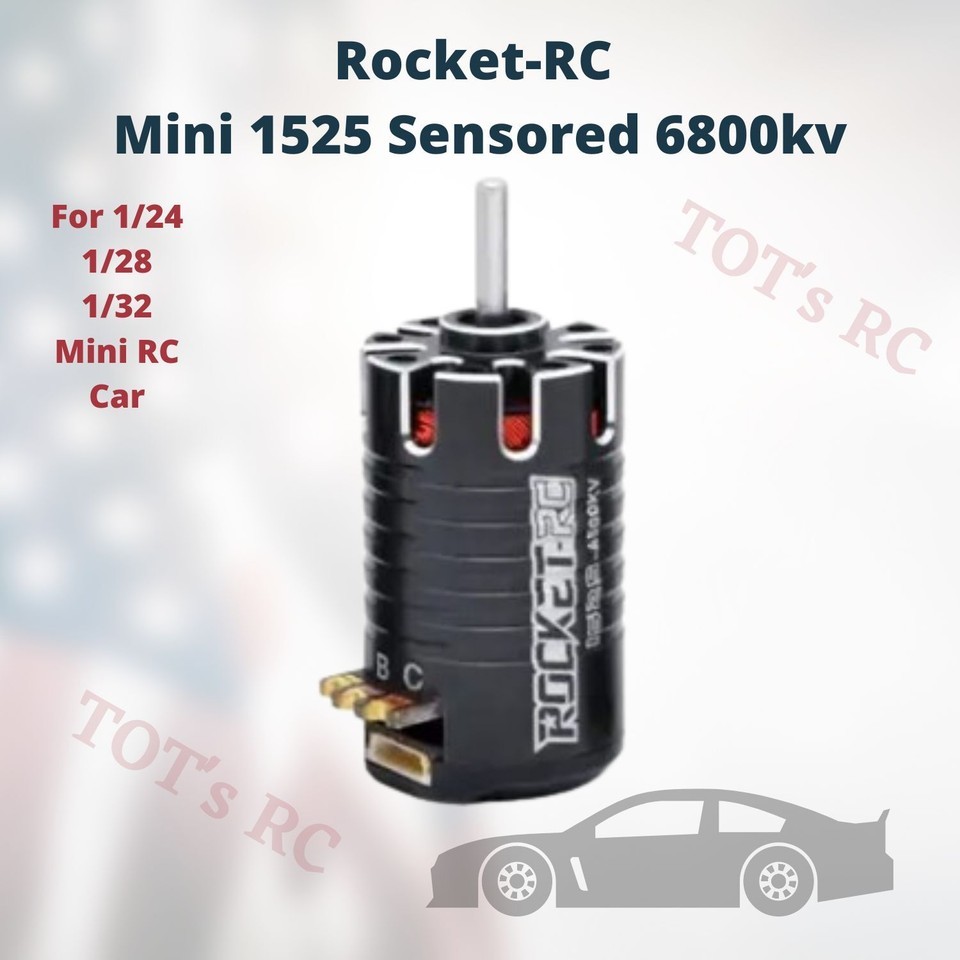

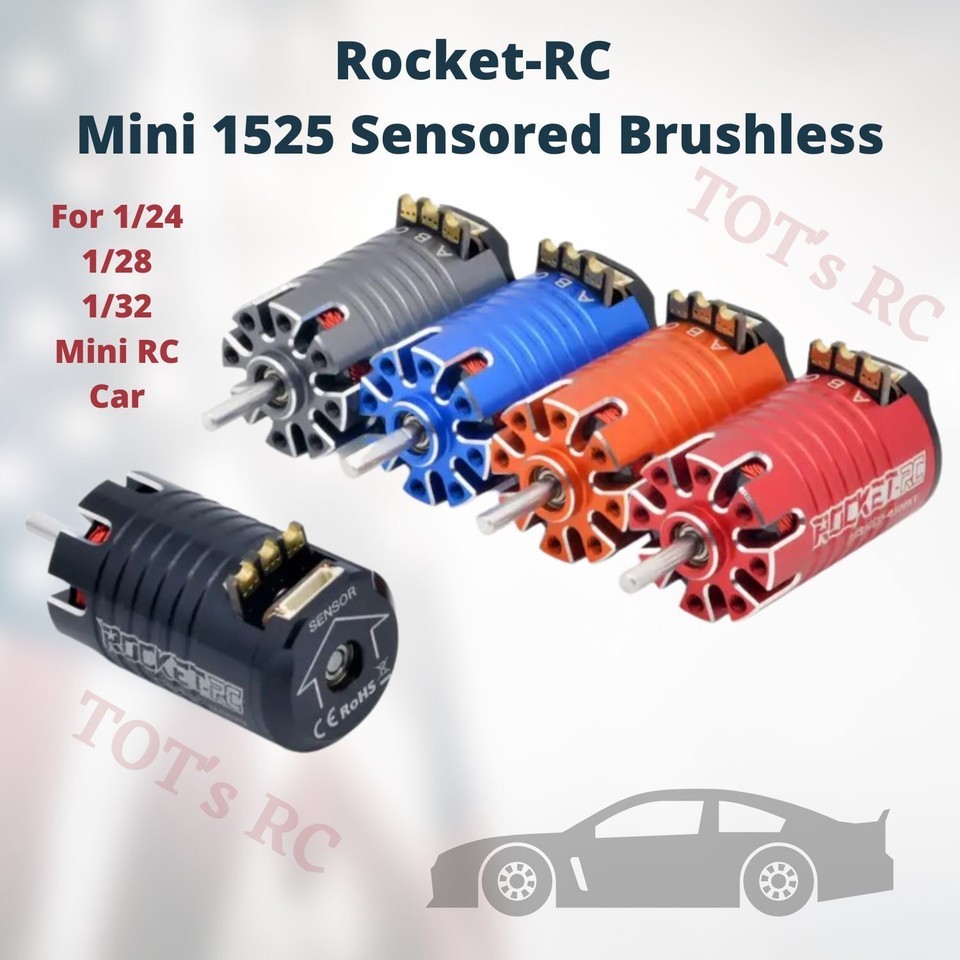

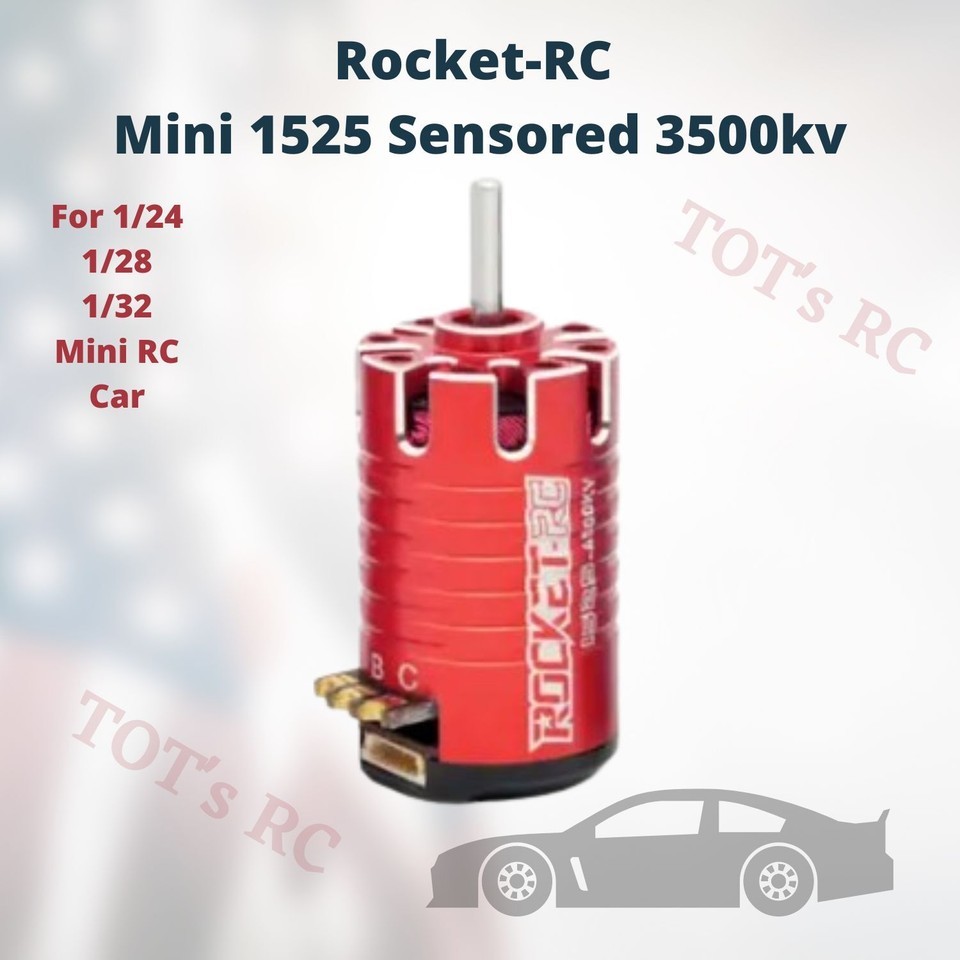

Surpass Hobby Rocket-RC Mini 1525 Sensored Brushless Motor 3500kv 6800kv Mini Z
Surpass Hobby Rocket-RC Mini 1525 Sensored Motor
For Mini-Z, Mini Drift, Mini Q, Mini Crawler 1/24 1/26th 1/28th rc cars

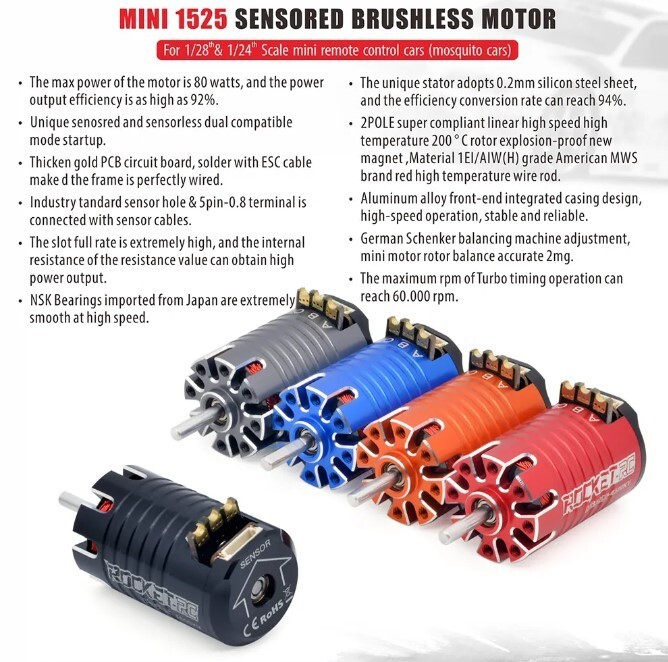

Features
* The max power of the motor is 80 watts, and the power output efficiency is as high as 92%.
* Unique sensored and sensorless dual compatible mode starup.

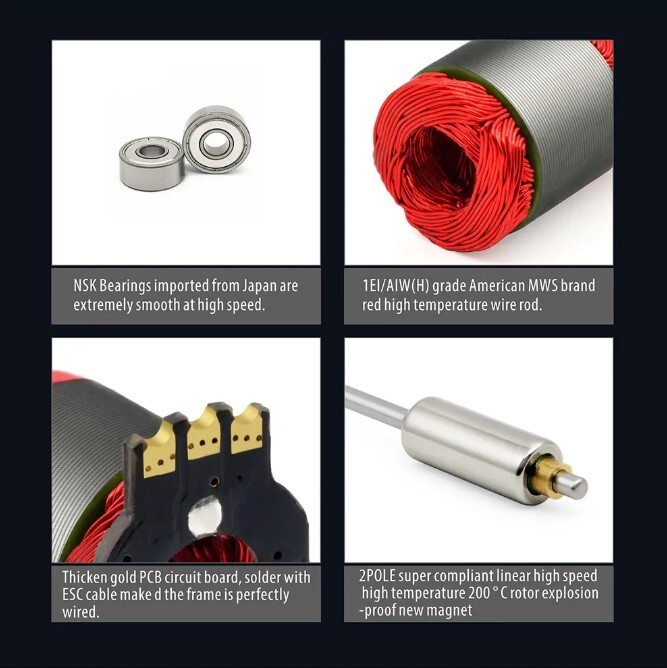

* Thicken gold PCB circuit board, solder with ESC cable make the frame is perfectly wired.
* Industry tandard sensor hole 5pin-0.8 terminal is connected with sensor cables.
* The slot full rate is extremely high, and the internal resistance of the resistance value can obtain high power output.

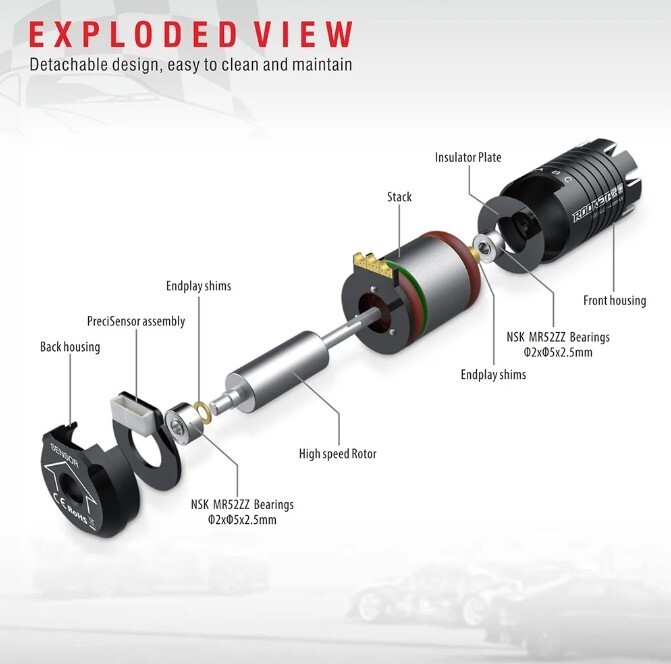

* NSK bearings imported from Japan are extremely smooth at high speed.
* The unique stator adopts 0.2mm silicon steel sheet, and the efficiency conversion rate can reach 94%.
* 2 Pole super compliant linear high speed high temperature 200? rotor explosion-proof new magnet, material 1EI/AIW(H) grade American MWS brand red high temperature wire rod.
* Alminum alloy front-end integrated casing design, high-speed operation, stable and reliable.
* German Schenker balancing machine adjustment, mini motor rotor balance accurate 2mg.
* The maximum rpm of turbo timing operation can reach 60,000rpm.

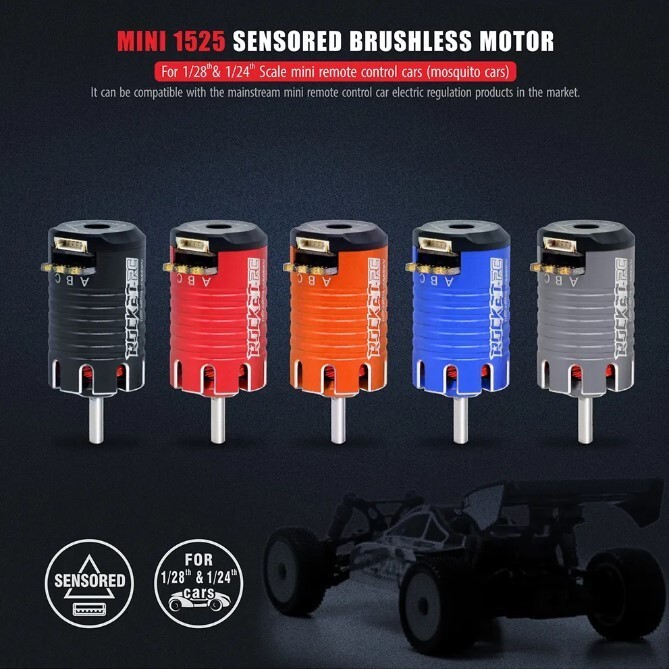

* Suitable for 1/24th 1/28th Scale mini remote control cars (mosquito cars)

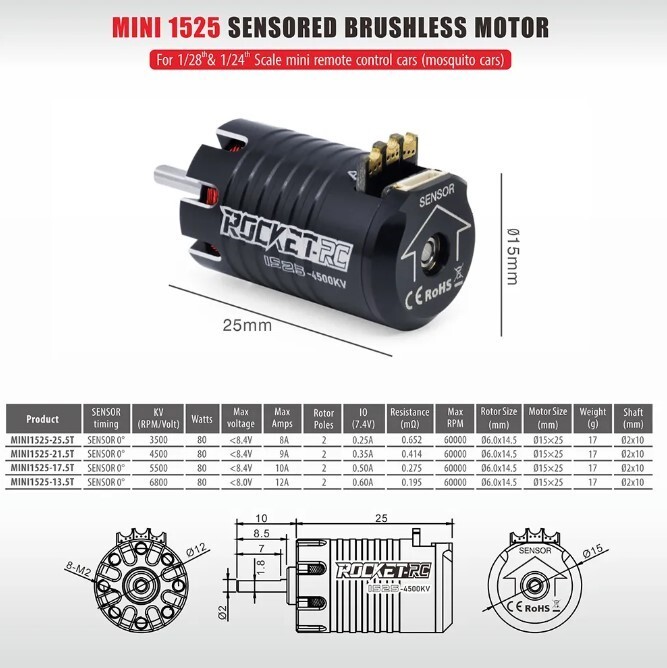

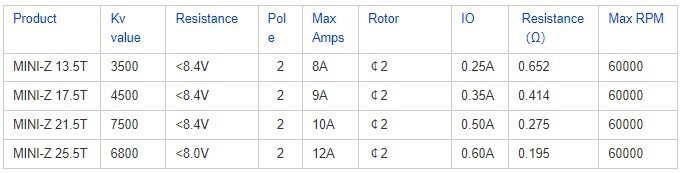

Specification
Brand: Surpass Hobby/Rocket-RC
Product: MINI 1525
Motor Size: ø15x25mm
Sensor Timing: Sensor 0
Watts: 80
Rotor Poles: 2
Max RPM: 60000
Rotor Size: ø6.0x14.5mm
Shaft: ø2mm
Weight: 17g

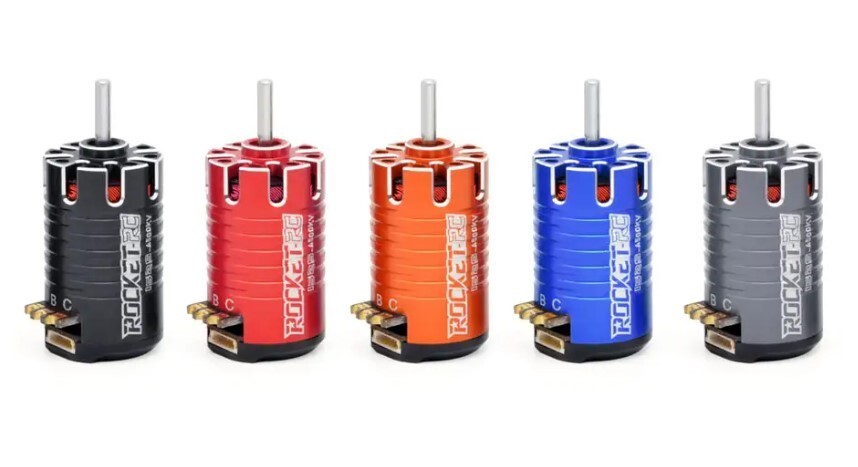

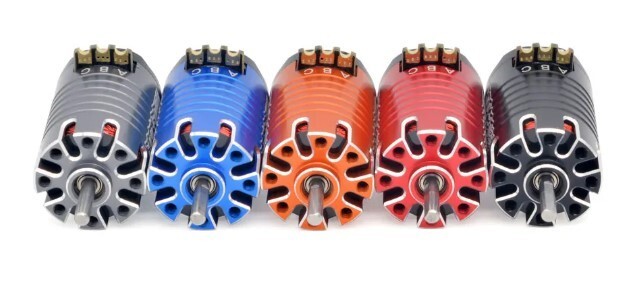

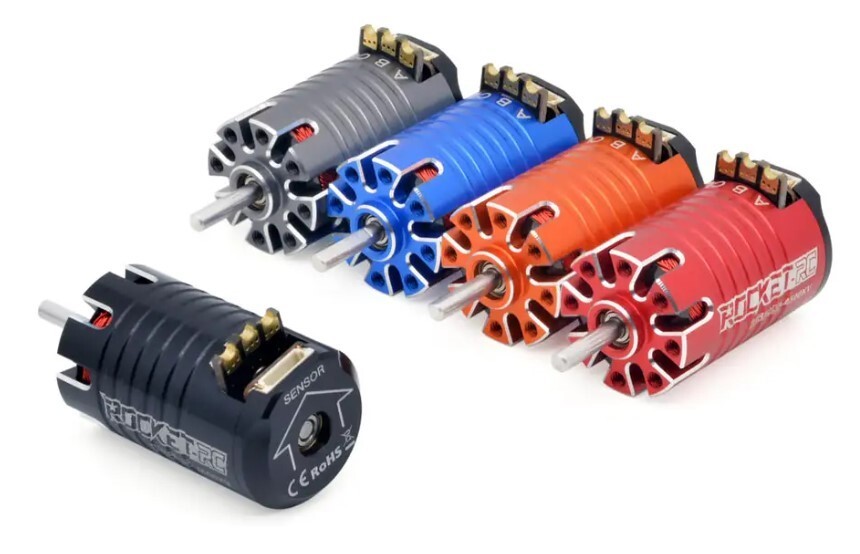

Color: Black/Red/Orange/Blue/Titanium Color is optional
KV(RPM/Volt): 6800 (13.5T)
Max Voltage: 8.0V
Max Amps: 12A
IO: 0.60A
Resistance: 0.195m?
KV(RPM/Volt): 3500 (25.5T)
Max Voltage: 8.4V
Max Amps: 8A
IO: 0.25A
Resistance: 0.652m?
Contents Include
1 x MINI 1525 Brushless Motor
1x Sensored Motor/ESC 5-Pin Connector
1x User Manual
1x Deluxe Plastic Motor Case
The Surpass Hobby Rocket-RC Mini Sensored Brushless Motor 3500kv or 6800kv Works great with the Hobbywing EZ-Run Brushless Sensored ESC or the New Surpass Hobby Rocket-RC Mini 30a Sensored ESC, both available in my store.
