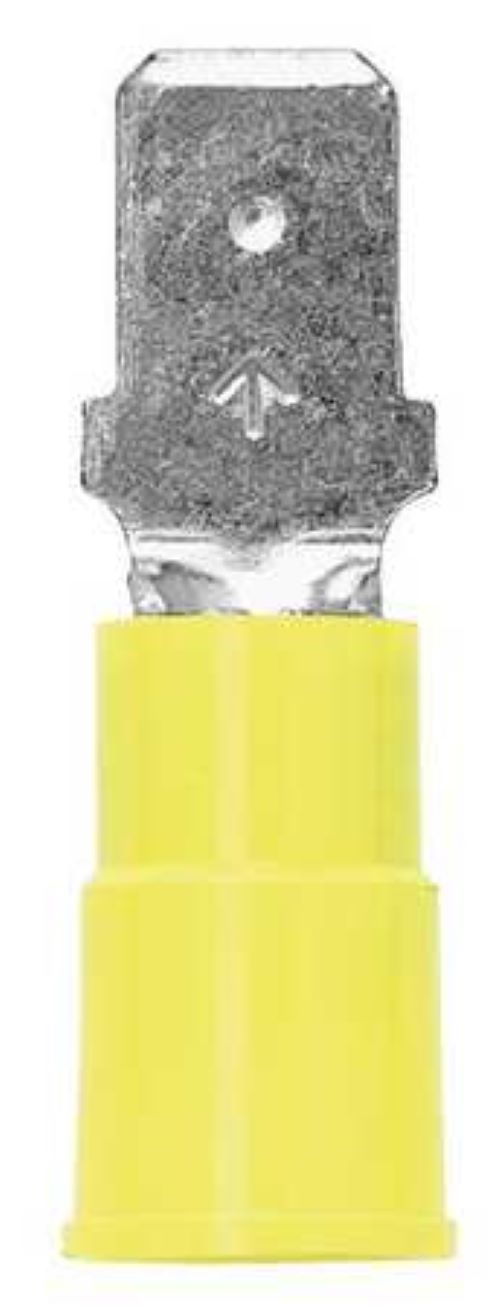

mtv10-250q male tab 3m 12-10 awg 054007704553 05112860027 insulation type: vinyl fully insulated temperature rating: -40 to 221 deg f approval: ul 310, csa c22.2 additional information: barrel style butted; overall size 1.05 inch l; barrel size 0.15 inch id x 0.25 inch l; maximum insulation diameter 0.25 inch; voltage rating 600 v (building wire), 1000 v (signs, fixtures); terminal material etp copper catalog number: mtv10250q brand name: highland[tm] type: flared, funnel entry tab size: 0.25 inch w x 0.032 inch thk minimum conductor size: 12 awg maximum conductor size: 10 awg color: yellow catalog description: 3m highland color-coded standard male disconnect terminal offers superior holding force while allowing for quick and easy disconnect. the terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees f (-40 to 105 degrees c). its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. category: small terminals connectors full technical description: flared, funnel entry 12 awg min. conductor size; 10 awg max. conductor size; ul 310, csa c22.2 approval; -40 to 221 deg f temperature rating vinyl fully insulated insulation 0.25 inch w x 0.032 inch thk tab size; highland[tm] brand; barrel style butted; overall size 1.05 inch l; barrel size 0.15 inch id x 0.25 inch l; maximum insulation diameter 0.25 inch; voltage rating 600 v building wire, 1000 v signs, fixtures; terminal material etp copper made in USA: yes manufacturer brand: 3m mro solutions product description: mtv10-250q highland vinyl insulated male disconnect terminal, awg 12-10, 25/bag male disconnect 1.45 oz 511286002816 0511286002816
