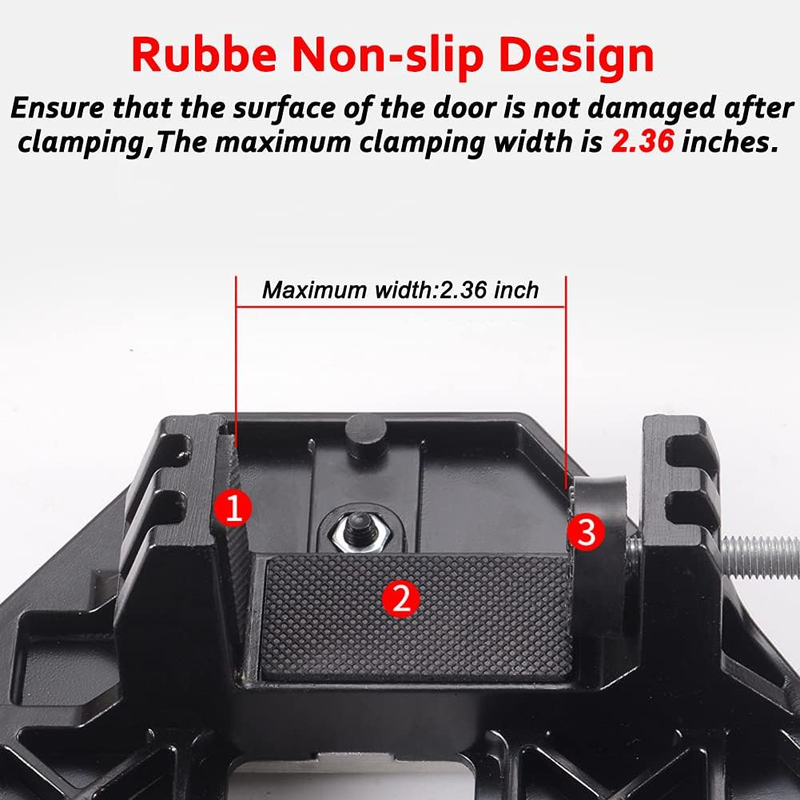

Store New Arrivals Add to Favorite View Feedback Contact Aluminum Alloy Door Hinge Jig Woodworking Hole Opener Slotting Locator W Description Item model number Hinge Jig Unit Count 1.0 Count Batteries Required? No Finish Unfinished Hole Count 6 Mounting Type Door Mount Material Aluminum Item Weight 3.87 pounds Batteries Included? No Finish Type Unfinished Product Dimensions 13.58"L x 8.66"W Number Of Pieces 1 ?FUNCTION?DUEBEL wooden door hinge hole opener is designed for wooden door hinge groove, lock body guide plate groove and other slotting applications. Any lock and hinge can be fitted in a matter of a few minutes, speeding up the task immensely when compared to traditional methods, and with minimal effort for maximum productivity and efficiency. ?EASY TO USE?The length and width positioning supports flexible adjustment in four directions, accurate positioning and fast slotting rate. The puncher with its own scale, convenient and accurate. The maximum opening is 18 cm, which is easy to adjust and use. ?FAST CLAMPING SAFE CLAMPING?No tools required, fast clamping: hand-tightened screws, fast clamping, efficient work. Safe clamping, no damage to the facade: the clamping part adopts rubber anti-skid design to ensure that the surface of the wooden door will not be damaged. It is the choice of professional woodworkers. Maximum clamping: 6CM. ?UNIQUE DESIGN + QUALITY MATERIAL = PROLONG SERVICE LIFE?DUEBEL hinge drilling plate is equipped with a stainless steel threaded sleeve in screw hole, which effectively protects the internal thread of fixture and prolongs the service life. DUEBEL hinge hole guide adopts an integrated aluminum alloy one-piece molding design, lightweight, strong, sturdy and durable, has long service life. ?TIPS?The hinge drilling plate needs to be used with the trimming machine. After grooving is completed, all corners are rounded and need to be repaired to a right angle before installation. Product description Install the lock body guide plate 1.Mark the position of the lock body guide plate on the wooden door. 2.Put the slotted retainer on the wooden door and fix it (clamp by tightening the black nut). 3.Using the wood router to slot. 4.Use a chisel to chisel away the curved part to make the edge flat. 5.Complete the slot and install the lock body guide plate. Install the hinge 1.Mark the position of the hinge on the wooden door. 2.Put the slotted retainer on the wooden door and fix it (clamp by tightening the black nut). 3.Adjust the screws on the four sides to determine the working range of the wood router. 4.Adjust the depth of the blade of the wood router, and set the blade to extend beyond the edge of the door. 5.Slotting with the wooden router. 6.There is a certain chance that the edge of the door will be damaged when grooving (the material of the wood and the work of the cutter head may cause it),so don't hollow out all the wood at the edge. 7.Use a chisel to chisel off the curved and reserved sections, making sure the edges are flat. 8.Finish slotting and install hinges. ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help.
