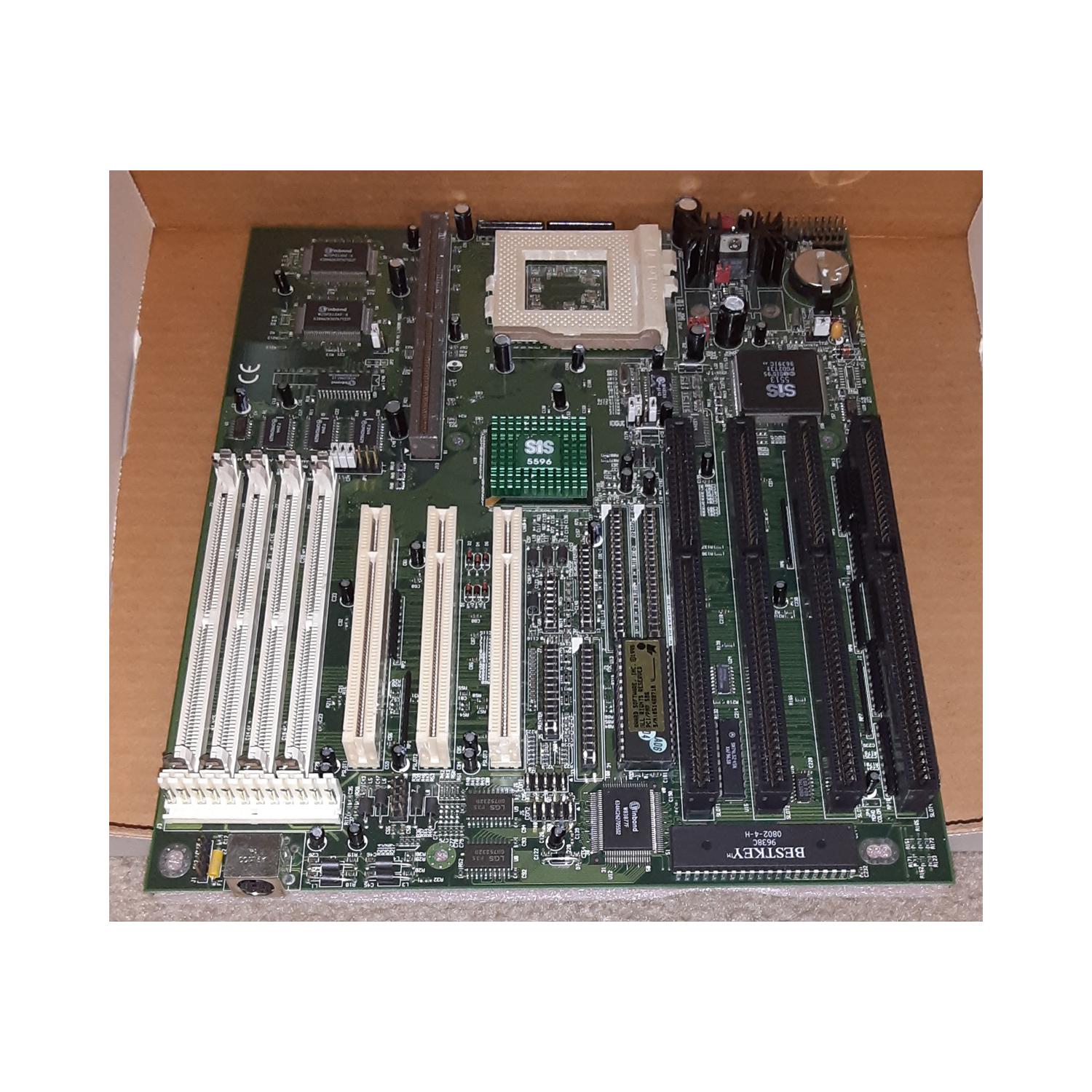

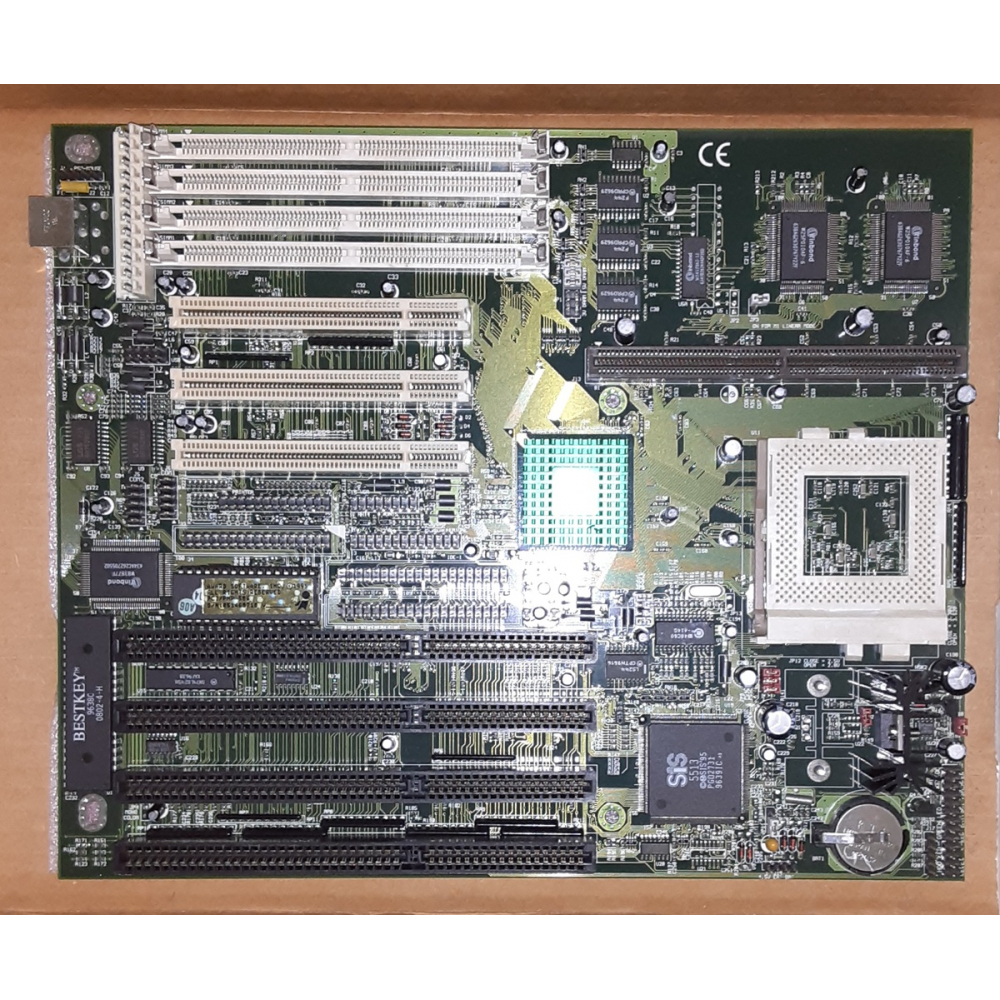

SQ585 Motherboard Specification CPU: CPU speed/voltage support may be dependant upon motherboard/BIOS revision Intel Pentium Family (P54C/CT/CTB/P55C) 75 - 200Mhz and Cyrix 6x86 Intel ZIF socket 7 for CPU Chipset: SiS 5596 BGA, 5513 PCI/ISA Chipset and Winbond I/O Controller Cache Memory: Support 256 PBurst onboard upgradable to 512K via PnP COAST Module. System Memory: Support both Fast Page and EDO DRAM 4 x 72 pin SIMM sockets on board for 4/8/16/32 MB, 70ns or Faster, FP/EDO DRAM Modules Support 8-128MB Memory Capacity On Board PCI IDE: 2 X PCI IDE Ports(Up to 4 IDE Devices) Support PIO Mode 3 and 4 On board I/O : 1 Floppy Port(up to 2.88 MB) 1 Parallel Port(ECP, EPP) 2 Serial Ports(16C550 Fast UART Compatible) 1 IrDA TX/RX Port shared with COM 2(SQ599BN only) 1 AT Keyboard Port 1 PS/2 Mouse Header 2 Standard USB Headers(48MHz) VGA Graphic: 64bit PCI Graphics Accelerator Software 3D Graphics for Games UMA architecture w/DCI Support 1to 2 MB Video DRAM MPEG Full Motion Video at 30fps BIOS : 1M-bit Flash EPROM Award PCI BIOS with Green and Plug and Play Function Expansion Slots: 3 x 32 bit PCI Slots 4 x 16 bit ISA Slots Board size : Baby AT Size: 8.75" x 10.12"
