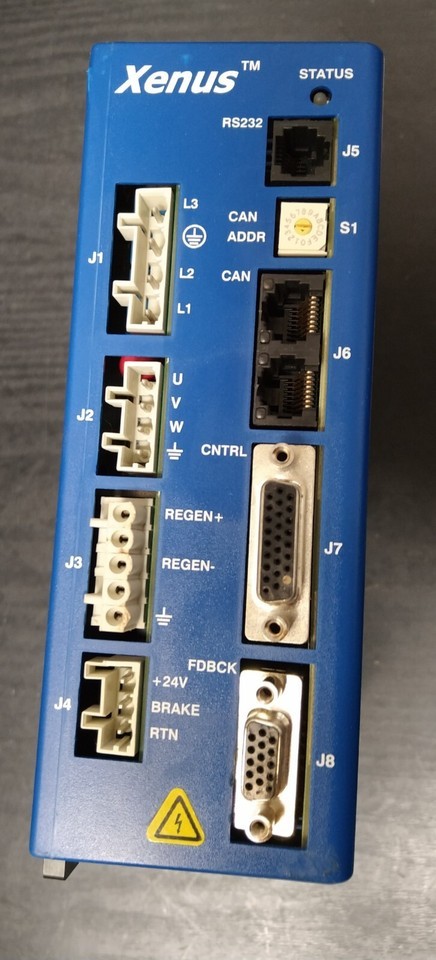

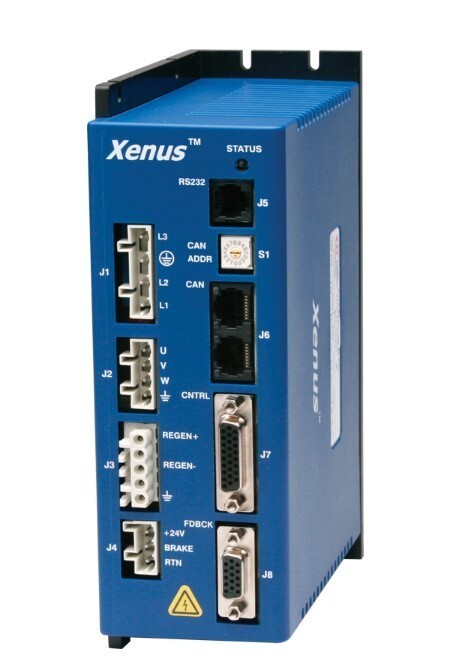

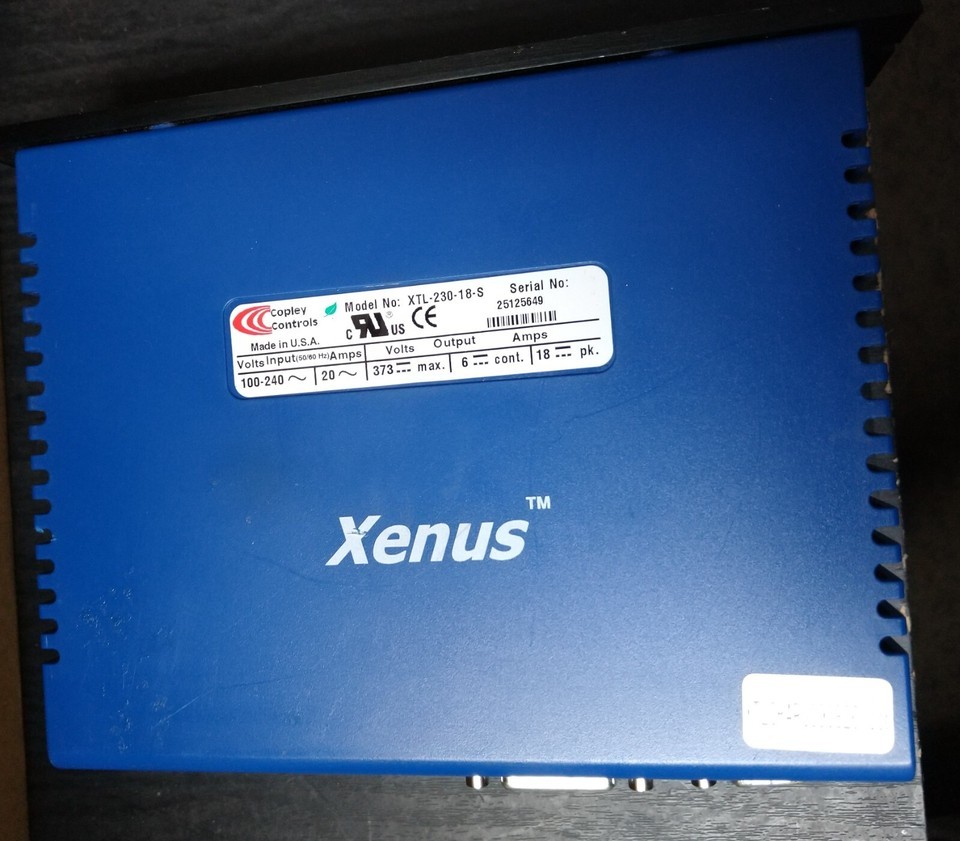

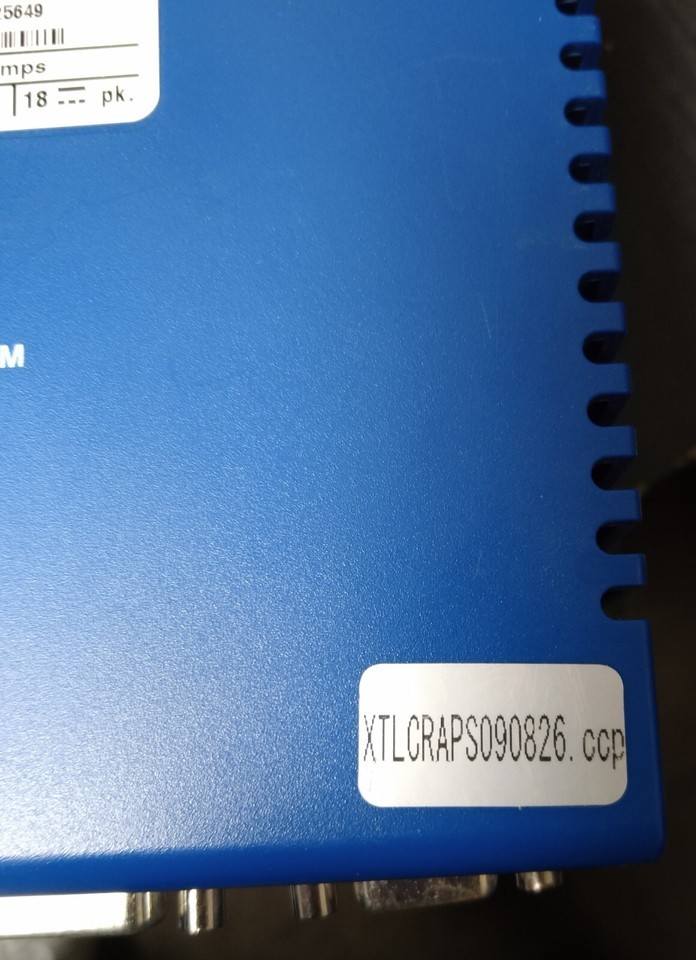

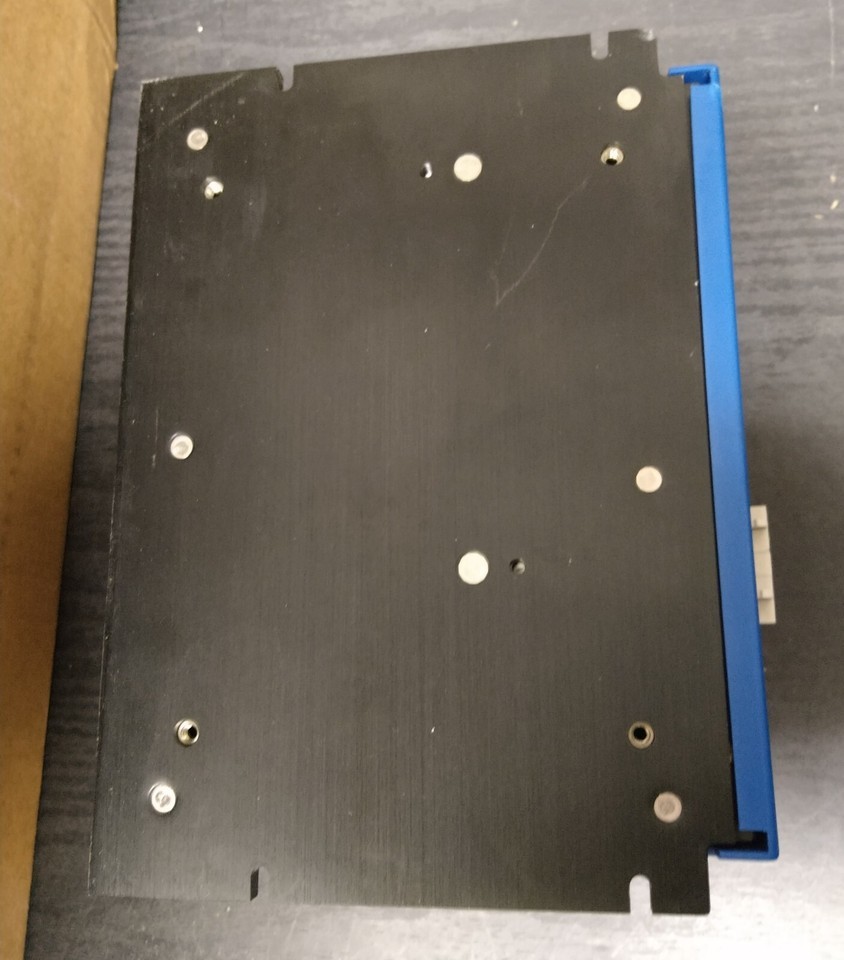

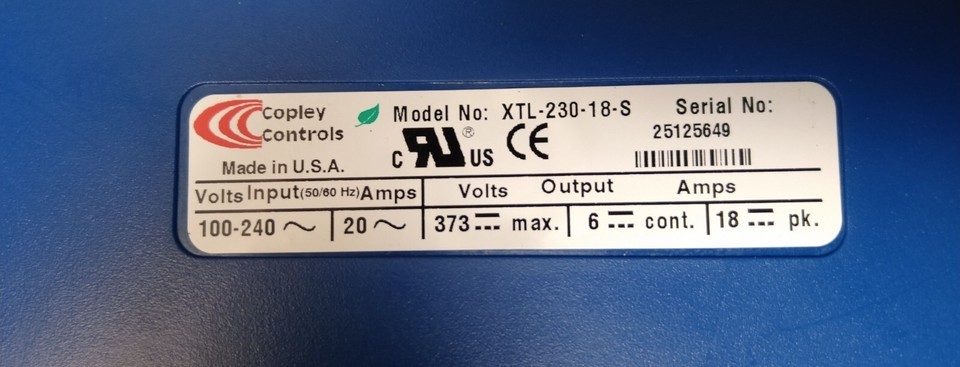

Copley Controls XENUS XTL-230-18-S NOTE: THIS IS OPEN BOX AND UNTESTED. Our vendor claims that it was open box and unused, but since I cannot test it, it is being sold as USED and UNTESTED. Please look at the pictures. What you see is what you will receive! Here is the info I found out about it online: The XTL panel is an AC line operated package delivering power up to 6kW. A +24 Vdc input powers control circuits ensuring keep-alive operation. Control interfaces include CANopen as well as traditional analog commands. Incremental encoder feedback is standard with optional resolver and analog encoder interfaces. Description Xenus combines CANopen networking with 100% digital control of brushless or brush motors in an off-line powered package that can operate from single or three-phase mains with continuous power output to 4 kW. Standard models use quad A/B digital encoders for feedback. Two other versions are available for use with resolvers or sin/cos analog encoders. Xenus operates as a Motion Control Device under the DSP-402 protocol of the CAnopen DS-301 V4.01 (En 50325-4) application layer. DSP-402 modes supported include: Profile Position, Profile Velocity, Profile Torque, Interpolated Position (PVT), and Homing. Drive commissioning is fast and simple using CME 2 software operating under Windows communicating with Xenus via CAN or an RS-232 link. CAN address selection is by a 16-position rotary switch on the front panel. If there are more than fifteen devices on a CAN bus, the additional address bits needed can come from programmable inputs, or can be set in flash memory. Profile Position Mode does a complete motion index on command with S-curve acceleration deceleration, top speed, and distance programmable. In PVT mode, the controller sends out a sequence of points each of which is an increment of a larger, more complex move than a single index or profile. The drive then uses cubic polynomial interpolation to ?connect the dots? such that the motor reaches each point (Position) at the specified velocity (Velocity) at the prescribed time (Time). Homing mode is configurable to work with a variety of limit, index, and home switches such that the drive moves the motor into a position that has an absolute reference to some part of the machine. Eleven logic inputs are programmable as limit or home switches, stepper/encoder pulse inputs, reset, digital torque or velocity reference, or motor over-temperature. A twelfth input is dedicated to the drive Enable function. Three programmable logic outputs are for reporting a drive fault or other status indications. A fourth optically-isolated output can drive a motor brake from the external +24 Vdc power supply or can be programmed as a logic output. In addition to CANopen motion commands, Xenus can operate as a stand-alone drive. Current and velocity modes accept 10 Vdc analog, digital 50% PWM or PWM/polarity inputs. In position mode inputs can be incremental position commands from step-motor controllers in Pulse/Direction or CW/CCW format, 10 Vdc analog, or A/B quadrature commands from a master-encoder. Pulse to position ratio is programmable for electronic gearing. Power output of the drive varies with the input power which can range from 100 to 240 Vac, and from 47 to 63 Hz. Either single or three phase mains can be used giving Xenus the ability to work in the widest possible range of industrial settings. Signal and control circuits are isolated from the high-voltage power supply and inverter stage that connect to the mains. A +24 Vdc input powers control circuits for keep-alive operation permitting the drive power stage to be completely powered down without losing position information or communications with the control system. Control Modes Indexer, Point-to-Point, PVT Camming, Gearing, Position, Velocity, Torque Command Interface Stepper commands Single-ended or Differential selectable CANopen ASCII and discrete I/O 10V position/velocity/torque command PWM velocity/torque command Master encoder (Gearing/Camming) Communications CANopen RS232 Feedback Digital quad A/B encoder Analog sin/cos encoder (-S versions) Resolver (-R versions) Secondary encoder / emulated encoder out Digital Halls I/O - Digital 12 inputs, 4 outputs Accessories External regen resistors External edge filter Dimensions: in [mm] 7.6 x 5.6 x 2.6 [192 x 142 x 65] Model No.: XTL-230-18, XTL-230-18-S, XTL-230-36, XTL-230-36-S, XTL-230-40 *Add -S to part numbers above for sin/cos feedback, or add -R for resolver feedback models. --------------------------------------------------- *** PLEASE NOTE! Our store buys and sells a variety of new and used electronics, instruments, tools, antiques and many other items. We do our absolute best to thoroughly test all our merchandise and accurately describe and depict any flaw or defect we find. If you come across an issue that we have overlooked, please contact us - we will be happy to work with you to resolve the issue. *** We take our reputation seriously, we buy and sell online, so we understand the value of trust! If you are unsatisfied with your order, please contact us and we will work with you to resolve it to your satisfaction! Thanks for looking at our listing and supporting our small family business! SHELF: 23
