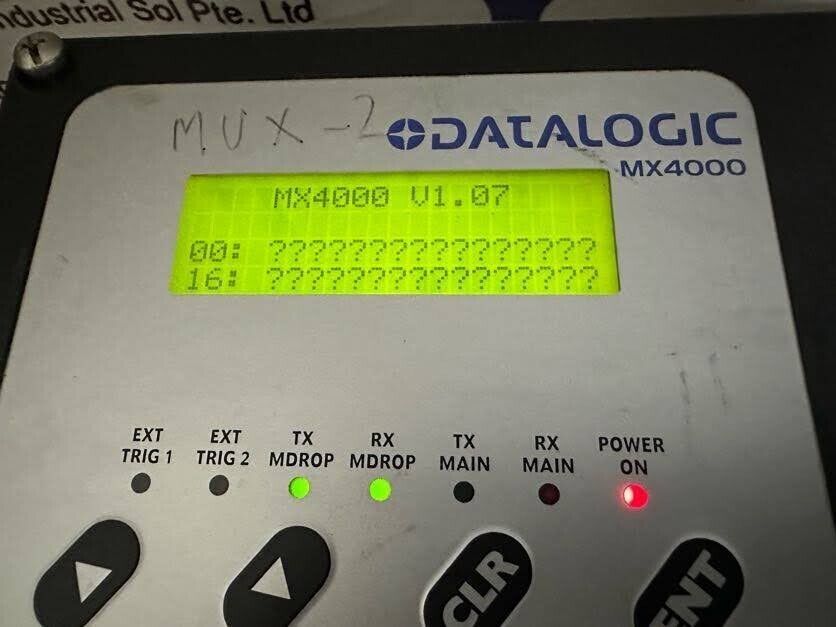

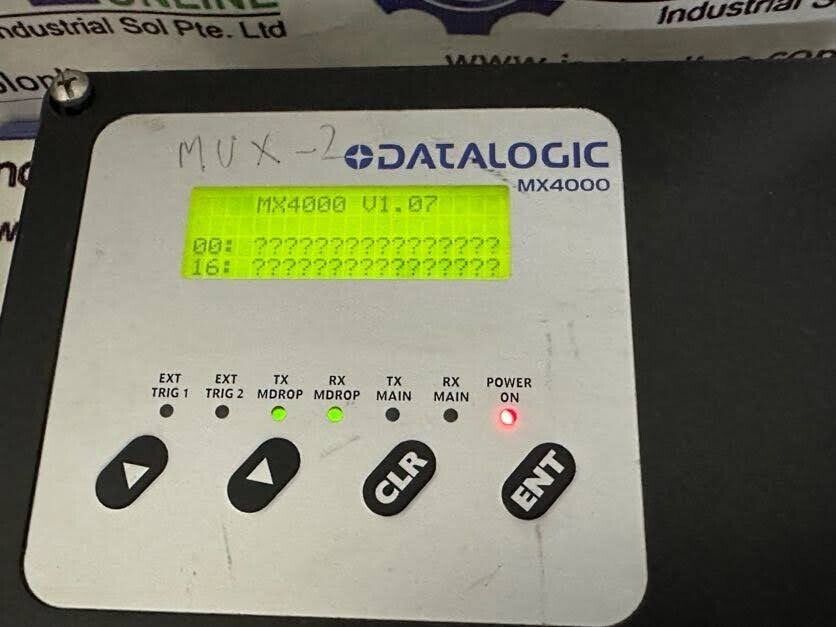

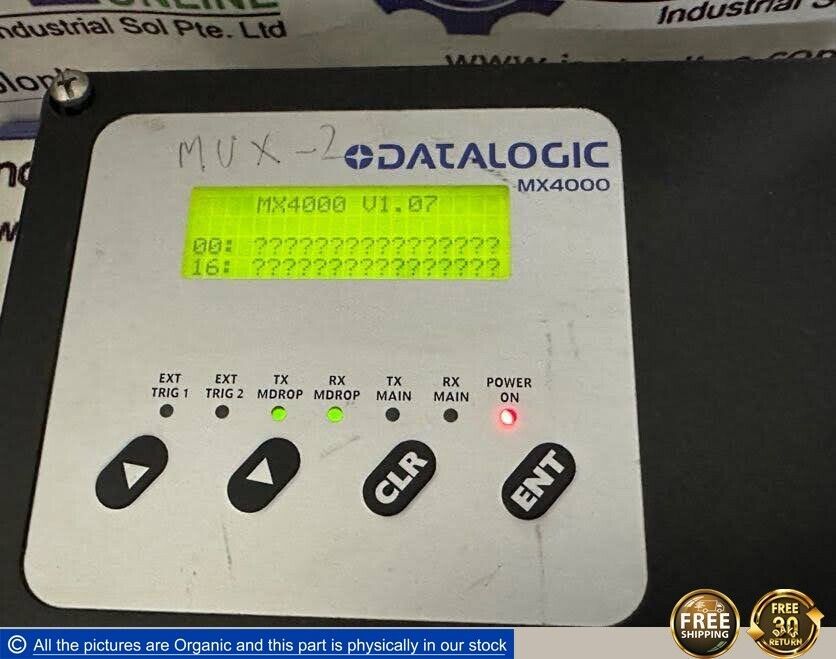

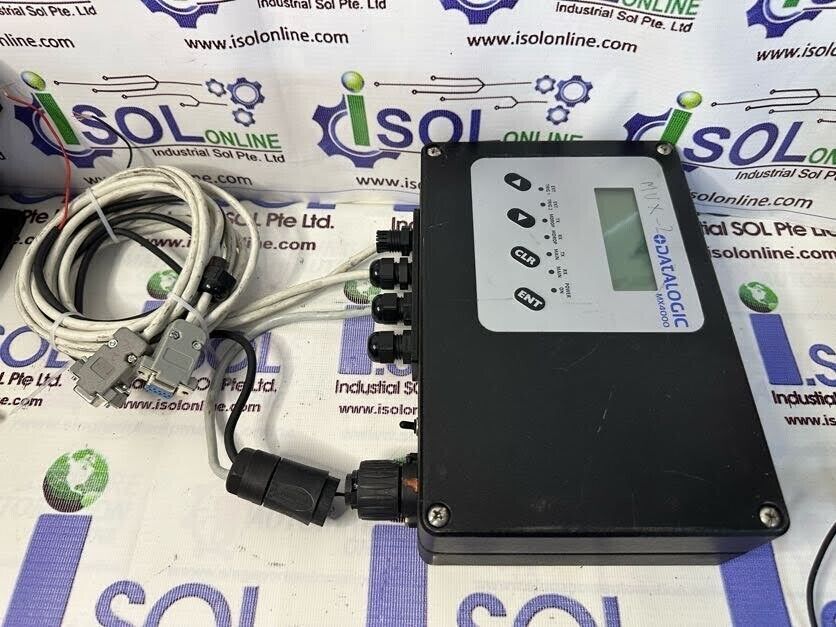

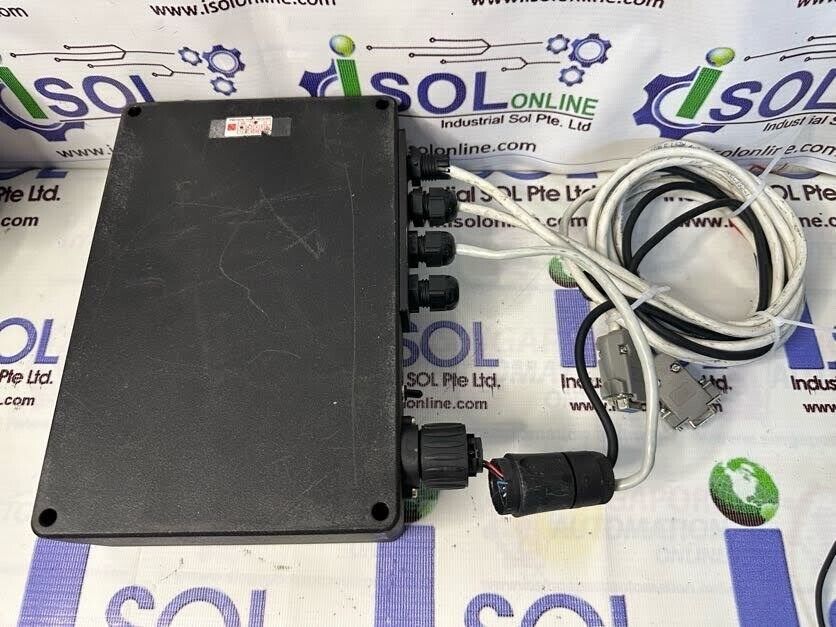

Visit and request live test run video and test report, Industrial Sol Pte Ltd Singapore, Jurong East - isolonline SHTEK240601 DNH Datalogic MX4000-1000 V1.07 Multiplexer Data Concentrator Controller Scanner Display Interface Scanning Multiplexer Module MX4000-1000 RS485 NETWORK/HOST STD Input: 10-30VDC , 0.2-0.6A With Interface Cable SPECIFICATIONS POWER SUPPLY: 10 to 30 Vdc MAX CONSUMPTION: 6 W HOST STANDARD INTERFACE: Programmable RS232 /RS485 Polled - non polled /20 mA C.L. /Up to 115.2 Kbauds PROFIBUS INTERFACE: Standard - DP protocol INTERBUS INTERFACE: Standard Interbus-S protocol OPTIONAL BUS INTERFACE: DeviceNet, Remote I/O, ModBus Plus, ModBus RTU, CANOpen and others (through optional interface boards) AUXILIARY INTERFACE: RS232/Up to 19.2 Kbauds INPUT SIGNAL: 2 digital inputs (Optocoupled NPN/PNP transistor) OUTPUT SIGNAL: 3 digital outputs (NPN transistor, open collector / emitter) LED INDICATORS: 7 communication status LEDs KEYPAD: 4 membrane keys DISPLAY: Backlit LCD, 20 characters on 4 lines CONFIGURATION METHOD MANUAL: Through the keypad CONFIGURATION METHOD AUTOMATIC: Through the serial interface (WINHOST) DIMENSIONS: 240 x 200 x 66 mm (9.45 x 7.87 x 2.6 in) WEIGHT: 1.95 Kg (4.29 lb) CASE MATERIAL: Aluminium OPERATING TEMPERATURE: 0 to 55 ?C (32 to 131 ?F) STORAGE TEMPERATURE: -20 to 70 ?C (-4 to 158 ?F) HUMIDITY: 90 % non condensing VIBRATION RESISTANCE: IEC 68-2-6 test FC 1.5 mm; 10 to 55 Hz; 2 hours on each axis SHOCK RESISTANCEIEC: 68-2-27 test EA 30 G; 11 ms; 3 shocks on each axis PROTECTION CLASS: IP58 (IP65 optional) FEATURES High speed data collection from up to 32 reading stations RS485 or LonWorks Bus for data collection Serial, Interbus-S, Profibus-DP host interfaces Multiplexer set up through WINHOST or backlit display and keypad WINHOST remote scanner control and set up Rugged industrial housing APPLICATIONS Parcel sorting systems Material tracking systems Work-in-progress control Quality control MX4000 Industrial Multiplexer Datalogic data concentrator, MX4000, offers high communication performance, excellent connectivity, and advanced software tools for monitoring and control of data collection networks. MX4000 has been designed for high speed data collection in a multidrop net-work of Datalogic bar code readers. Through MX4000, a multi-station reading system or a single reading station in a multi-head configuration for 360 reading around the conveyor, can be realized in a very simple way. Thanks to a multitasking application program, the MX4000 unit collects data, controls the status of the readers and elaborates statistics. MX4000 is fitted with 2 serial interfaces for communication with the host computer and makes connection to the most popular industrial Buses very easy. Specific models for the most popular Profibus-DP and Interbus-S are available. Virtually all industrial buses can be connected through standard interface boards. MX4000 is easily configured by the WINHOST software program. Through theMX4000, WINHOST can perform set up procedures on the connected scanners with benefits in time saving, reliability and flexibility. MX4000 allows complete performance monitoring of each scanner and controls the networks status, providing very useful information for maintenance service. Datalogic data concentrator is equipped with a keypad, backlit display and rugged industrial housing resistant to harsh environments. MX4000 is the ideal solution for todays requirements, and opens a window for tomorrows needs. ** Free Expedited / Express Shipping. ** Free Return (30 Days). Power on and tested item testing picture are attached. *Interface Cable is included. May have some marks and scratches due to old stock. *Product Label is missing. All the pictures are Organic and this part is physically in our stock. Condition and Details: This is a used item in good condition Not In the Original Packing No Accessories / Cables or probe (only what showing in actually given pictures and in the description). Old Stock. Shipping: Usually, we ship same business day, subject to clear funds into our account Standard order processing time is 2 to 3 business days Item will be packed as per International Standard, International Orders: DHL / SingPost / EMS * International buyers pay all custom, duties, taxes brokerage fees at their end Warranty and Returns: Warranty: 30 DAYS Money Back or Replacement Return Accepted. Product Returns: Returns: Return to Base Warranty, Any type of power failure/burn / physical damage / tempered seal will void the warranty. Payment: Payment Methods: PayPal Credit Cards Wire-transfer: Kindly contact us for payment instructions International buyers without PayPal: Kindly contact us before bidding About Us: We deal in Semiconductor Wafer Handling Parts/Components/machinery and types of equipment. A Verity of Industrial Automation Equipment and Parts. Industrial PCs, PLCs, HMI, Controllers, and Sensors. Industrial robotics, Data Acquisition, and Test Measurement. Industrial Single Board Computers. Marine Parts / Equipments. Oil Gas and offshore station. Lab and Research Equipments. We Source, We Refurbish, We Service and We also Repair ?please contact for any further detailed inquiries.
