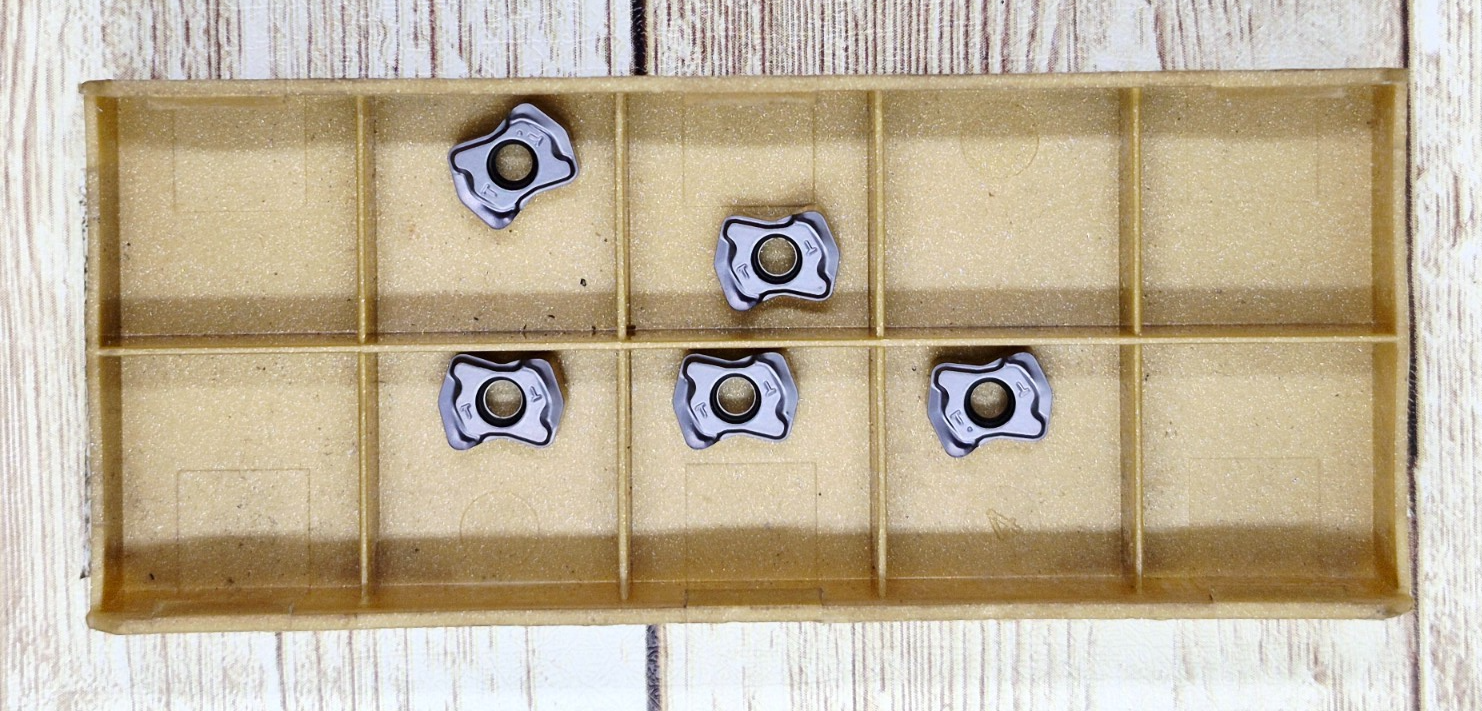

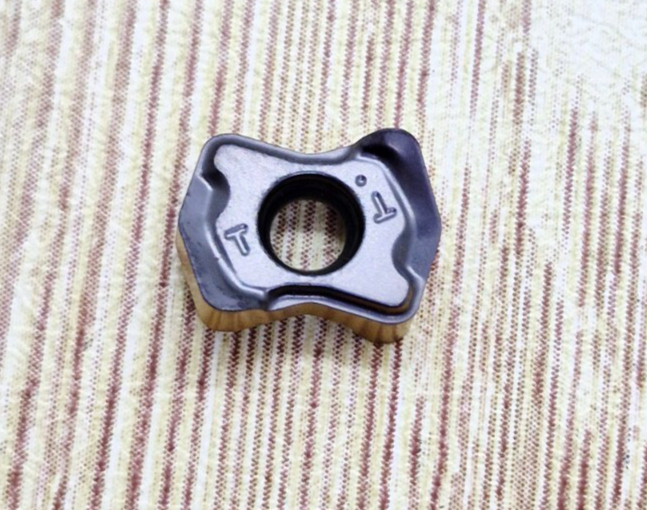

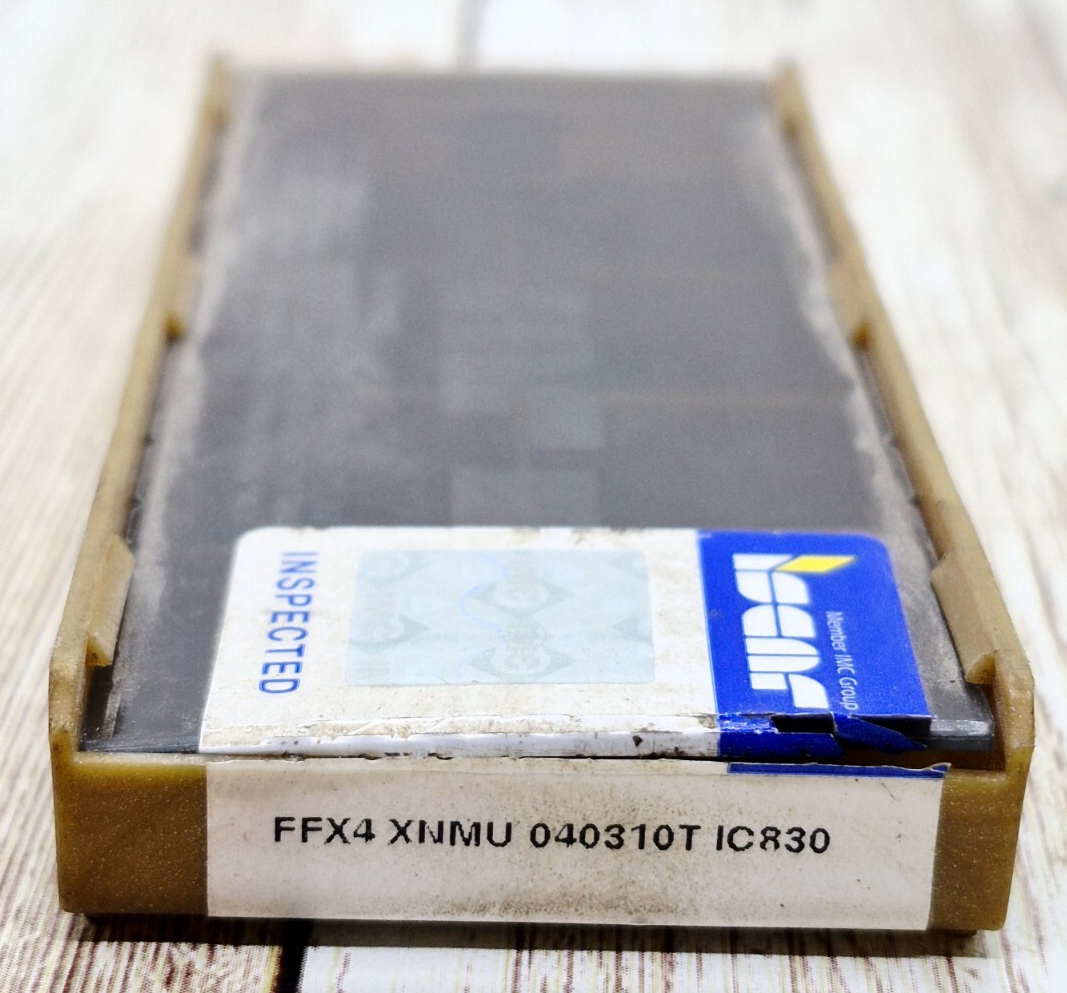

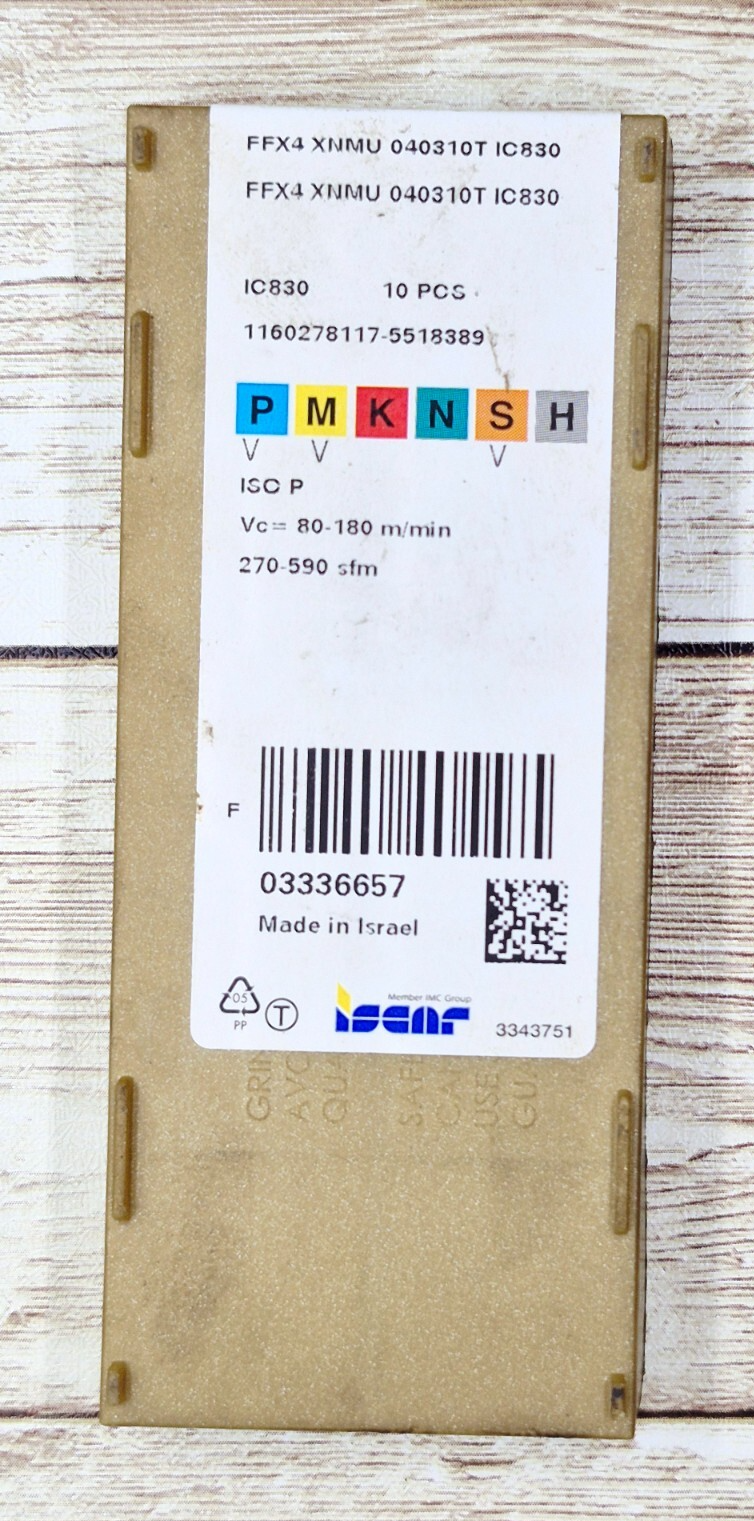

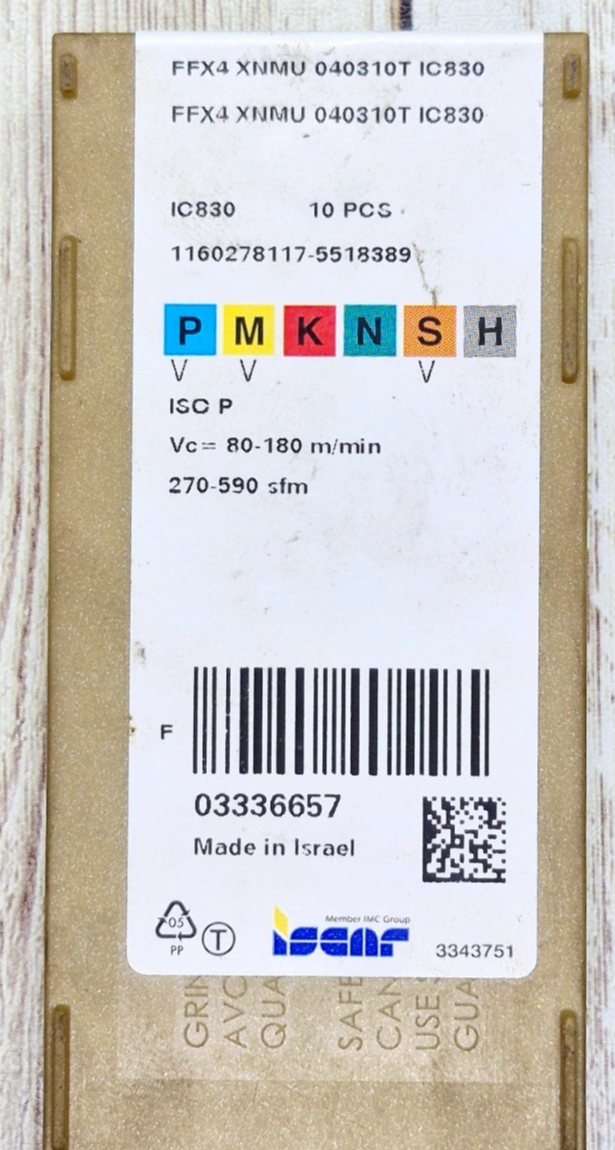

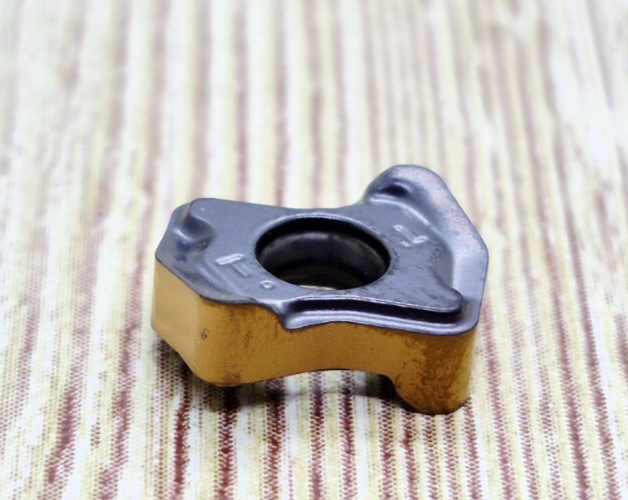

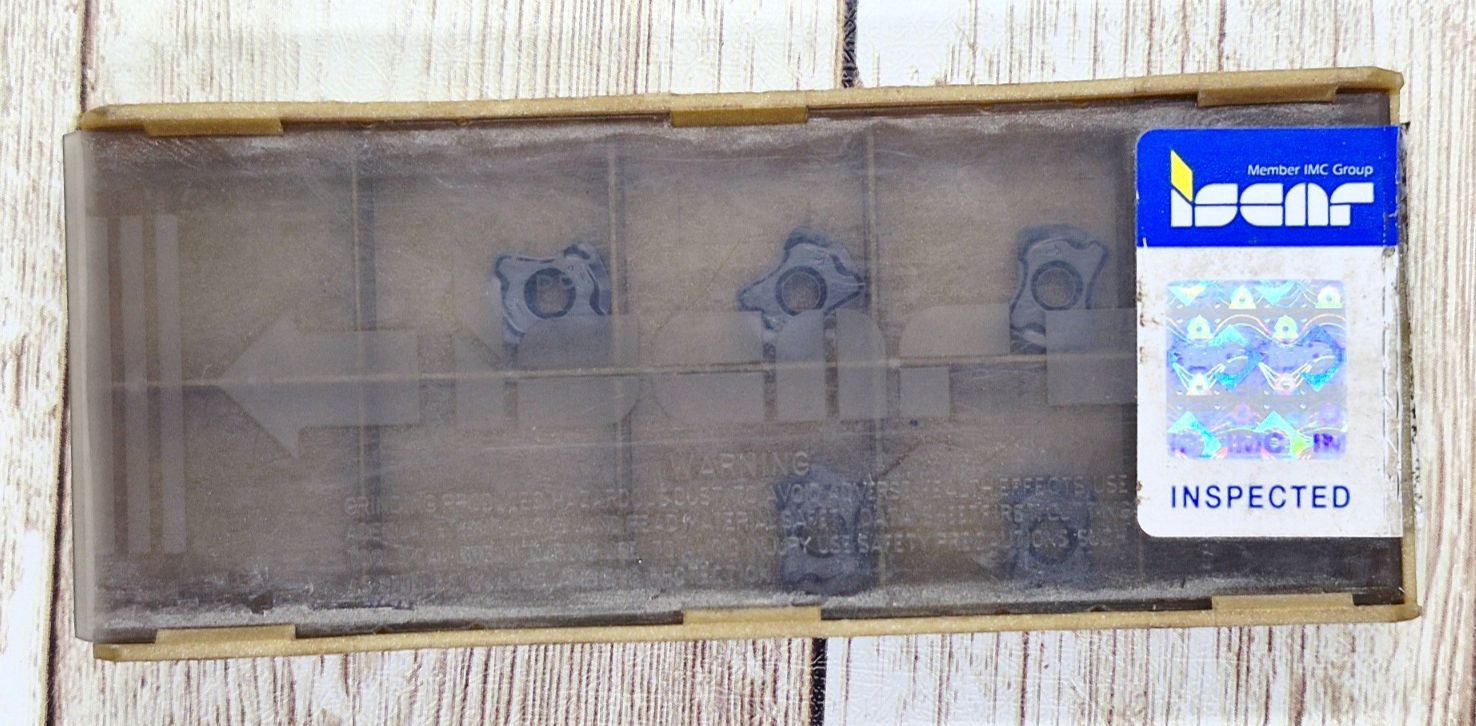

New open box. Buyer receives a pack of 5 inserts as shown. Milling Insert: ANSI FFX4 XNMU 040310T IC830, ISO FFX4 XNMU 040310T, IC830, Solid Carbide AlTiN TiN Finish, 3.95 mm Thick, 7.16 mm Wide Specifications Insert Style XNMU Insert Size 04 Insert Material Solid Carbide Insert Shape Bone Manufacturer Grade IC830 Corner Radius (Decimal Inch) 0.0394 Corner Radius (mm) 1.00 Number Of Cutting Edges 4 Thickness (Decimal Inch - 4 Decimals) 0.1555 Thickness (mm) 3.95 Coating/Finish AlTiN; TiN Relief Angle 0.00 Insert Size Code 040310 Inscribed Circle (Decimal Inch) 0.2820 Thickness Range (Decimal Inch) 0.1500 to 0.1750 Inscribed Circle Range (Decimal Inch) 0.2500 to 0.3000 Length Range (Decimal Inch) 0.3200 to 0.4000 Insert Hand Right Hand Maximum Depth of Cut (Decimal Inch) 0.0315 Maximum Depth of Cut (mm) 1.20 Series LOGIQ4FEED Coating Process PVD Cutting Edge Effective Length (Decimal Inch) 0.0315 Rake Negative Primary Workpiece Material Stainless Steel; Superalloys Titanium; Steel Primary Workpiece Material Code P; S; M Secondary Workpiece Material Code S Ansi Code FFX4 XNMU 040310T IC830 Iso Code FFX4 XNMU 040310T Standards ISO 13399; ANSI Cutting Edge Style T-Land Manufacturers Catalog Number FFX4 XNMU 040310T IC830 Cutter Series Compatibility FFX4 Chip Breaker T UNSPSC Code 23291601 Material Application Stainless Steel; Superalloys Titanium; Steel Insert Holding Method Screw Coating Classification Sumotec PVD Single or Double Sided Insert Double Included Angle Degree 90 Length (mm) 9.58 Width (Decimal Inch - 4 Decimals) 0.2820 Width (mm - 2 Decimals) 7.16 Multi-Use Tool Yes Length (Decimal Inch - 4 Decimals) 0.3770 Country of Origin Israel
