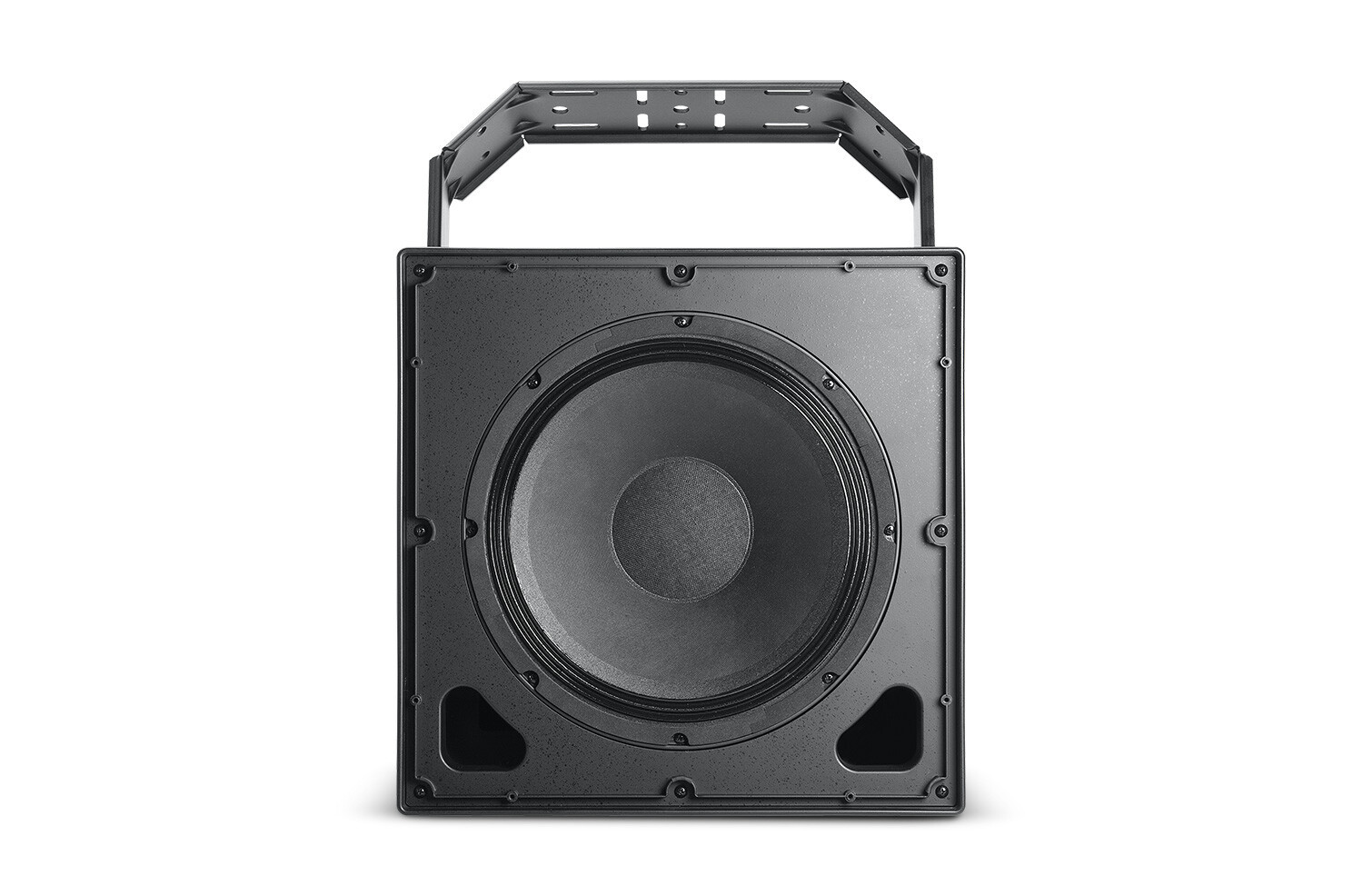

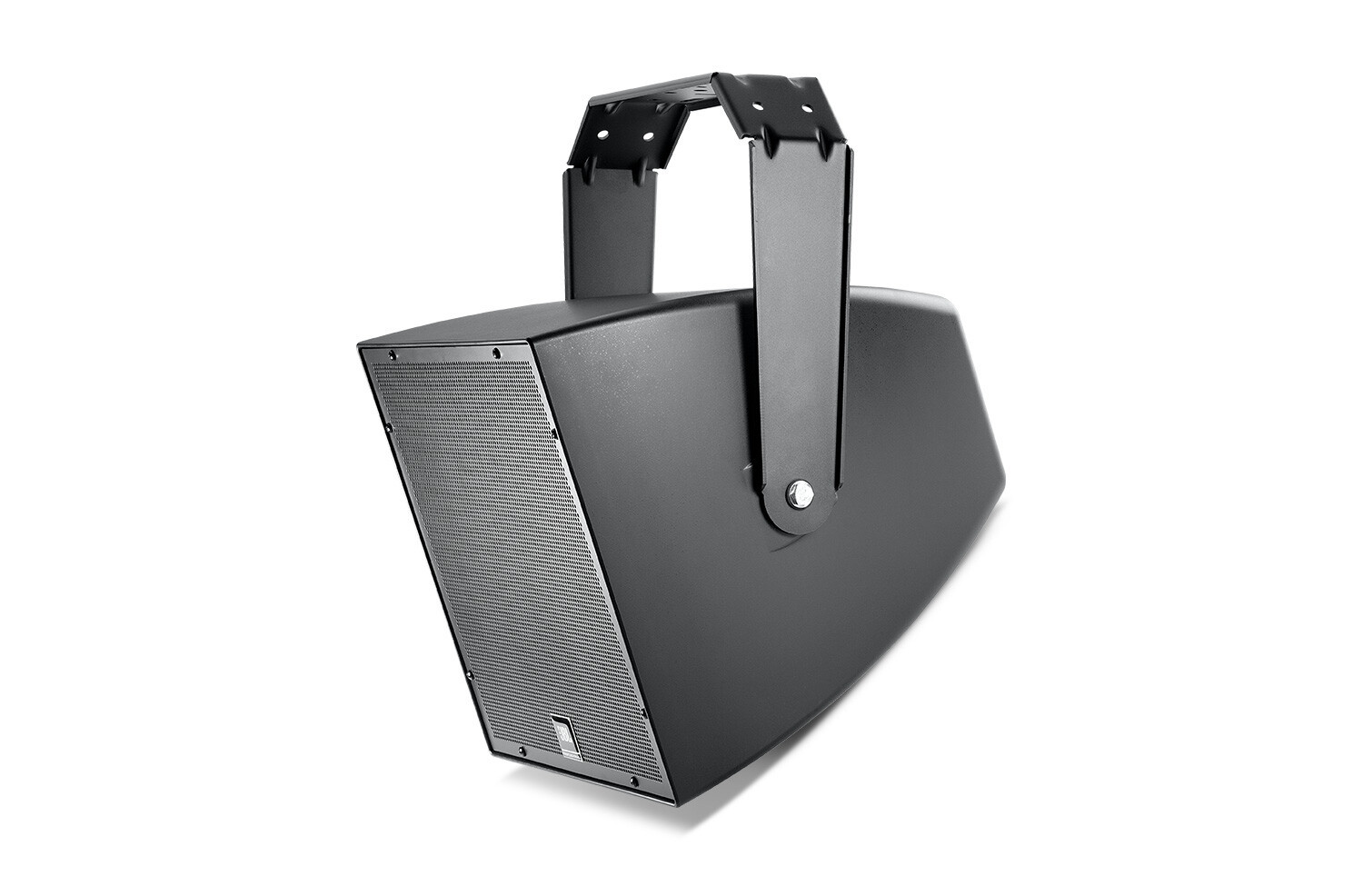

JBL AWC129-BK 12" All Weather Compact 2 Way Hanging Loudspeaker Music Paging The AWC129-BK is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types. Features: Highly weather-resistant IP56 rating Consistent 90 x 90 broadband pattern control 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil. 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm. Extraordinary clarity for speech, with extended frequency response for music. Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. Overload protection 55 Hz ? 20 kHz frequency response. 200 Watt 70V/100V multi-tap (built-in transformer) direct 8? low-impedance. Specifications: Frequency Range (-10dB): 55 Hz ? 20 kHz Frequency Response (3 dB): 80 Hz ? 20 kHz Coverage Pattern: 90 x 90 Directivity Factor (Q): 10.1 (1 k ? 16 kHz) Directivity Index (DI): 9.5 dB (1k ? 16 kHz) System Power Rating: 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz ? 20 kHz) Maximum SPL (1m): Direct 8?: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB Crossover Network: 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF Nominal Impedance: 8 ohms Transformer Taps: 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W LF Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil. HF Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling. HF Driver Protection: Minimum audibility SonicGuard? HF overload protection Enclosure: ABS with Glass enclosure, heavily braced Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing. Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36") Environmental: IP56 per IEC529, with a minimum 5 downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature UV, and ASTM G85 for acid-air/salt-spray (336 hrs). Dimensions: 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back Colors: Available in gray (similar to Pantone 420C) and black (-BK) Net Weight (each): 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket Shipping Weight: 23.4 kg (51.5 lbs) Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel. Crossover Modes: Passive Nominal LF Driver Impedance: 8 ohms Suspension Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
