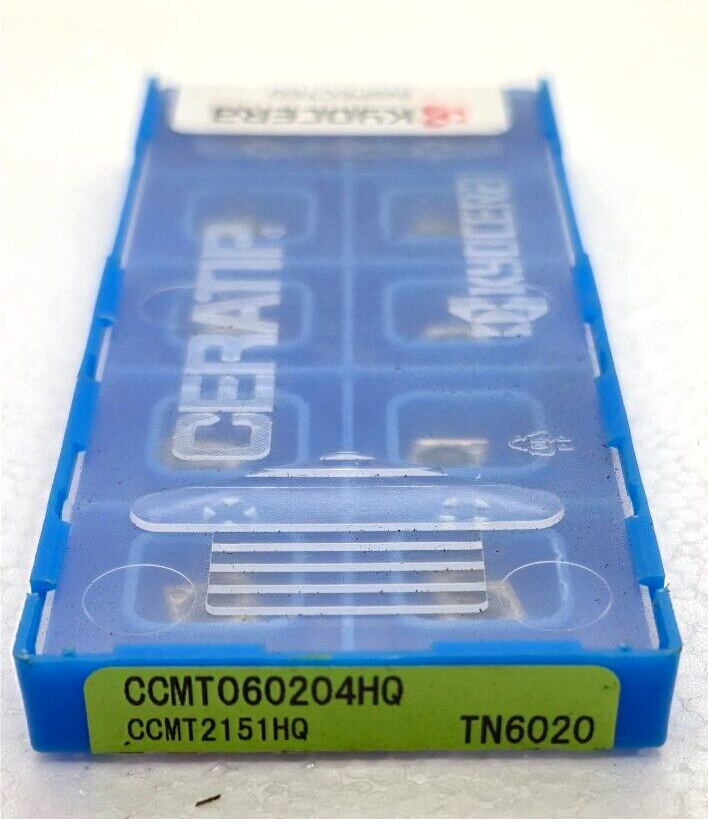

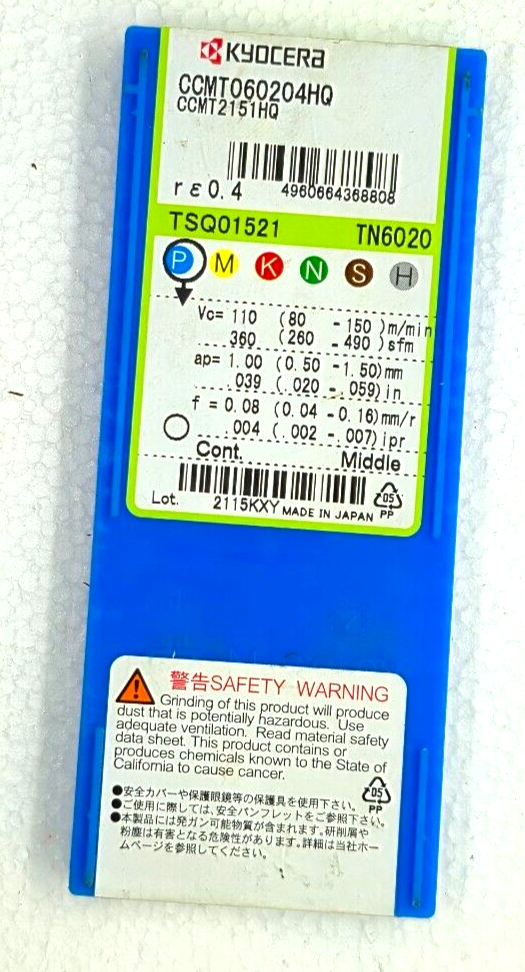

New unused inserts. 10 pieces. Specifications ANSI Insert Code CCMT2151 ISO Insert Code CCMT060204 Relief Angle 7 Insert Style CCMT Corner Radius (Inch) 1/64 Corner Radius (Decimal Inch) 0.0156 Included Angle 80 Manufacturer Grade PR1535 Coating/Finish MEGACOAT NANO Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/32 Insert Thickness (Decimal Inch) 0.0938 Series ISOI Inscribed Circle (Decimal Inch) 0.2500 Inscribed Circle (Inch) 1/4 Insert Material Carbide Insert Shape C - Diamond (Rhombic) 80-Deg Chip Breaker Operation Medium Machining; Finishing Grade Characteristics Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness Side Clearance Positive Number Of Cutting Edges 2 Insert Shape Code C Hole Diameter (Decimal Inch) 0.1102 Maximum Depth of Cut (Decimal Inch) 0.0833 Insert Holding Method Screw Width (Inch) 1/4 Clearance Code C Tolerance Code M Coating Process PVD Length Range (Decimal Inch) 0.0000 - 0.3000 Rake Positive Insert Length (Decimal Inch) 0.2500 Insert Length (Inch) 1/4 Primary Workpiece Material Superalloy; Stainless Steel Primary Workpiece Material Code P; S; M Iso Code CCMT060204HQ Manufacturers Catalog Number TLC01481 Material Grade S20; S30; M40; M30 Coating Classification PVD Chip Breaker HQ Rake Angle 15 Cutting Edge Style Honed Industry Standard Number CCMT2151HQPR1535 Width (Decimal Inch - 4 Decimals) 0.2500 Multi-Use Tool Yes Full Radius No Multi-Use Application External Turning; Chamfering; Facing; Internal Facing; Boring ANSI Size Code 2151 ISO Size Code 060204 (description exceeds maximum possible length)
