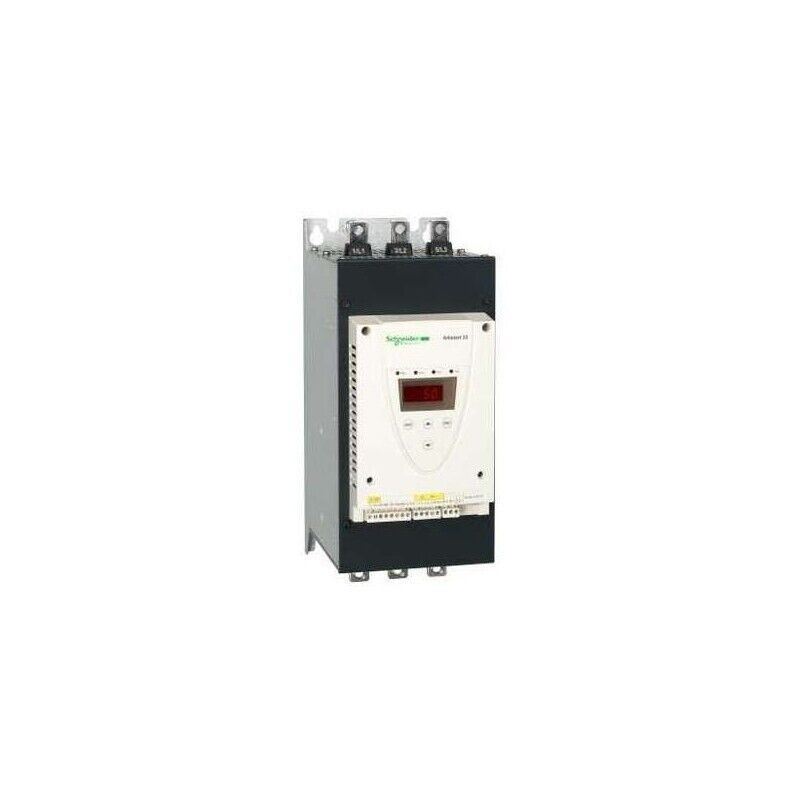

SKU: ATS22C11S6U UPC: 3606480167430 Condition: New Rohs Exemption Information: Yes Maximum Switching Current: 5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs Communication Port Protocol: Modbus Ptc Probe Input: 750 Ohm Pollution Degree: level 2 IEC 60664-1 Control Circuit Consumption: 20 W Device Connection: in the motor supply line Width: 150 mm Shock Resistance: 15 gn 11 ms IEC 60068-2-27 Discrete Output Type: relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Function Available: internal bypass Phase: 3 phase Minimum Switching Current: 100 mA 12 V DC relay outputs) Reach Regulation: Reference contains Substances of Very High Concern above the threshold Range Of Product: Altistart 22 Height: 356 mm Product Or Component Type: soft starter Product Destination: asynchronous motors [Us] Rated Supply Voltage: 208...600 V - 15...10 % China Rohs Regulation: X Physical Interface: RS485 multidrop Marking: CE Type Of Cooling: forced convection Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope) Noise Level: 56 dB Operating Altitude: = 3280.84 ft (1000 m) without derating || 3280.84... 6561.68 ft ( 1000... 2000 m) with current derating of 2.2 % per additional 100 m Installed Device: 31 Supply Voltage Limits: 177-660 V Type Of Start: start with torque control (current limited to 3.5 In) Ip Degree Of Protection: IP20 Depth: 229.5 mm Utilisation Category: AC-53A Protection Type: phase failure line || thermal protection motor || thermal protection starter Network Frequency: 45...66 Hz Ambient Air Temperature For Operation: -10-40 C without derating) || 40-60 C with current derating 2.2 % per C) Discrete Output Number: 2 Electromagnetic Compatibility: conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr Discrete Input Type: LI1, LI2, LI3) logic, 5 mA 20 kOhm Discrete Input Logic: positive logic LI1, LI2, LI3 20 V = 15 mA 79 V, = 2 mA Communication Data Link: serial Product Certifications: CSA || UL || C-tick || GOST || CCC Relative Humidity: 0-95 % without condensation or dripping water IEC 60068-2-3 Vibration Resistance: 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm 2-13 Hz)IEC 60068-2-6 Ambient Air Temperature For Storage: -25-70 C Assembly Style: with heat sink Transmission Rate: 4800, 9600 or 19200 bps Standards: IEC 60947-4-2 Output Current: 0.4...1 Icl adjustable Mercury Free: Yes Connector Type: 1 RJ45 Icl Starter Rating: 110 A connection in the motor supply line for standard applications California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Operating Position: vertical +/- 10 degree Factory Setting Current: 96 A Power Dissipation In W: 73 W for standard applications [Uc] Control Circuit Voltage: 110 V - 15...10 % 50/60 Hz Warranty: 18 months Supply Frequency: 50...60 Hz - 10...10 % Net Weight: 18 kg Component Name: ATS22 Product Specific Application: pumps and fans Maximum Horse Power Rating: 100 hp 575 V || 30 hp 208 V || 40 hp 230 V || 75 hp 460 V Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. Discrete Input Voltage: 110 V = 121 V Discrete Input Number: 3
