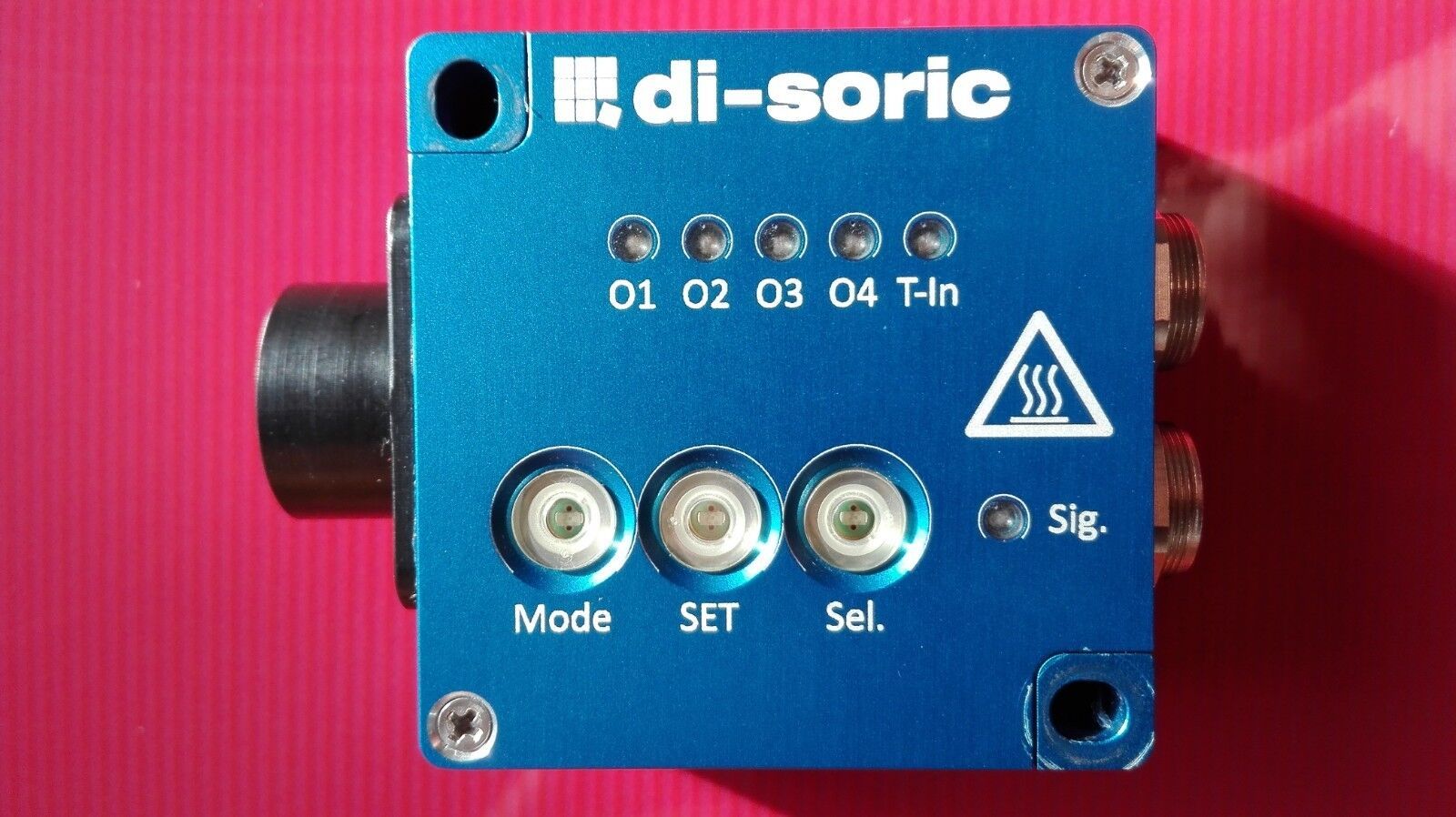

Purchased for an abandoned project, used only once It's basically new. Shipping via DHL For DHL shipping costs, please contact me. After we agree on the shipping costs, I will send the invoice. ECHNICAL INFORMATION (typ.) +20C, 24V DC Service voltage 18 ... 28 V DC No-load current 500 mA Control elements 3 Light spot size 5 ... 10 mm Emitting light source white light LED, to be switched off Operating distance 30 ... 60 mm Fiber-optic connection Fixed optics Colour memory internal 350 Number of sensing channels 1 Colour channels of sensor 4 (Teachable via buttons) 15 (Binary coating) Colour resolution DE Lab 1 Trigger input TRG 0 Teach input TRG 1 Switching output Push pull (4x), NO/NC Switching hysteresis 0 ... 255 % (10 % preset) Pulse stretching 0 ... 65535 ms adjustable Display 4 LEDs (Output state) 5 LEDs (programming) Voltage drop 2,0 V Response time/Scanning frequency 0,2 ms (with 5000 Hz: up to 350 colours evaluable) 0,1 ms (with 10000 Hz: up to 30 colours evaluable) 0,05 ms (with 20000 Hz: 3 colours evaluable) Response-/release time 0,05 ms 20.000 Hz Ambient temperature, operation -10 … +55 C Switching output coding 4 x (binary coded = 15 output conditions) 4 x (pnp + npn) Tolerance ranges 5 by button / using software arbitraily Ambient light compensation dynamic, can be switched off Protection class IP 54 Protection degree III, operation on protective low voltage Colour space mode XYZ / xyY / u’v’L* / L*a*b* / xyl (Non-self-shining objects) XYZ / xyY / u’v’L / xyl (Self-shining objects) Detection modes Minimum spacing (Assignment of measured colour to the stored colour with the smallest colour spacing) Check sphere (Check whether the measured colour is within a defined tolerance) Check cylinder (Check whether the measured colour is within a defined tolerance) Operating mode - (Continuous) - (External triggering) - (Externally triggered colour sequence detection) - (External teaching) - (Self-shining objects) - (Non-self-shining objects) - (Each colour can be assigned to any output) Casing material Aluminium anodized
