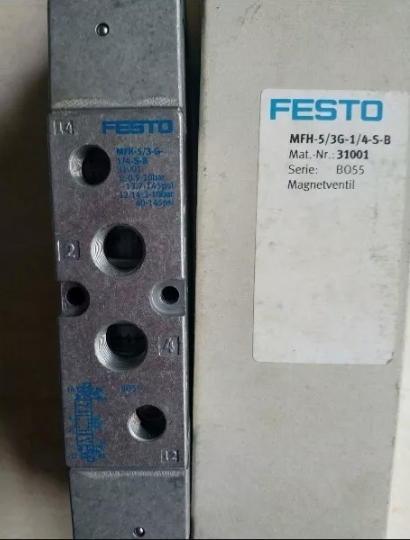

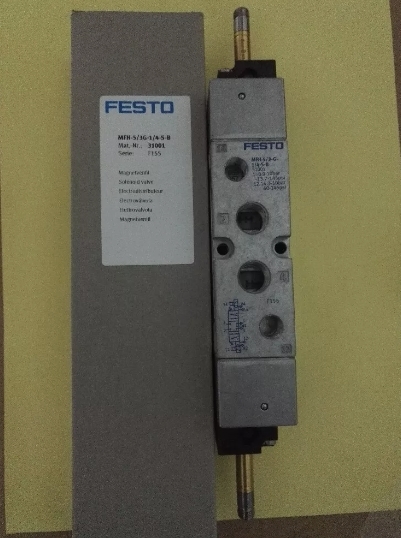

New Festo MFH-5/3G-1/4-S-B 31001 Solenoid and 21 similar items

Feature Value Valve function 5/3, closed Actuation type Electrical Width 32 mm Standard nominal flow rate 1600 l/min Pneumatic working port G1/4 Operating pressure -0.09 MPa ... 1 MPa Operating pressure -0.9 bar ... 10 bar Structural design Piston gate valve Reset method Mechanical spring Nominal width 10 mm Width dimension 33 mm Exhaust air function With flow control option Sealing principle Soft Mounting position Any Manual override Non-detenting Type of control Pilot-controlled Pilot air supply port External Flow direction Reversible Symbol 00991020 Lap Overlap Pilot pressure MPa 0.3 MPa ... 1 MPa Pilot pressure 3 bar ... 10 bar b-value 0.38 C value 6.35 l/sbar Max. switching frequency 3 Hz Switching time off 30 ms On switching time 18 ms Changeover time 30 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -40 C ... 60 C Temperature of medium -10 C ... 60 C New One Year Warranty
